Section 486 (Combination Meter): Location

WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

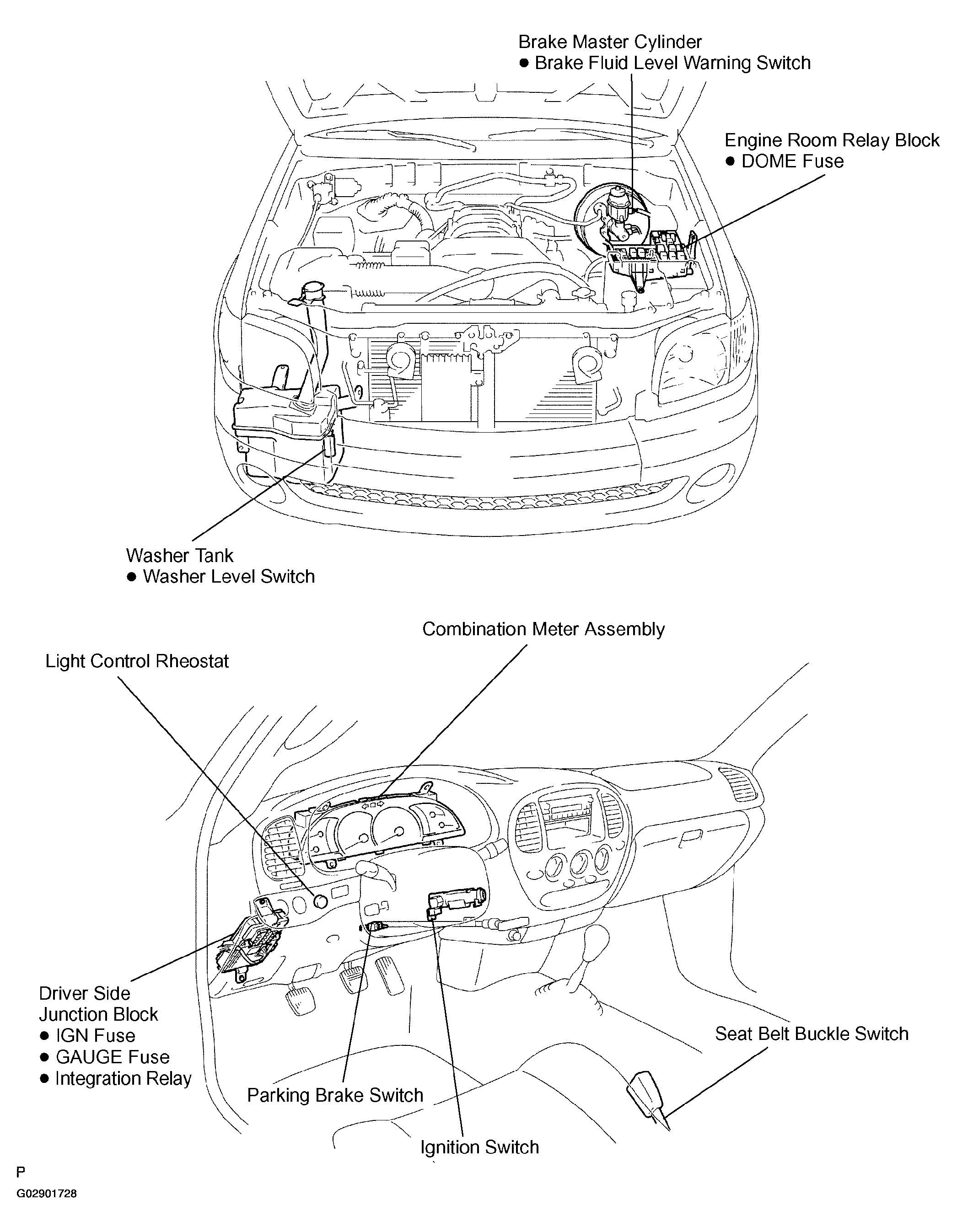

Fig 1: Identifying Combination Meter Components Location (1 Of 2)
G02901728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

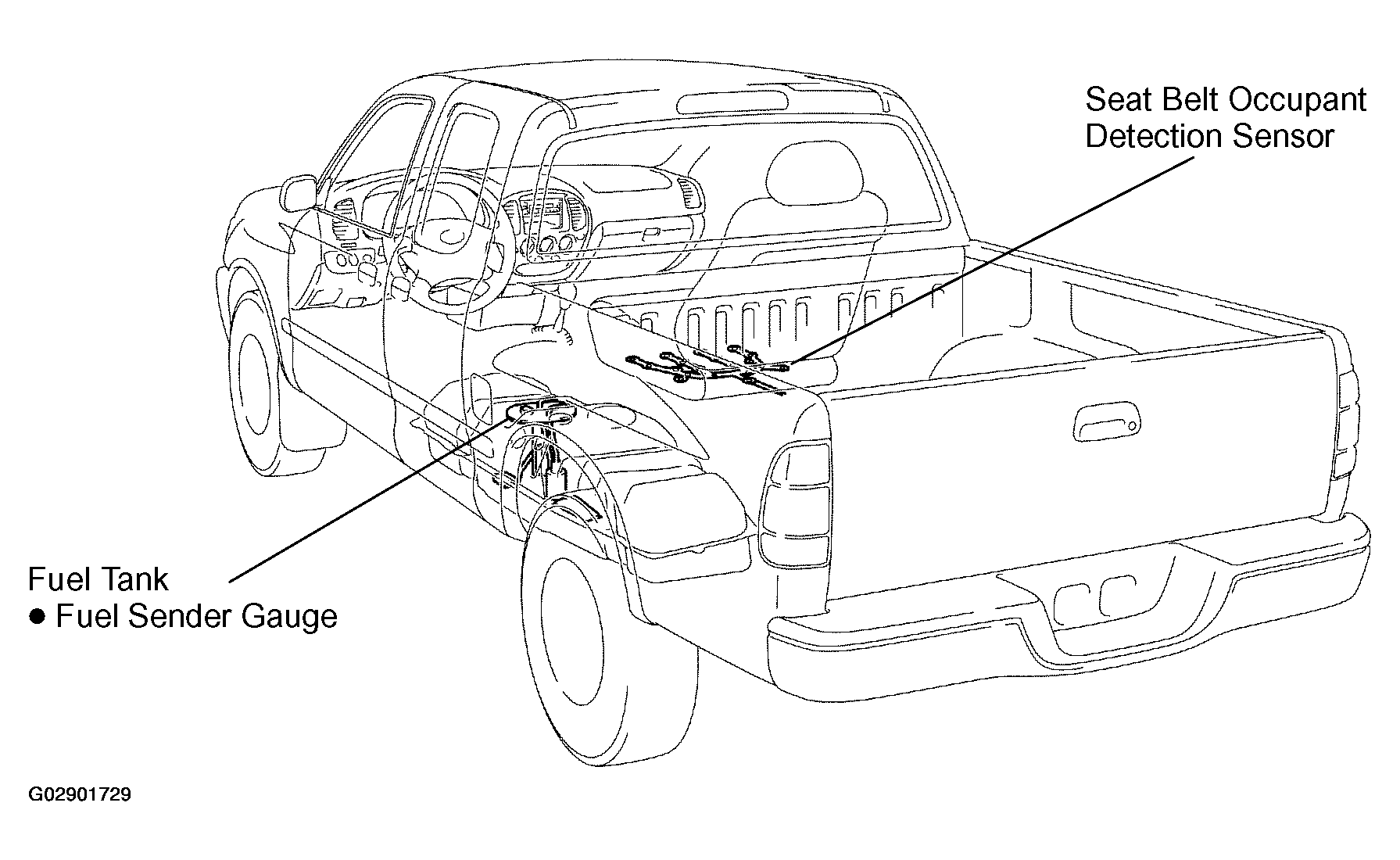

Fig 2: Identifying Combination Meter Components Location (2 Of 2)
G02901729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
