Section 513 (Navigation Receiver Assembly): Replacement

WARNING: This page is about a different car, the 2003 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: COMPONENTS: See COMPONENTS

REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See REPLACEMENT )

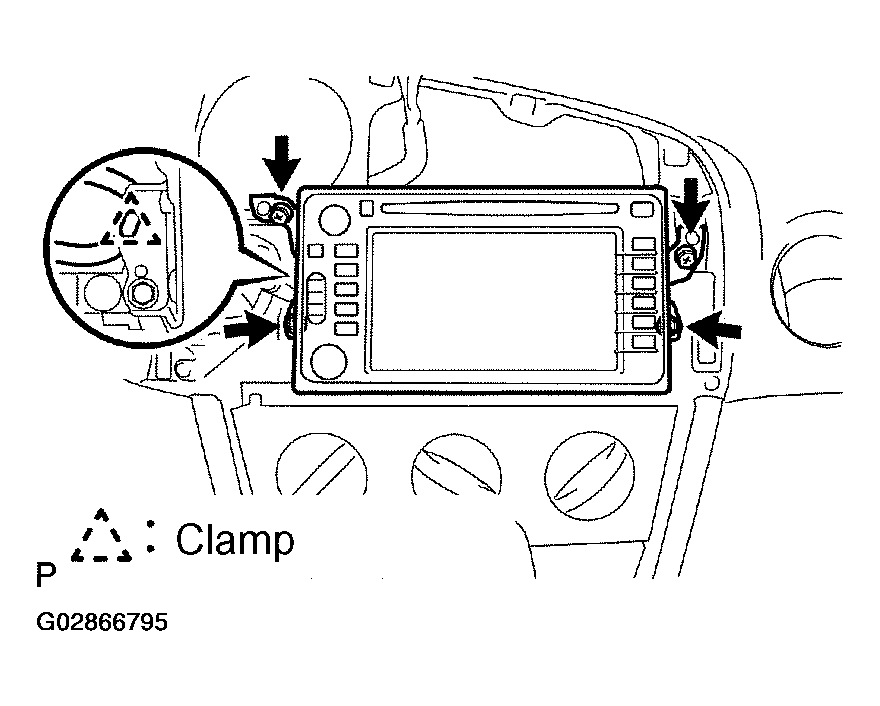

REMOVE NAVIGATION RECEIVER ASSEMBLY W/BRACKET
1. Remove the 4 screws.
2. Disconnect the clamp from the radio bracket No. 2.
3. Disconnect the connectors, then remove the navigation receiver assembly w/bracket.
Fig 1: Removing Navigation Receiver Assembly W/Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

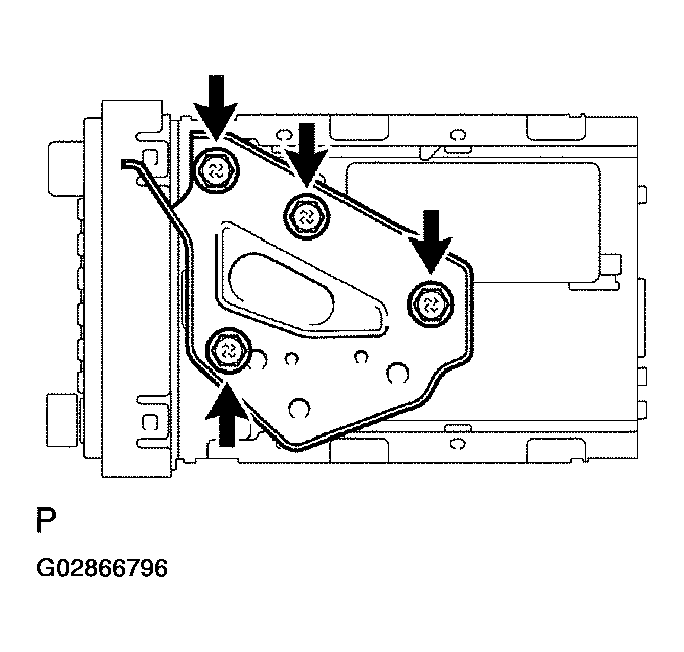

REMOVE RADIO BRACKET NO. 1
1. Remove the 4 screws and radio bracket No. 1.

  Fig 2: Removing Screws & Radio Bracket No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

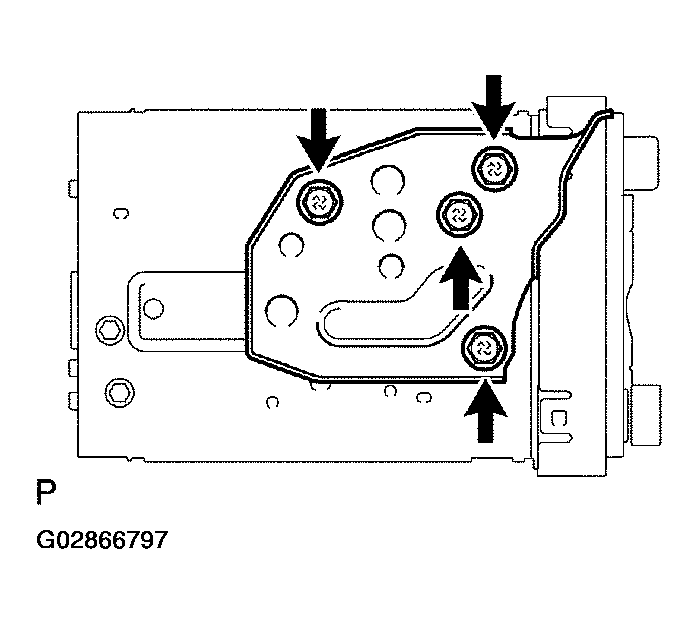

REMOVE RADIO BRACKET NO. 2
1. Remove the 4 screws and radio bracket No. 2.
Fig 3: Removing Screws & Radio Bracket No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NAVIGATION RECEIVER ASSY
