Heater Control Assembly: Components

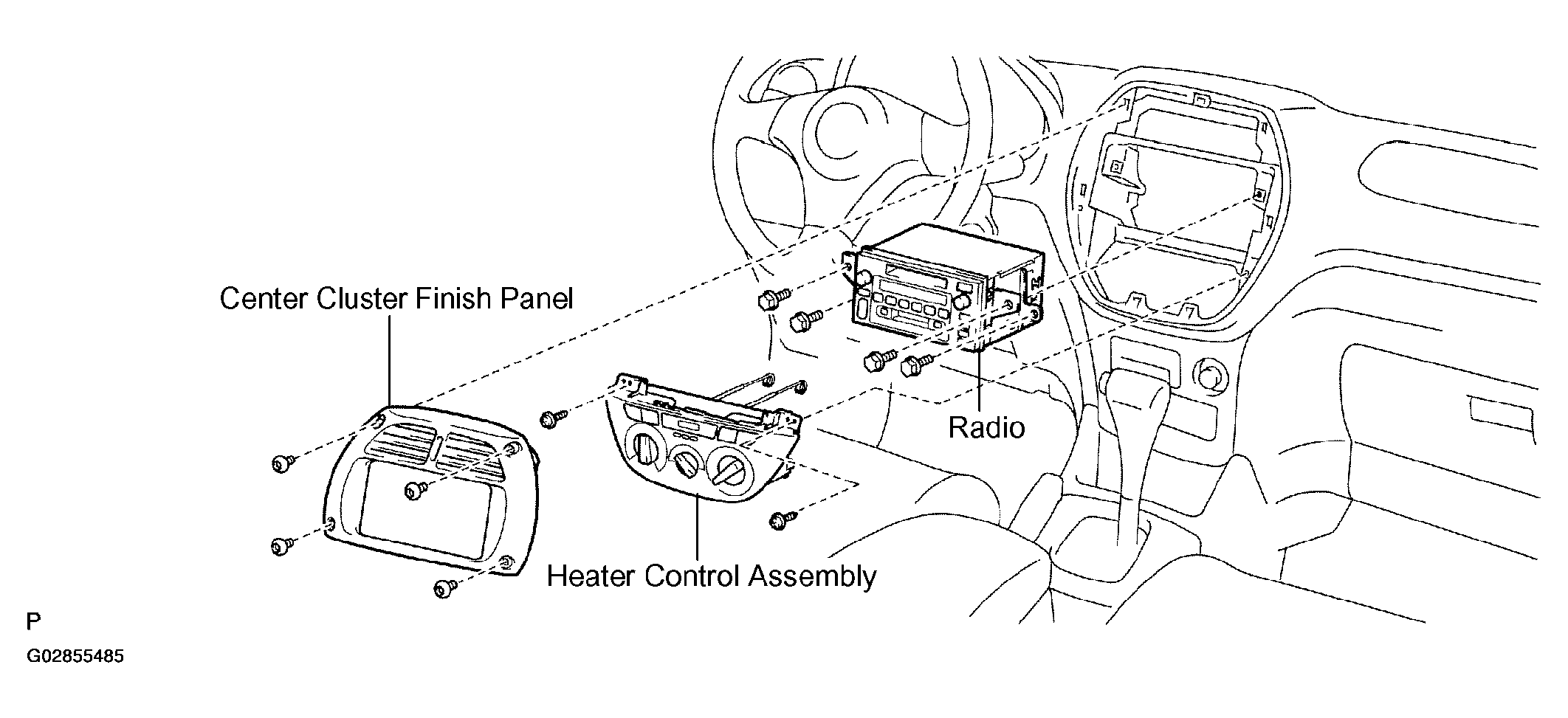

Fig 1: Locating Heater Control Assembly Components
G02855485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

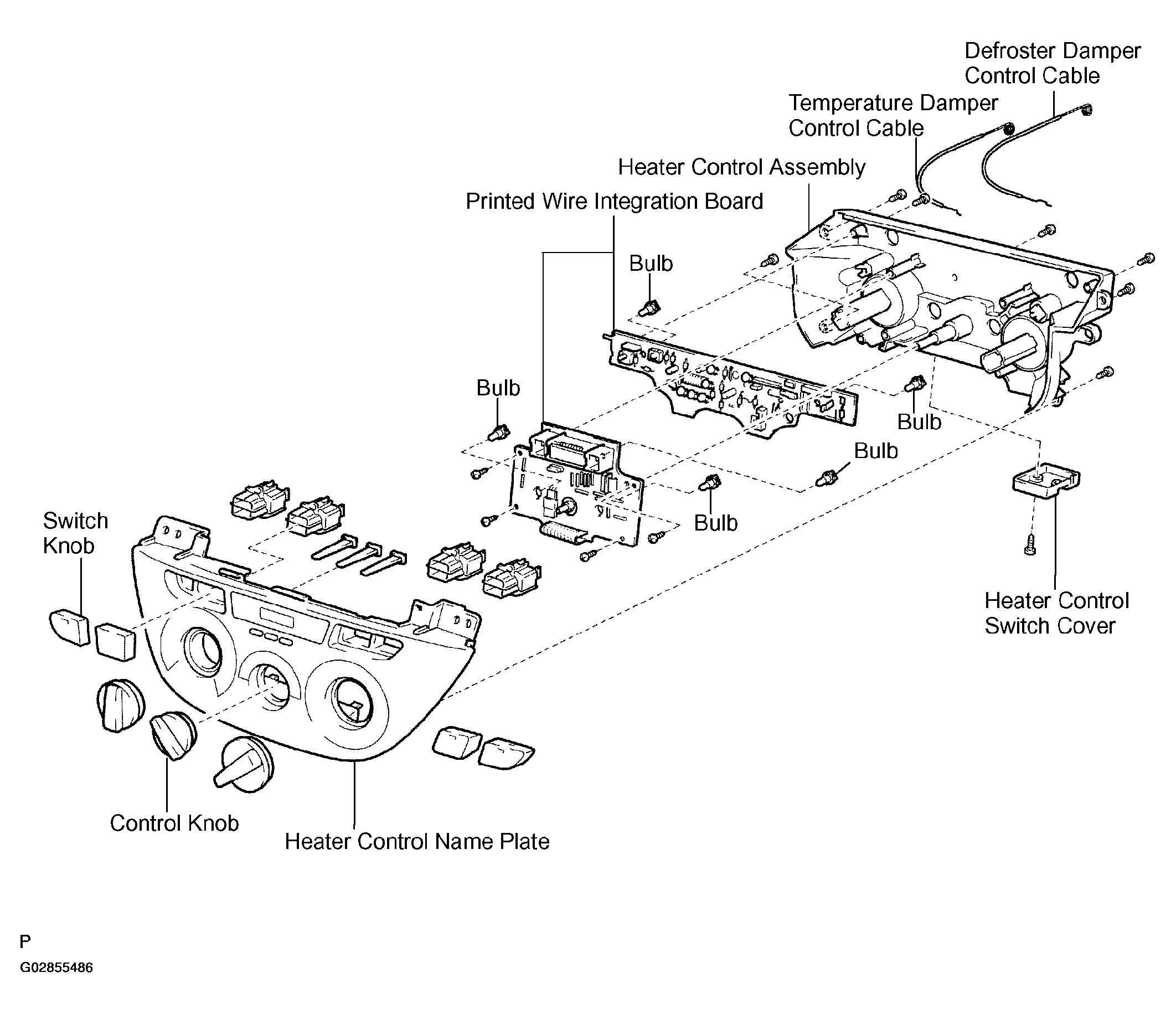

Fig 2: Exploded View Of Heater Control Assembly
G02855486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
