Heater Control Assembly: Disassembly

  1. REMOVE HEATER CONTROL CABLES
    1. Pull out the outer cables.
      2. Fig 1: Disconnecting Outer Cable
      G02855491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the inner cables.
  2. REMOVE HEATER CONTROL NAME PLATE
    1. Remove the 3 knobs.
    2. Remove the 7 screws.

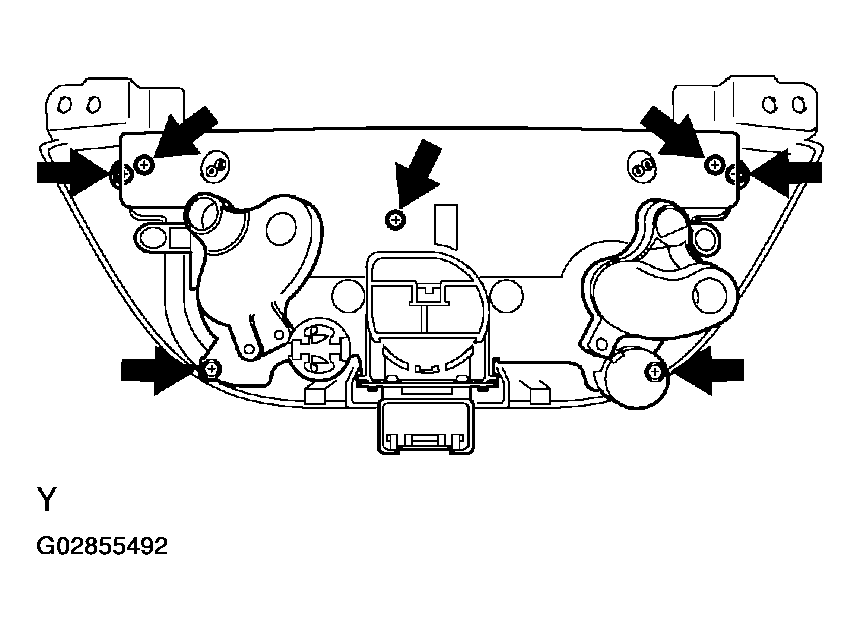

      3. Fig 2: Removing Screws
      G02855492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the heater control name plate and printed wire integration board from the heater control assembly.
  3. REMOVE CLOCK INTEGRATION BOARD
    1. Remove the 2 screws and heater control switch cover.
      Fig 3: Removing Heater Control Switch Cover
      G02855493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws and clock plate.
    3. Remove the connector.
      Fig 4: Removing Clock Plate
      G02855494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
