Heater Control Assembly: Reassembly

  1. INSTALL CLOCK INTEGRATION BOARD
    1. Install the clock plate with the 4 screws.
      Fig 1: Installing Clock Plate
      G02855506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the heater control switch cover with the 2 screws.
      3. Fig 2: Installing Heater Control Switch Cover
      G02855507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HEATER CONTROL NAME PLATE
    1. Install the 4 switch knobs to the heater control name plate.
    2. Install the 3 knobs.
    3. Install the heater control name plate and printed wire integration board with the 7 screws.

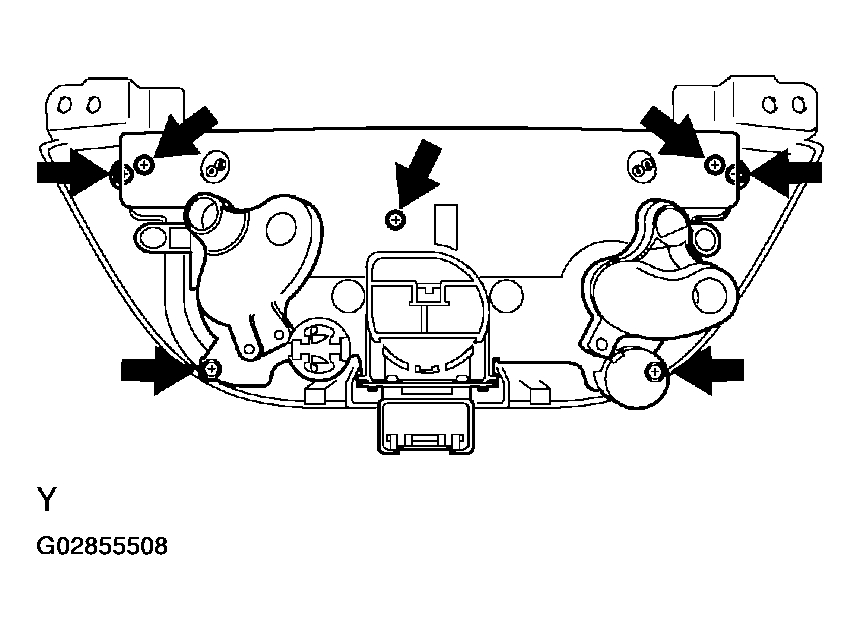

      Fig 3: Installing Heater Control Name Plate
      G02855508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL HEATER CONTROL CABLES
    1. Install the inner cables as shown in the illustration.
      2. Fig 4: Installing Cables
      G02855509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the outer cables.
