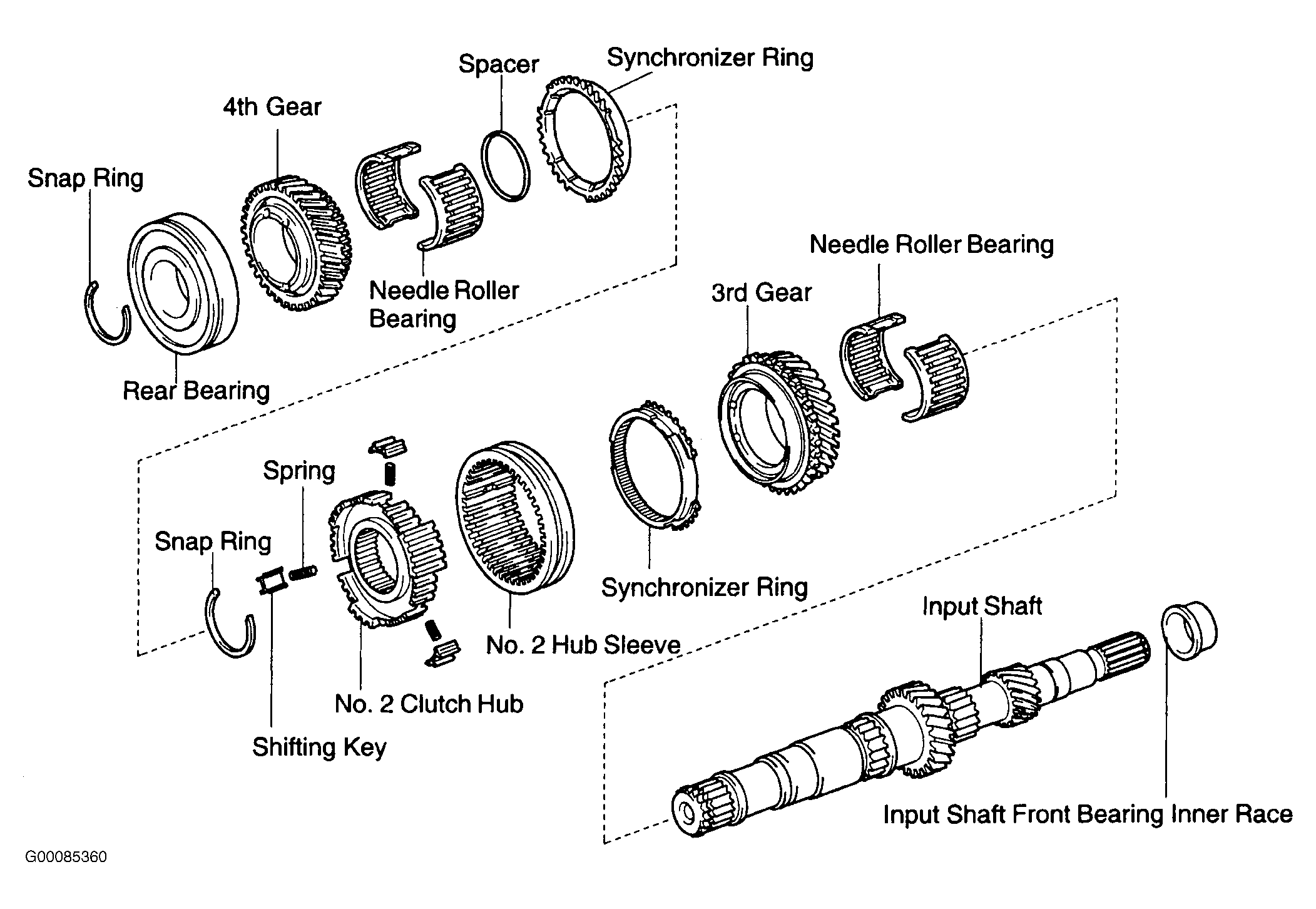

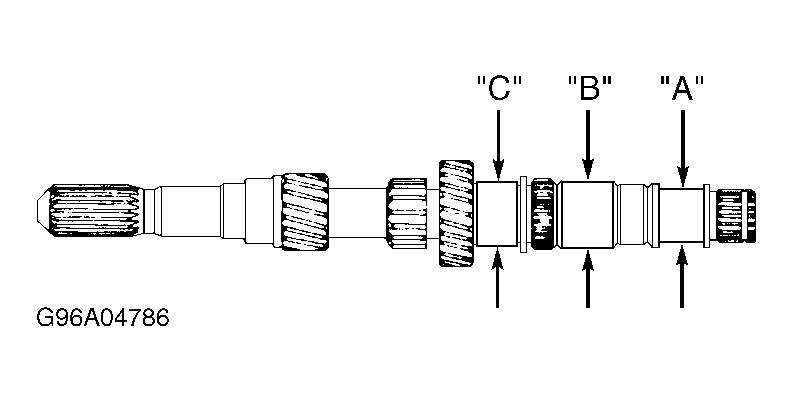

Input Shaft (MAINSHAFT): Reassembly

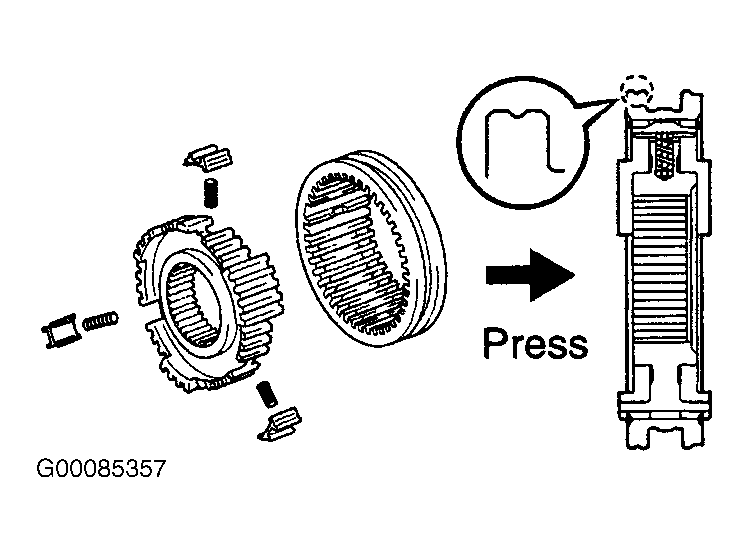

- Install clutch hub and shifting keys to No. 2 hub sleeve. See Fig 6. Ensure key spring end-gaps are not in-line.
- Apply multipurpose grease to needle bearings. Install bearing in 3rd gear. Place synchronizer ring on 3rd gear, and align ring slots with shifting keys. Using a press, install 3rd gear and No. 2 hub sleeve. See Fig 3.

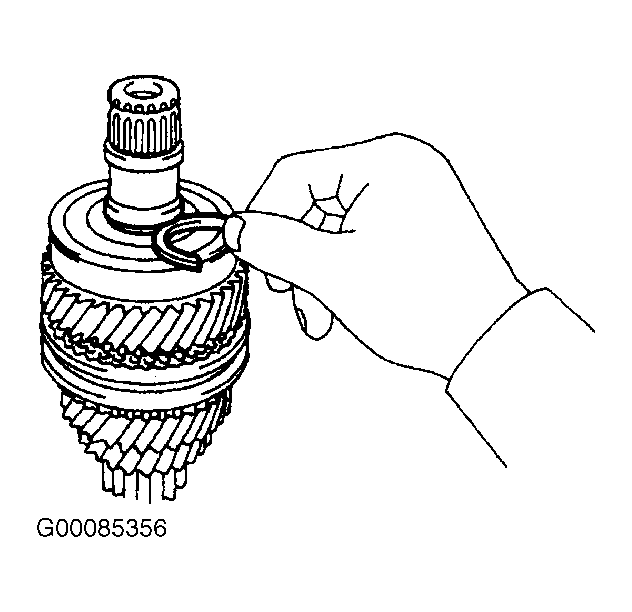

- Select thickest snap ring that fits into groove, which will allow minimum axial play (thrust clearance). See Fig 7. See SNAP RING APPLICATION CHART NO. 1 table. Install selected snap ring.

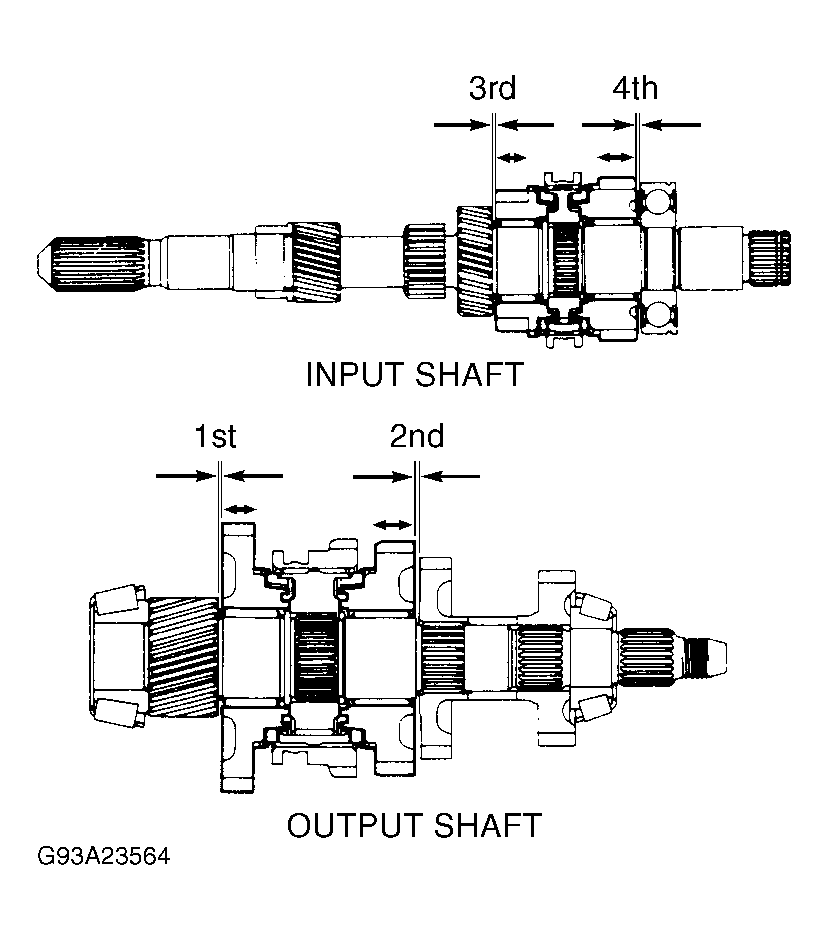

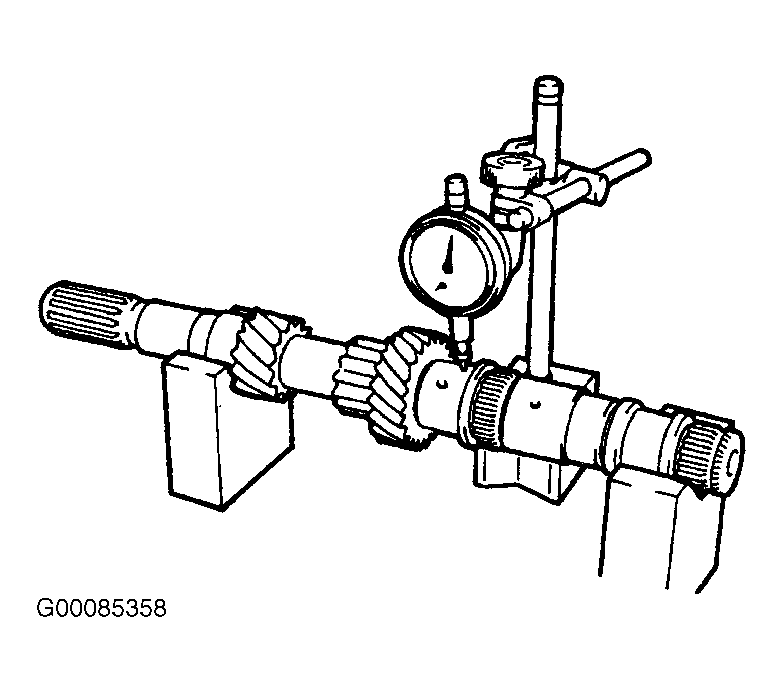

- Check 3rd gear thrust clearance. Standard clearance is .004-.014" (.10-.35 mm). Install spacer. Place synchronizer ring on 4th gear and align ring slots with shifting keys. Install 4th gear. Using a press, install on ball bearing. See Fig 3.

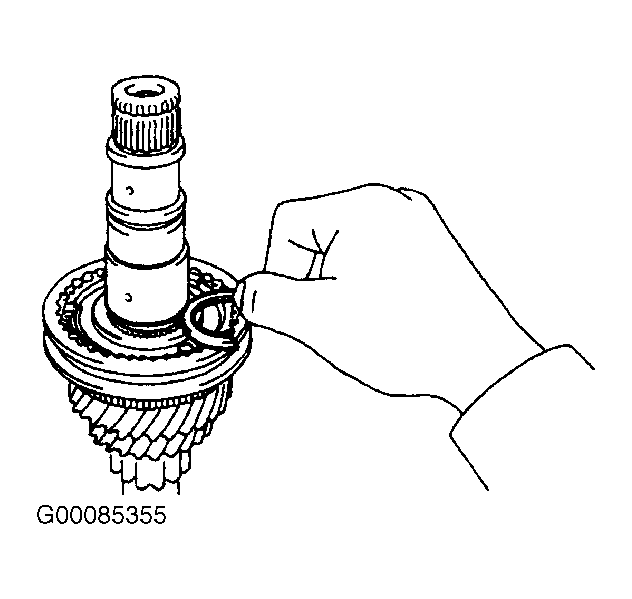

- Select thickest snap ring that fits into groove which will allow minimum axial play thrust clearance. See Fig 8. See SNAP RING APPLICATION CHART NO. 2 table. Install selected snap ring.

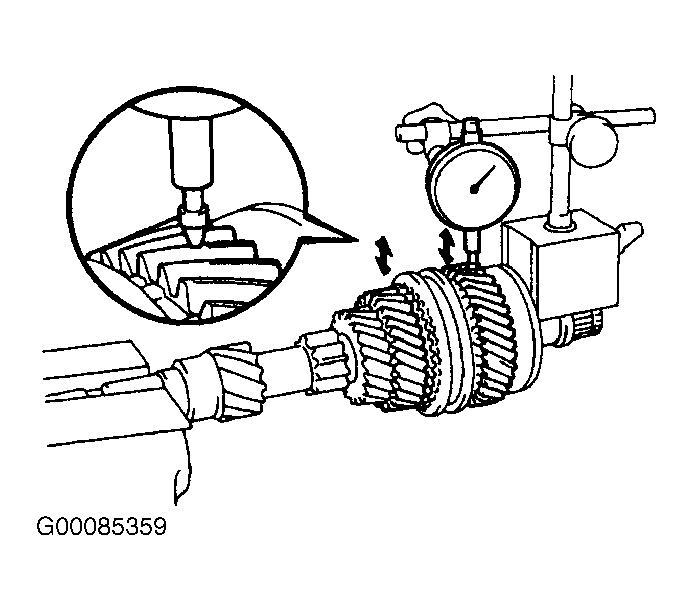

- Check 4th gear thrust clearance. Standard clearance is .004-.022" (.10-.55 mm). Using a press, install input shaft front bearing inner race.
SNAP RING APPLICATION CHART NO. 1
| Stamped Letter | Thickness - In. (mm) |
|---|---|
| H | .091 (2.30) |
| J | .093 (2.35) |
| K | .095 (2.40) |
| L | .097 (2.45) |
| M | .098 (2.50) |
| N | .100 (2.55) |
| P | .102 (2.60) |
SNAP RING APPLICATION CHART NO. 2
| Stamped Number | Thickness - In. (mm) |
|---|---|
| 1 | .093 (2.35) |
| 2 | .095 (2.40) |
| 3 | .097 (2.45) |
| 4 | .098 (2.50) |
| 5 | .100 (2.55) |
| 6 | .102 (2.60) |
| 7 | .104 (2.65) |
| 8 | .106 (2.70) |
