Cylinder Block: Replacement

1. Using SST and a press, press out the bushing.
   1. SST 09222-30010
   Fig 1: Pressing Out The Bushing
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the oil hoses of a new bushing and the connecting rod.
   Fig 2: Identifying Oil Hole

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in the bushing.
   1. SST 09222-30010
4. Using a pin hole grinder, hone the bushing to obtain the standard specified clearance (See INSPECTION ) between the bushing and piston pin.

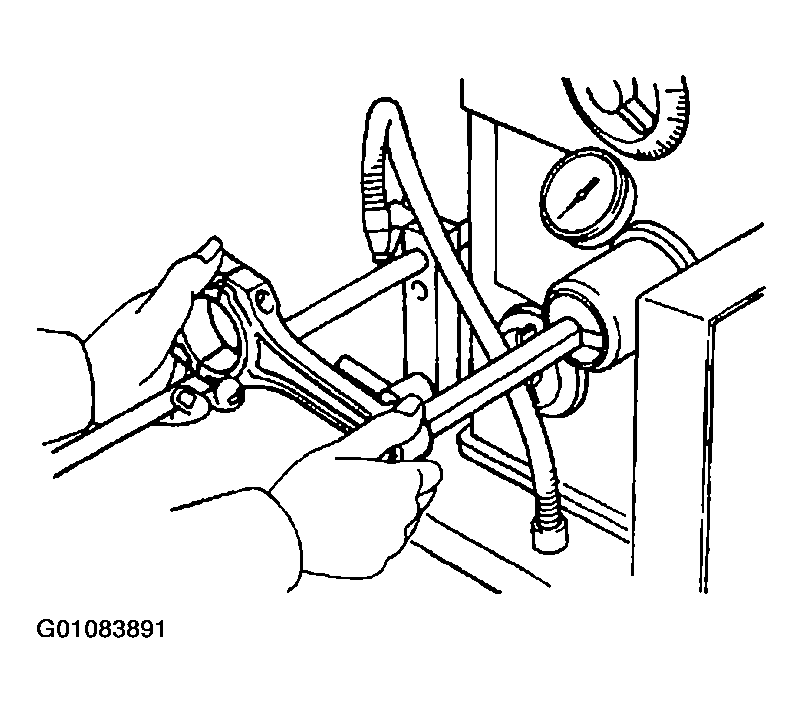

   Fig 3: Displaying Pin Hole Grinder

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check the piston pin fit at normal room temperature. Coat the piston pin with engine oil, and push it into the connecting rod with your thumb.
   Fig 4: Checking Piston Pin

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

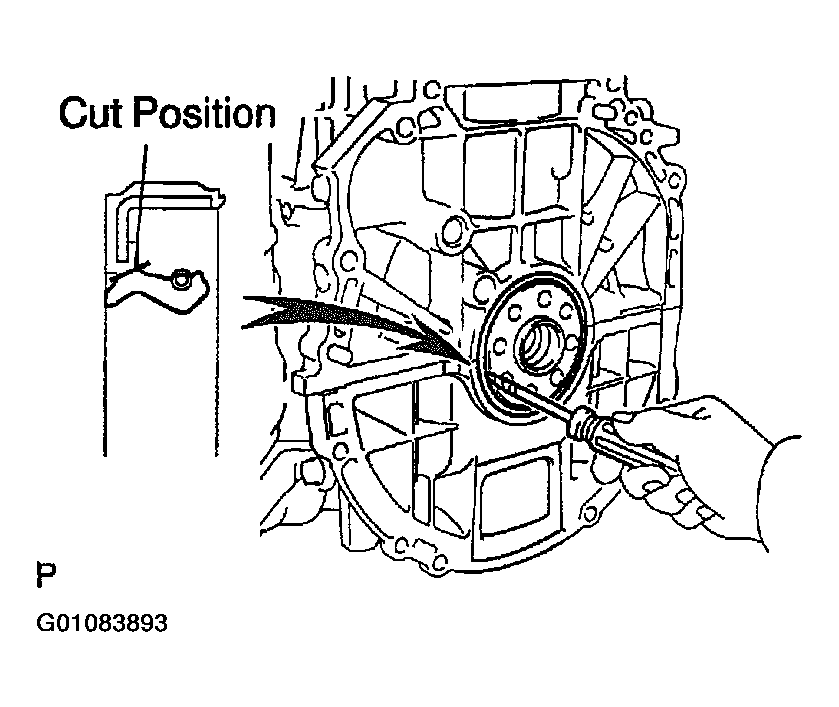

Fig 5: Replacing Crankshaft Rear Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the rear oil seal is installed to the cylinder block.

1. Using a knife, cut off the oil seal lip.
2. Using a screwdriver, pry out the oil seal.
   NOTE: Be careful not to damage the crankshaft. Tape the screwdriver tip.
3. Apply MP grease to a new oil seal lip.
4. Using SST and a hammer, tap in the oil seal until its surface is flush with the oil seal retainer edge.
   1. SST 09223-15030, 09950-70010 (09951-07100)

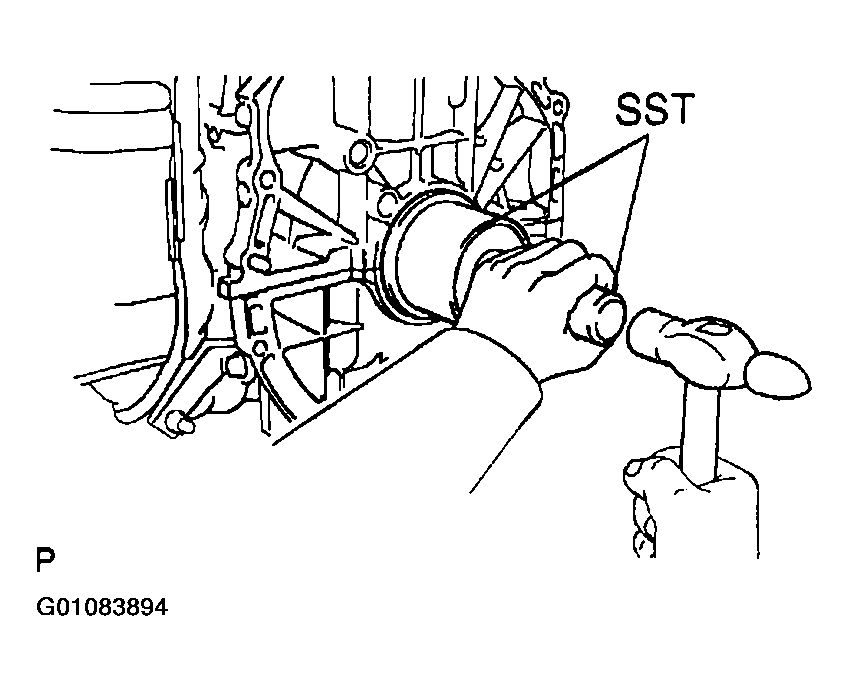

   Fig 6: Tapping In Oil Seal
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
