Confirmation Engine Racing Pattern
For confirmation engine racing pattern, see
Fig 1
.

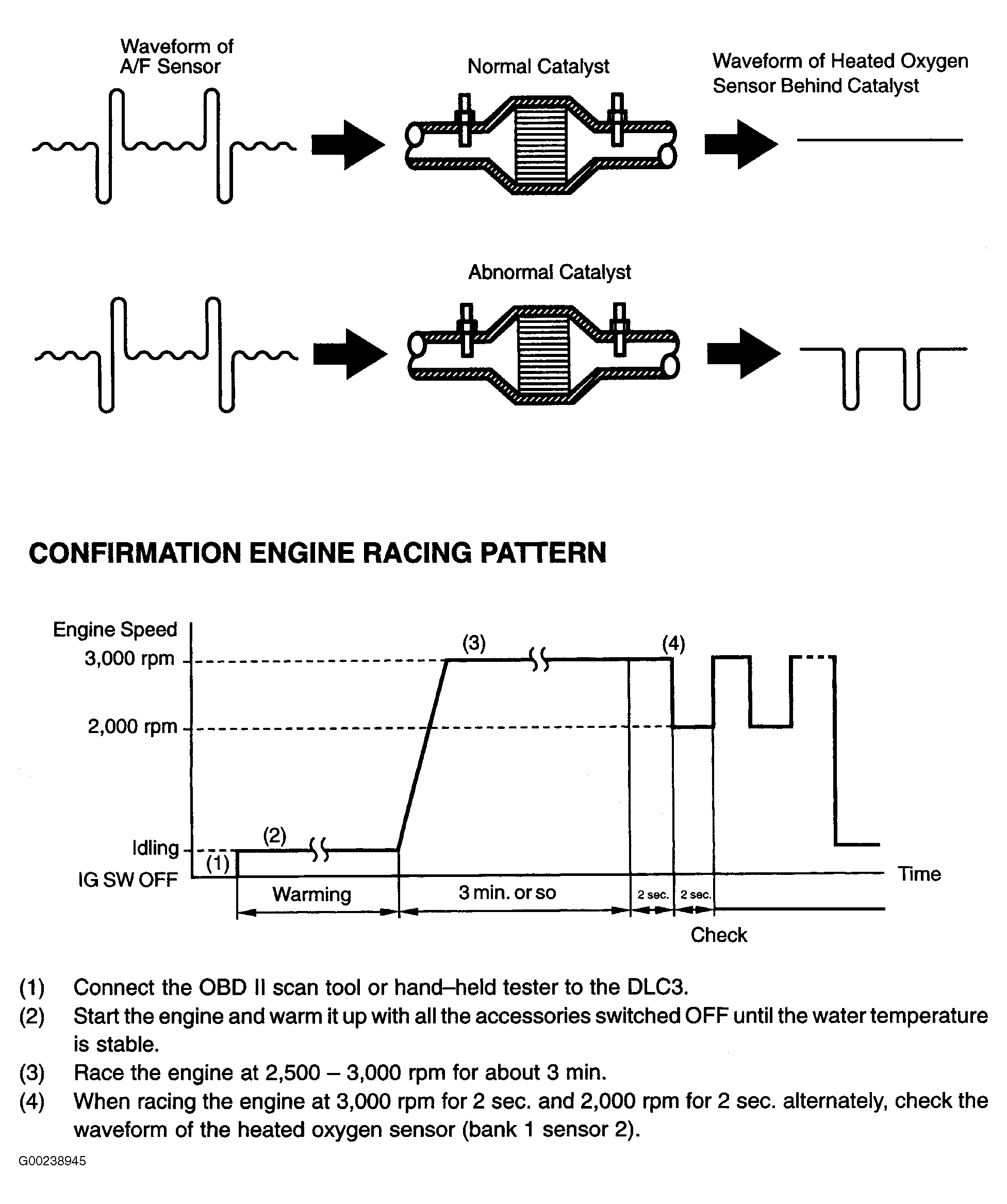

Fig 1: DTC P0420 Waveform Patterns & Confirmation Engine Racing Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
