Body Clips: Replacement

The removal and installation methods of typical clips used in body parts are shown in the table below.

NOTE: If the clip is damaged during the operation, always replace it with a new clip.

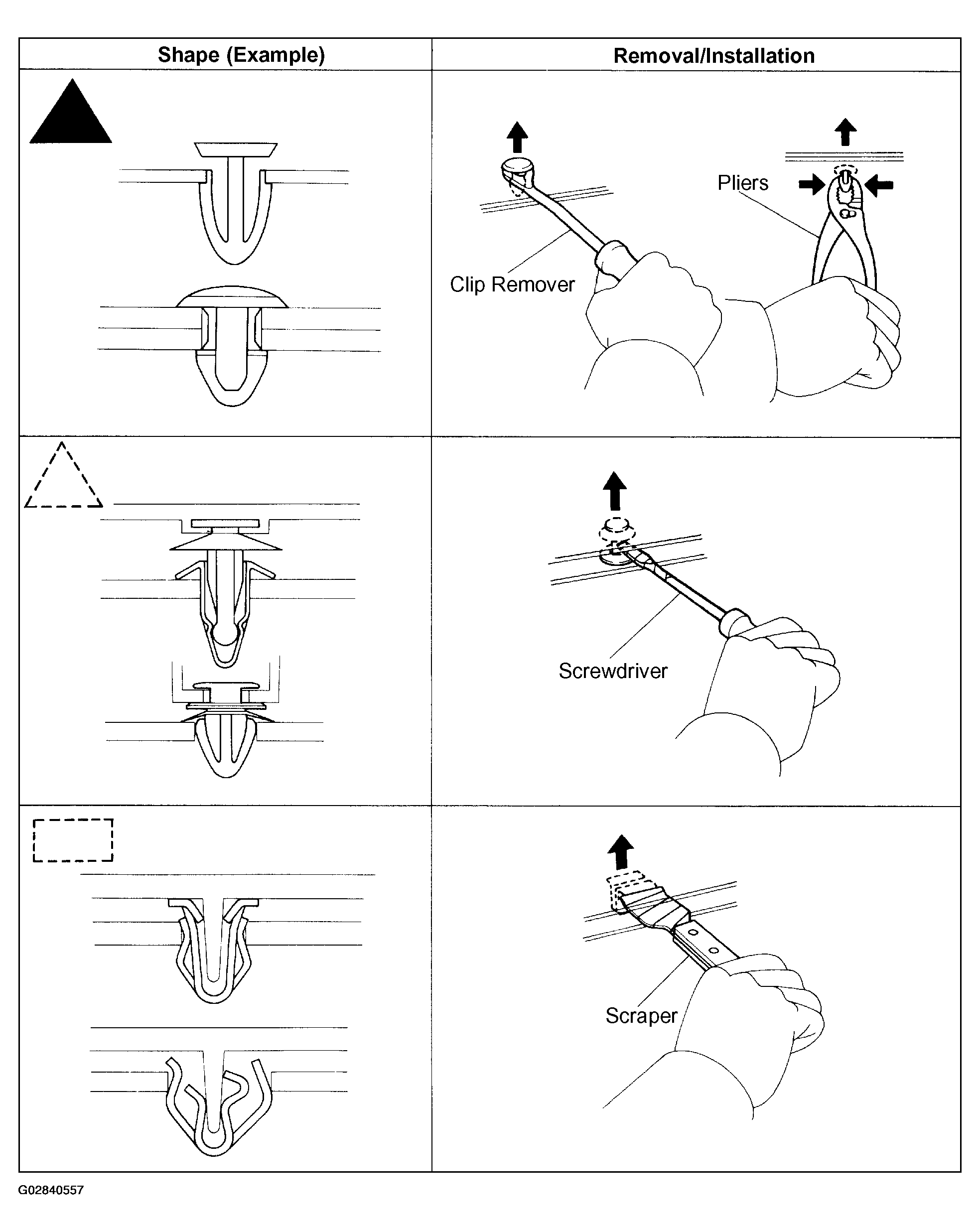

Fig 1: View Of Clips (1 Of 2)

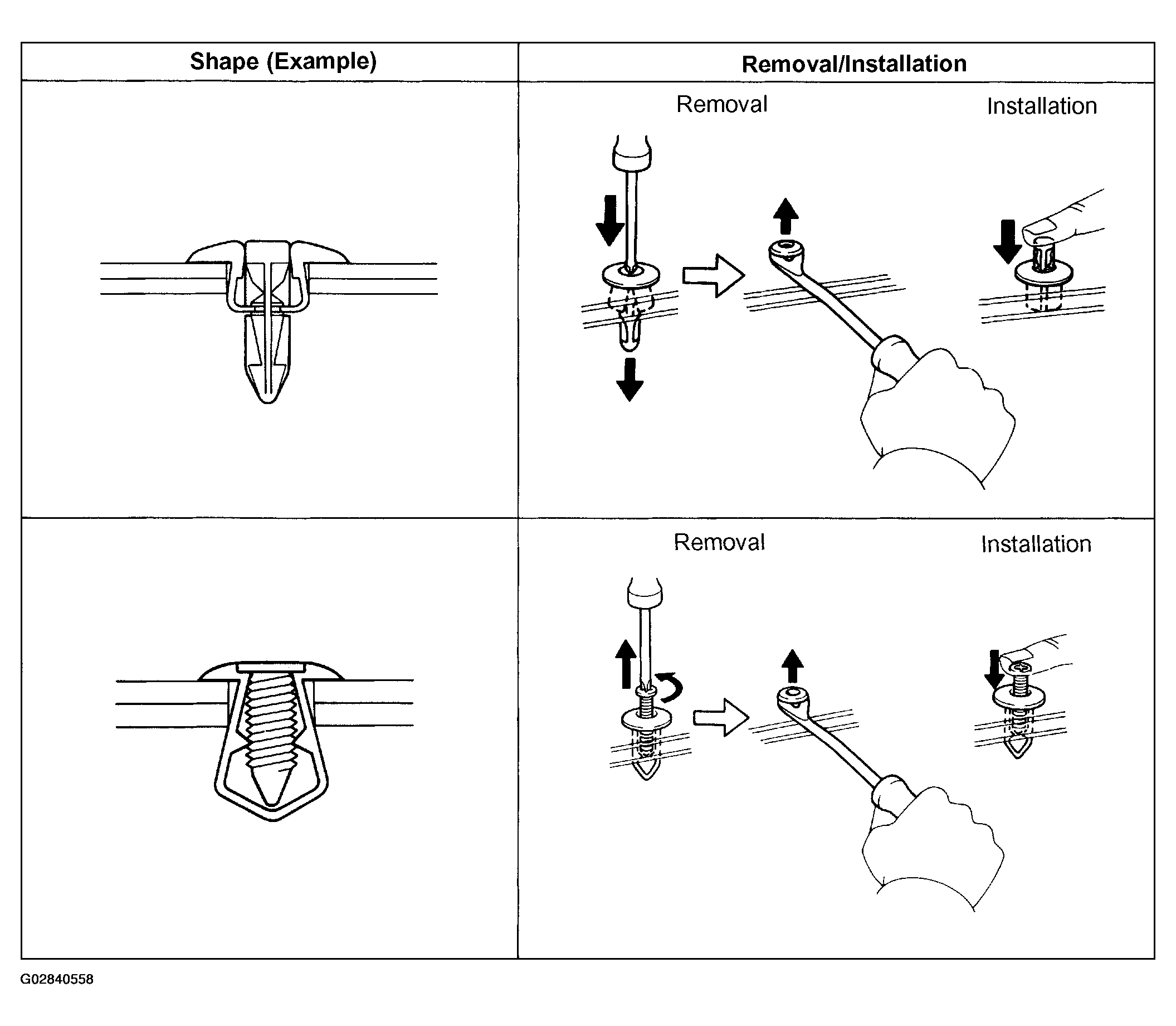

Fig 2: View Of Clips (2 Of 2)
