Combination Meter: Circuit

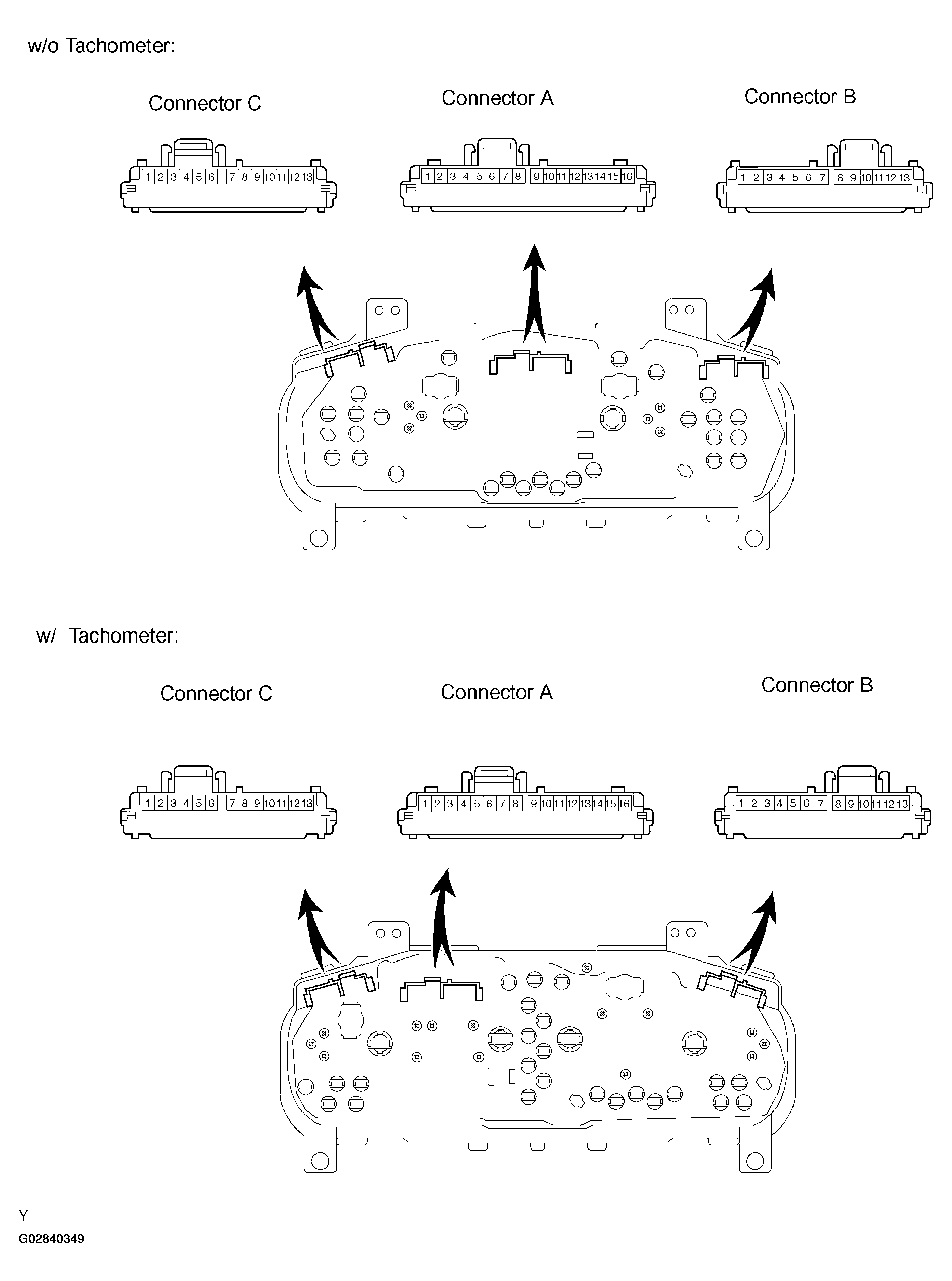

Fig 1: Identifying Connector Terminal Combination Meter
G02840349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

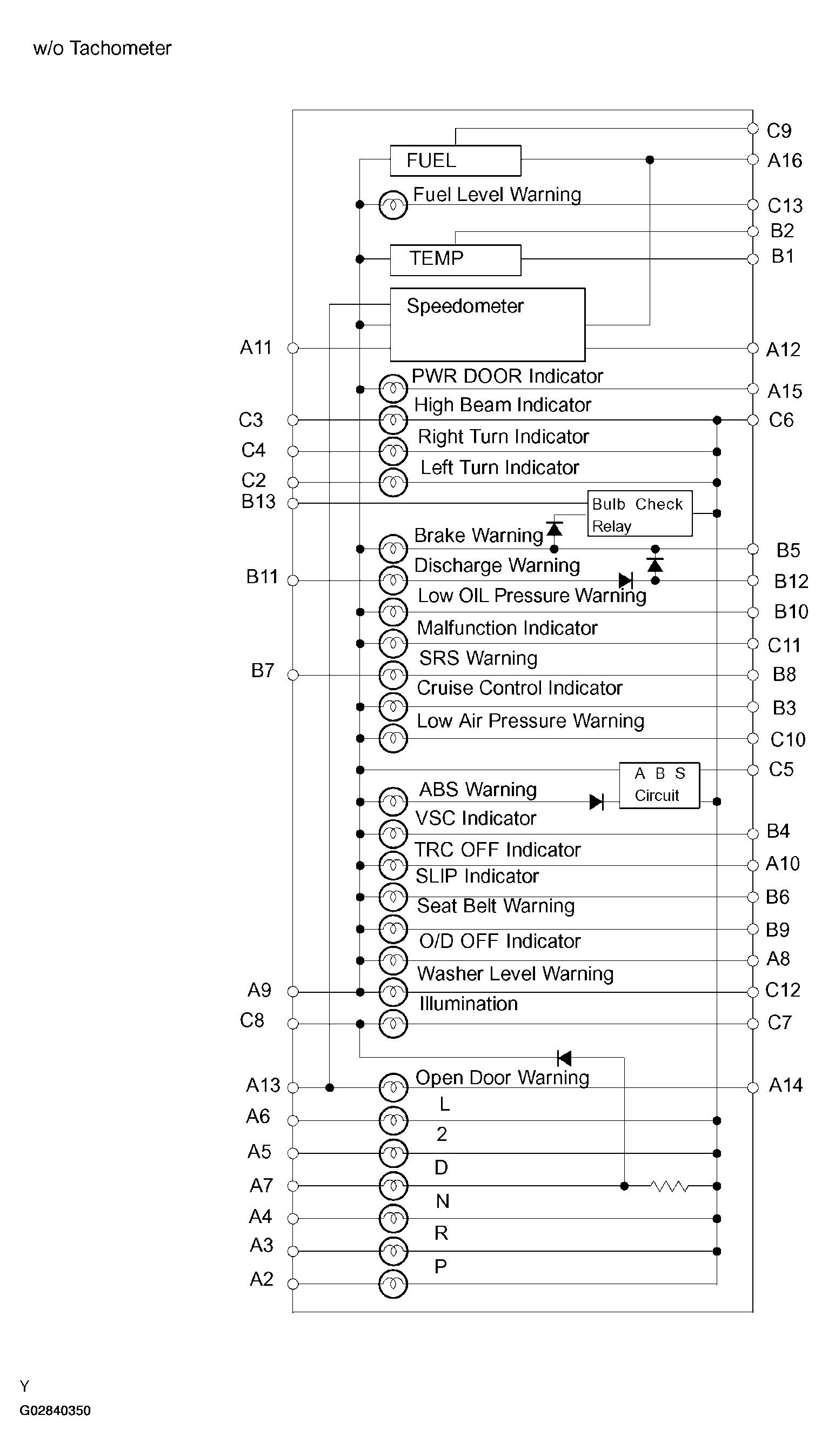

Fig 2: Combination Meter (W/O Tachometer) Circuit Diagram
G02840350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

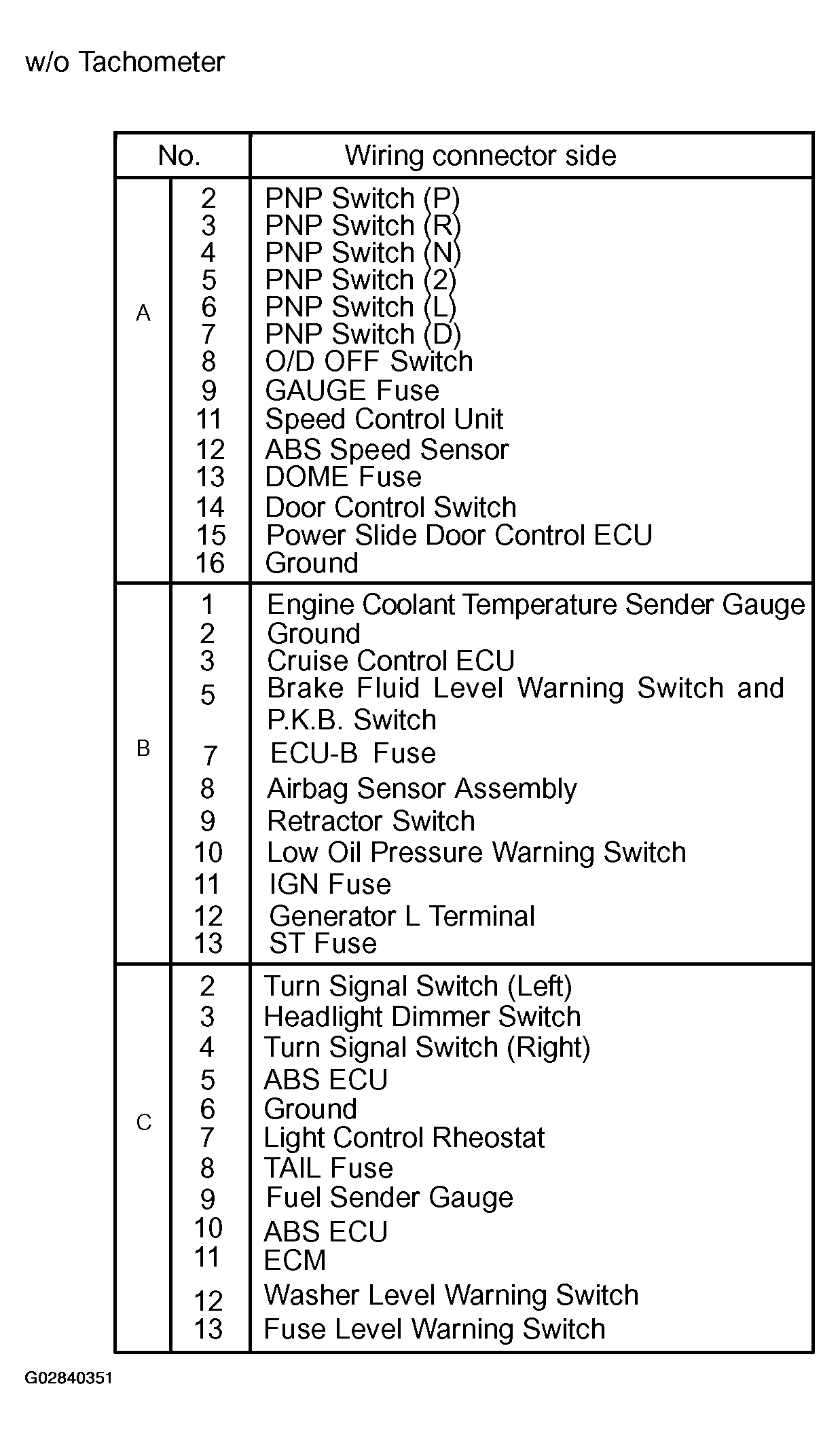

Fig 3: Connector Terminals Table (W/O Tachometer)
G02840351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

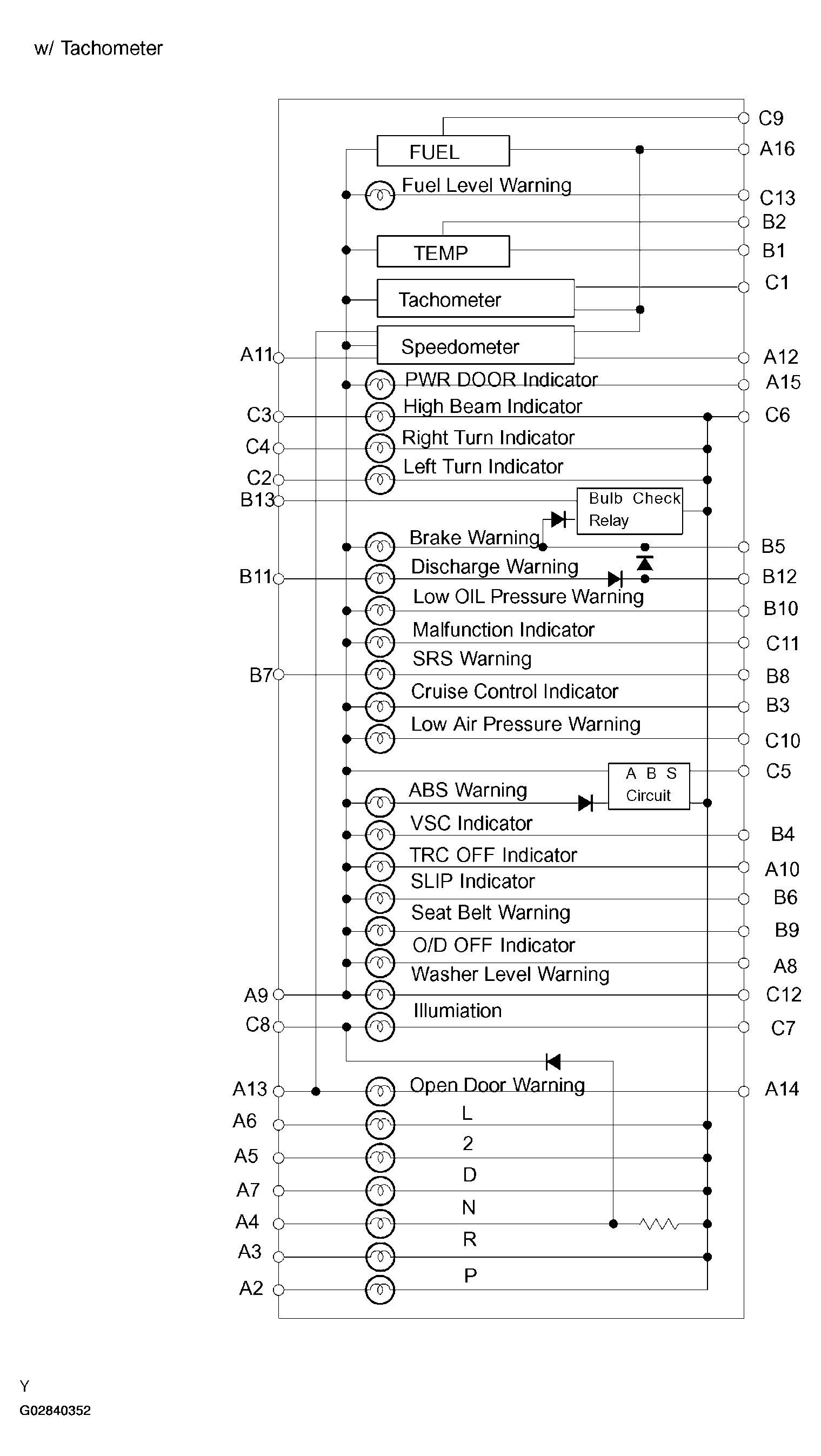

Fig 4: Combination Meter (W/ Tachometer) Circuit Diagram
G02840352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

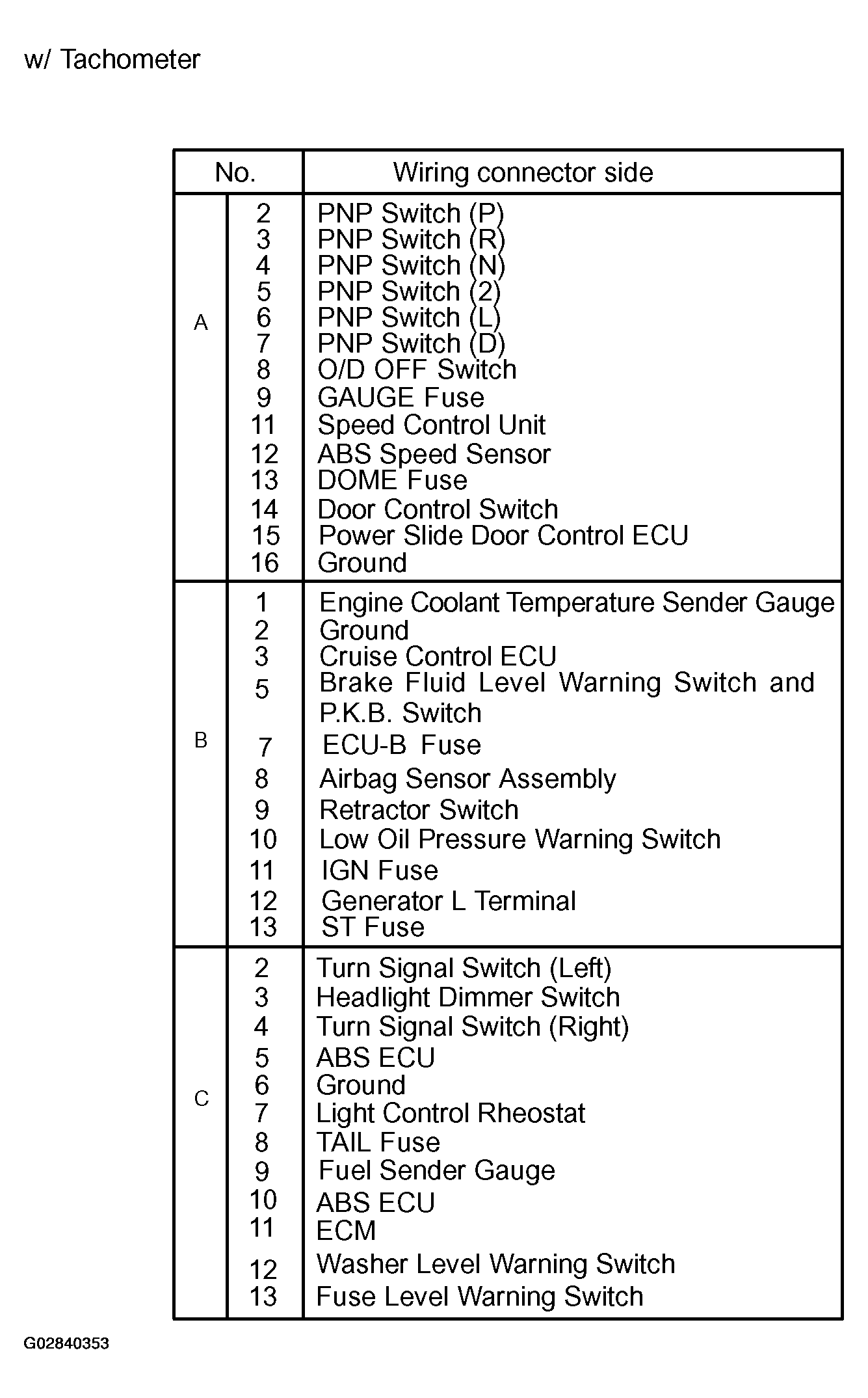

Fig 5: Connector Terminals Table (W/ Tachometer)
G02840353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
