Power Window Control System

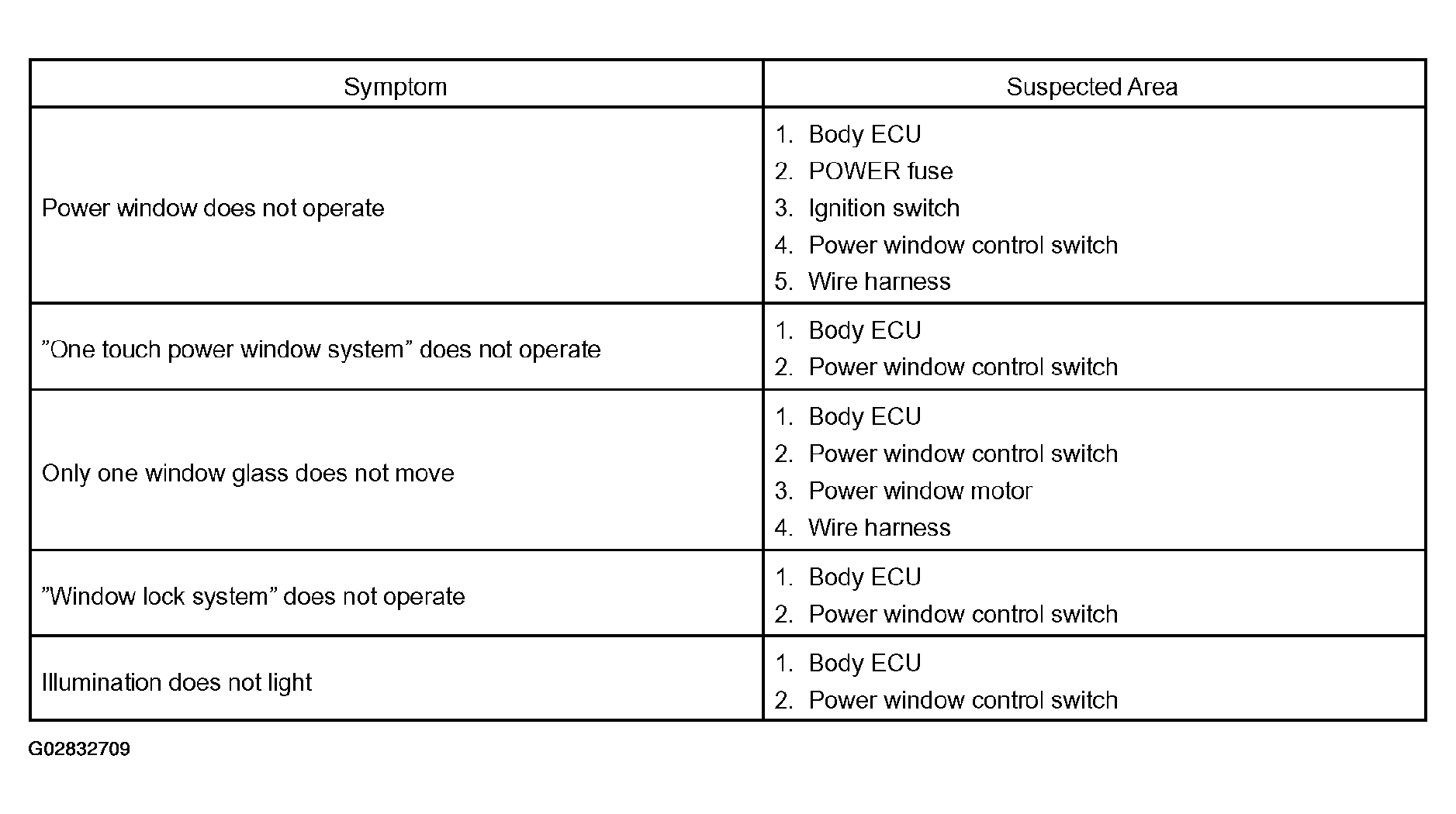

Fig 1: Symptoms Chart - Power Window Control System
G02832709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
