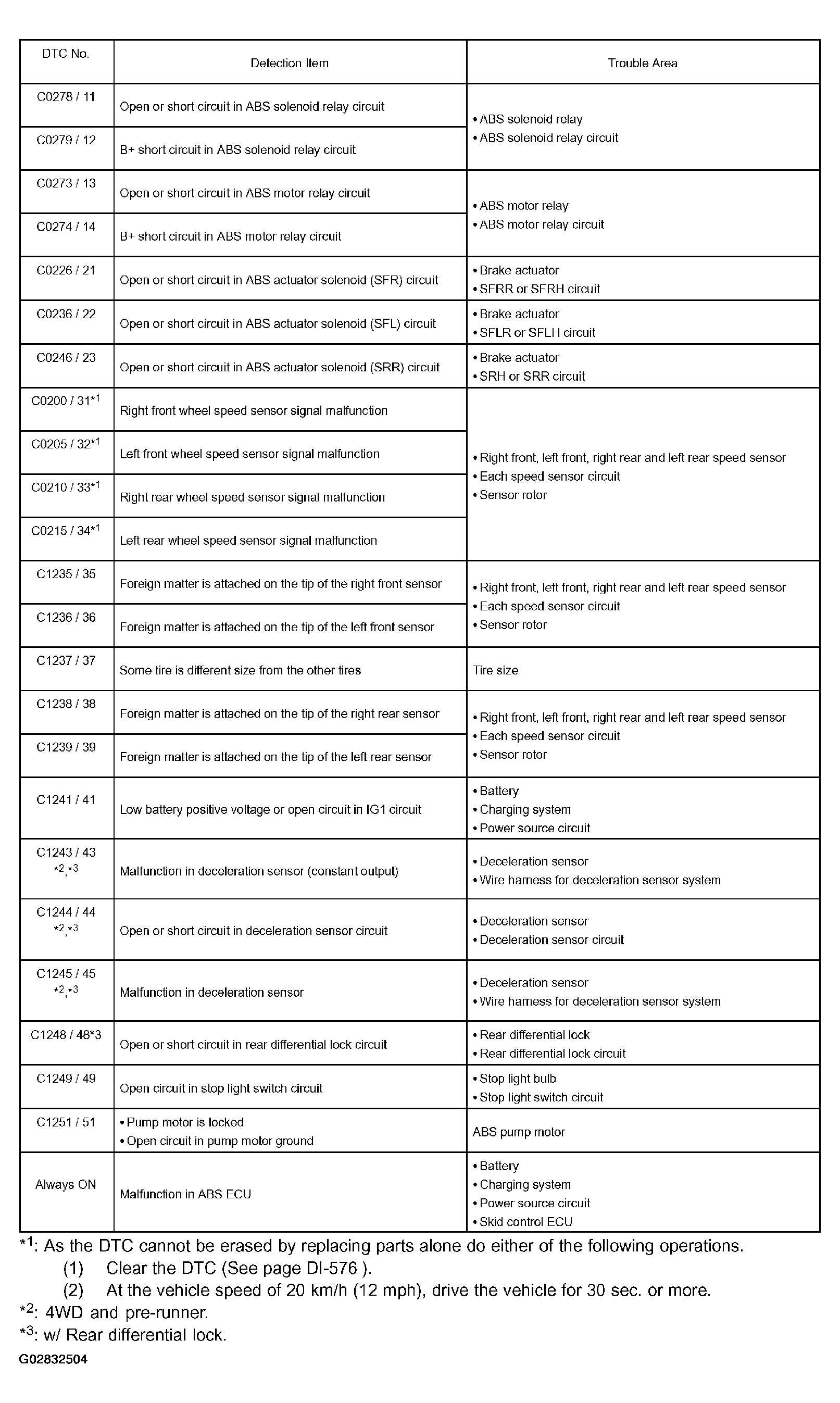

Diagnostic Trouble Code Chart
CAUTION:
When removing the part, turn the ignition switch OFF.
NOTE:
- Using SST 09843-18020 or 09843-18040, connect the terminals Tc and CG of DLC3, and remove the short pin.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, go to procedure for respective "DTC No." in the DTC chart
