Engine Control System Self Diagnostics - V6
>>
Diagnostic Tests
>>
DTC P0442: EVAP Emission Control System Leak Detected (Small Leak) & DTC P0456: EVAP Emission Control System Leak Detected (Very Small Leak)
>>
Confirmation Readiness Test
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Confirmation Readiness Test
See
Fig 1
&
Fig 2
.

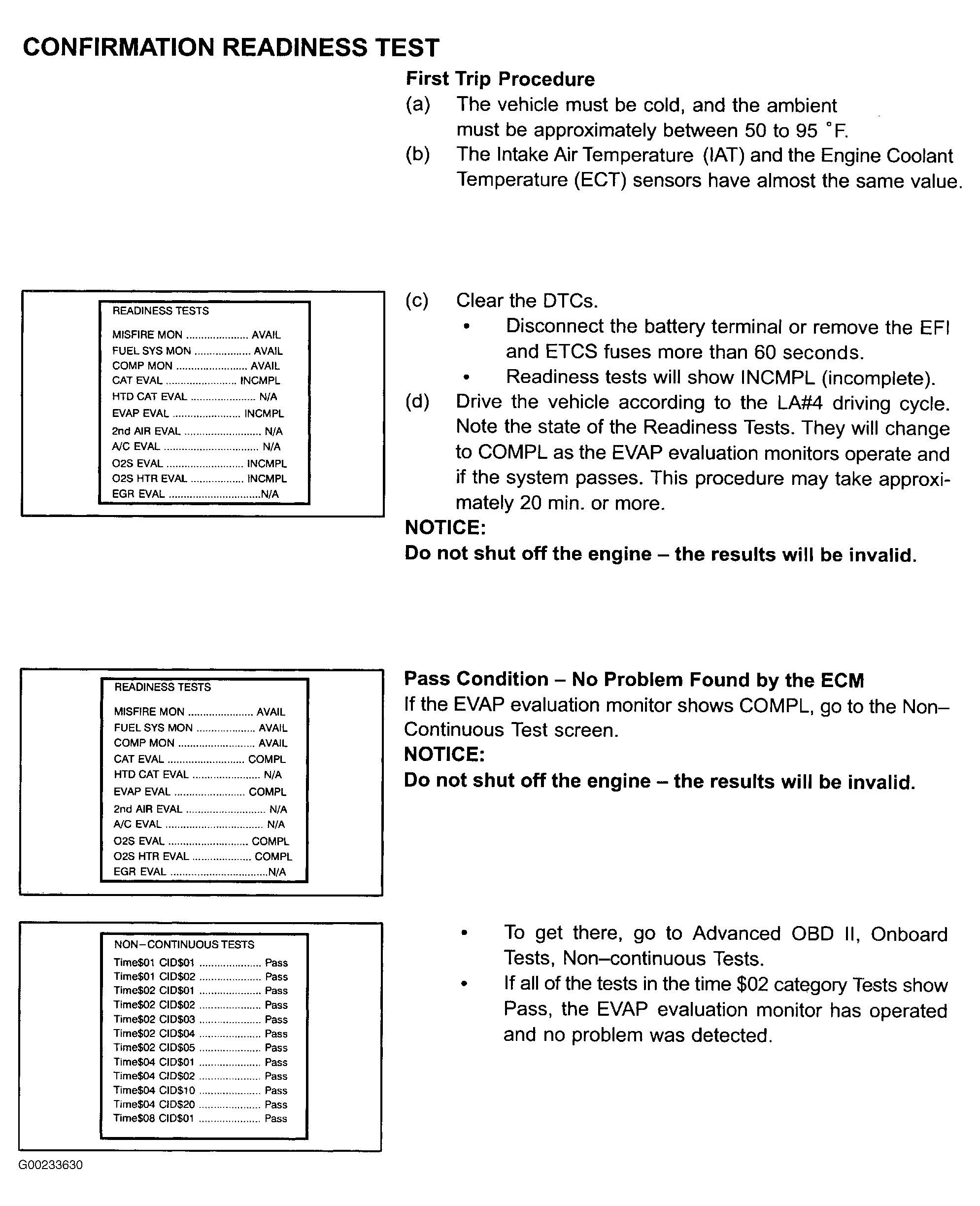

Fig 1: Confirmation Readiness Test Procedure (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

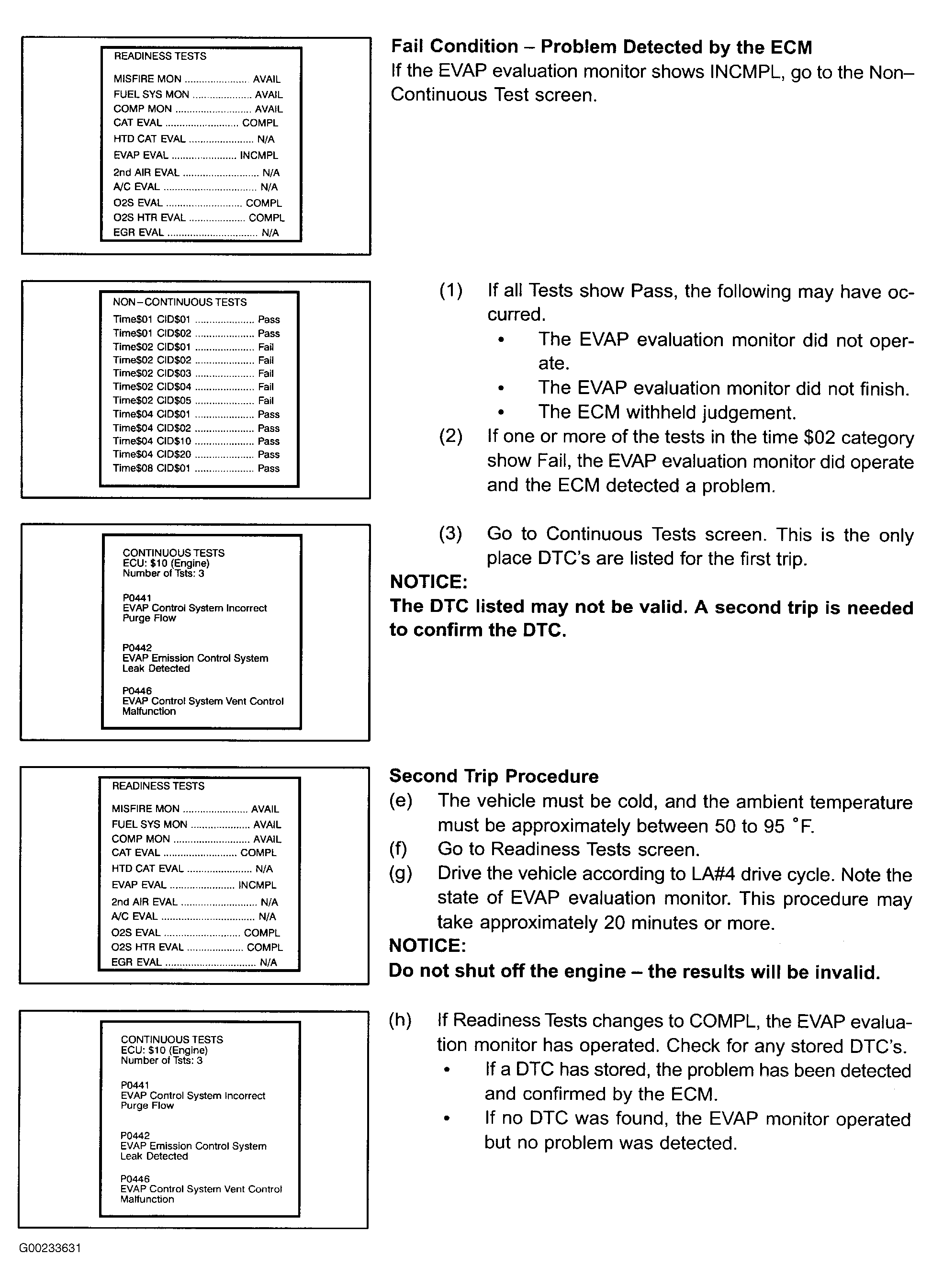

Fig 2: Confirmation Readiness Test Procedure (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
