Possible Causes

For DTC detection conditions and possible causes, see Fig 1.

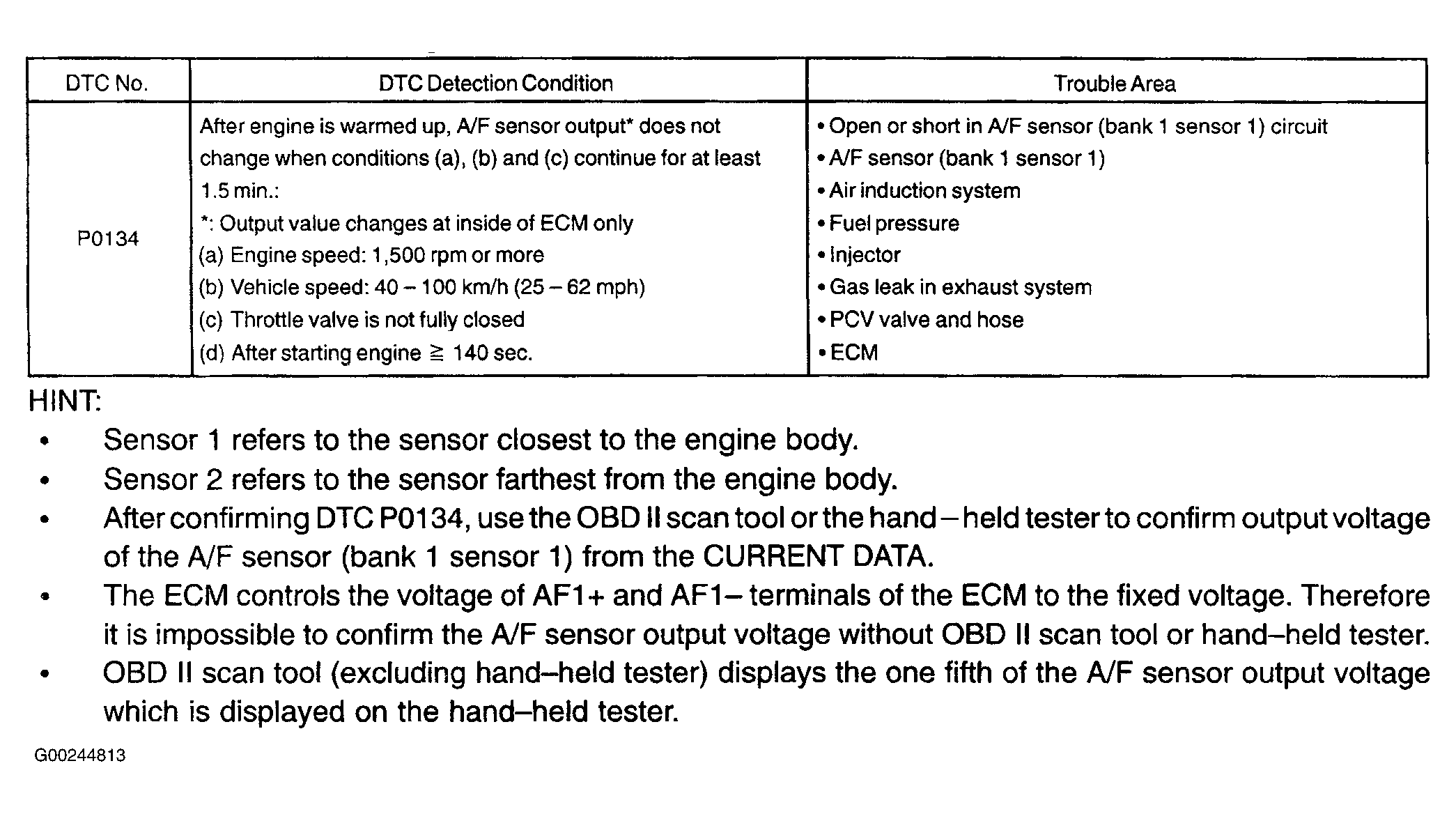

Fig 1: DTC P0134 Detecting Conditions & Possible Causes
G00244813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
