Inspect Automatic Light Control

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

AUTO ON:

  1. Turn the ignition switch ON.
  2. Turn the light control switch to AUTO.
  3. Gradually cover the top of the sensor.

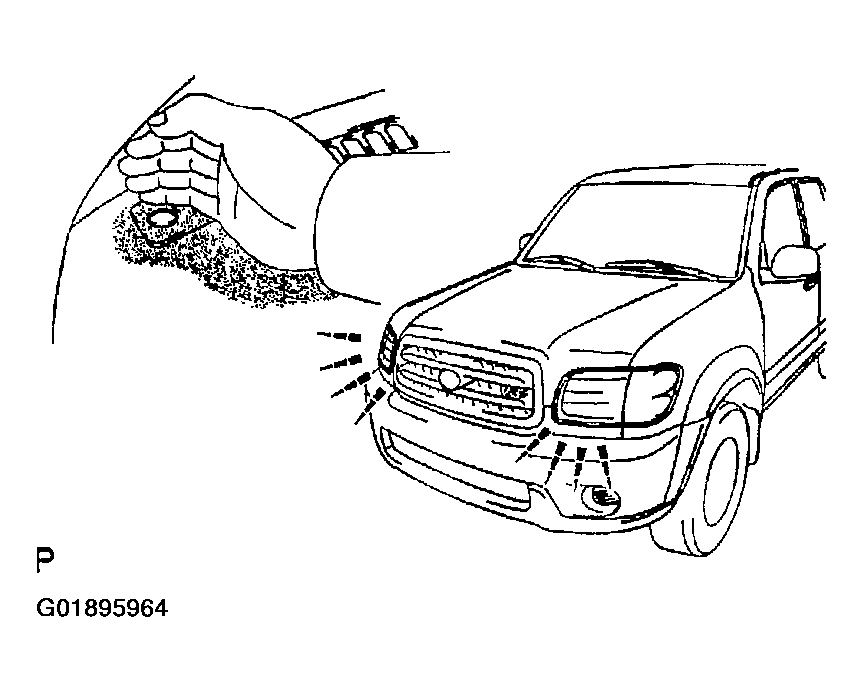

    Fig 1: Locating & Covering Light Control Sensor
    G01895964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Check the accessory lights and the headlights should turn ON.

AUTO OFF:

  1. Gradually expose the sensor.
  2. Check the headlights and the accessory lights should turn OFF.
