Diagnostic Trouble Code Chart

If a DTC is displayed during the DTC check, check the circuit listed for that code in Fig 1 and perform indicated procedure .

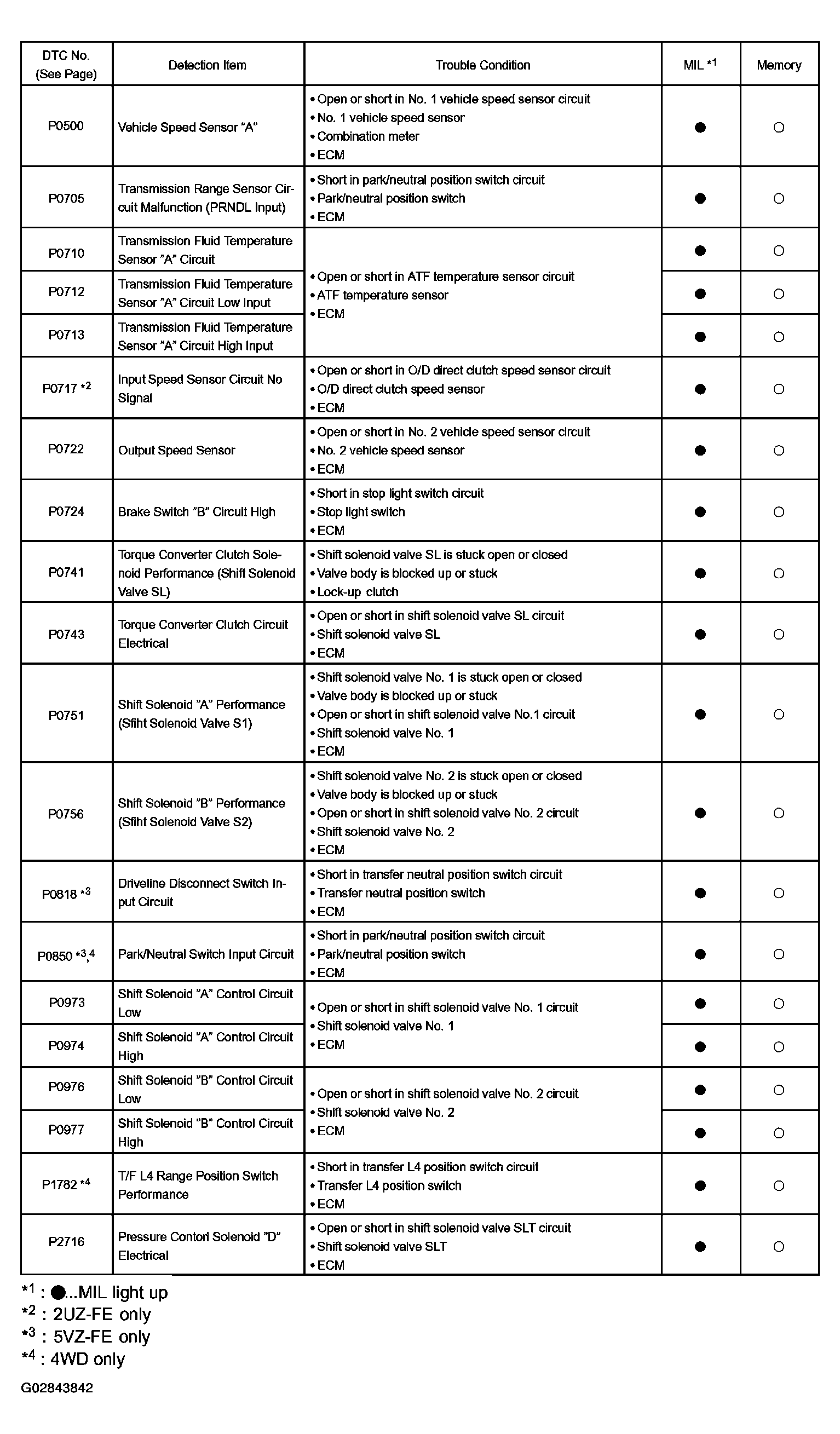

Fig 1: Diagnostic Trouble Code Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
