How To Proceed With Troubleshooting

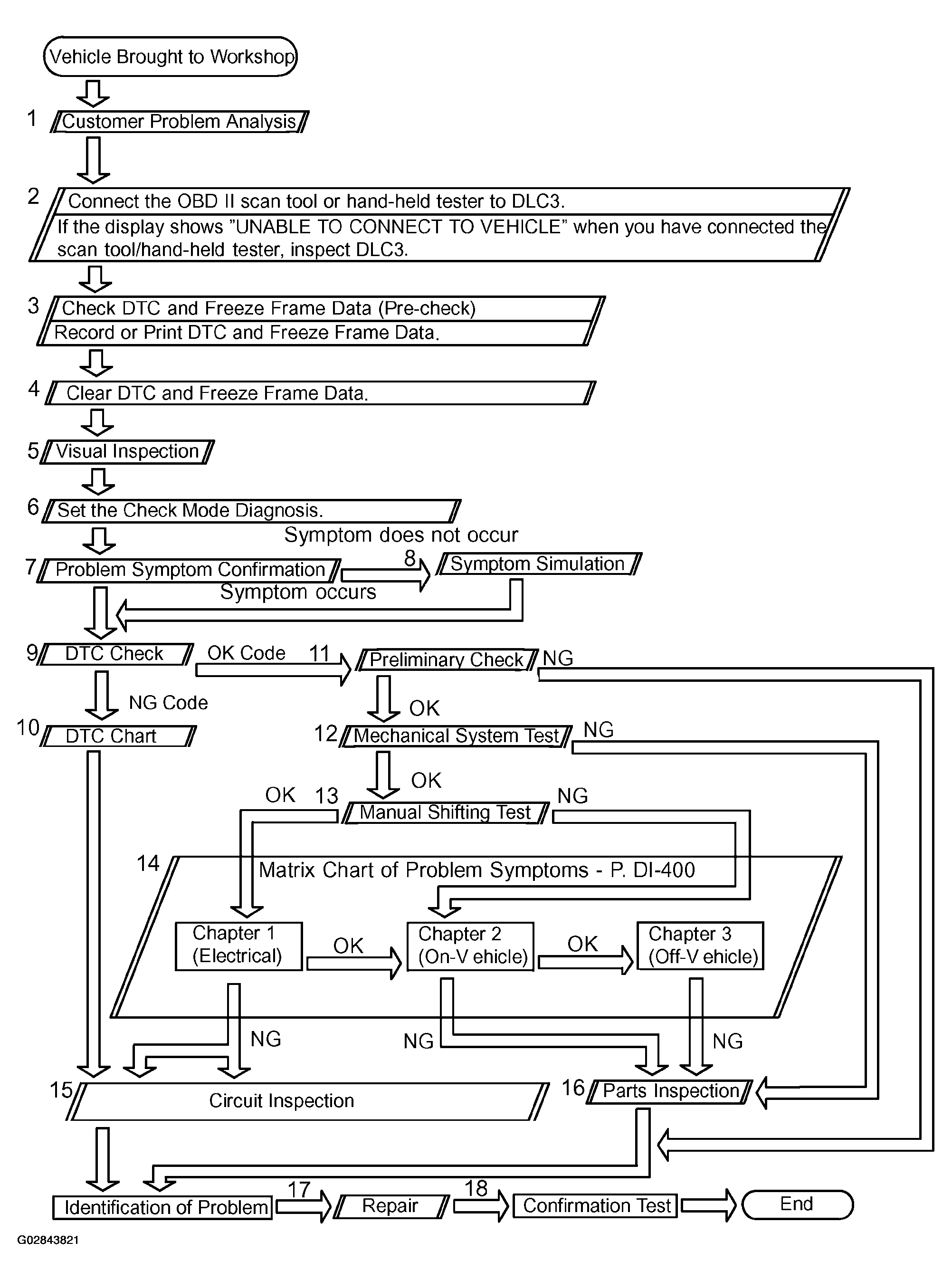

Fig 1: Automatic Transmission (A340E, A340F) Troubleshooting Flowchart
G02843821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
