Chapter 2: On-Vehicle Repair

Fig 1: On-Vehicle Repair - Problem Symptoms Chart (1 Of 2)
G02843850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

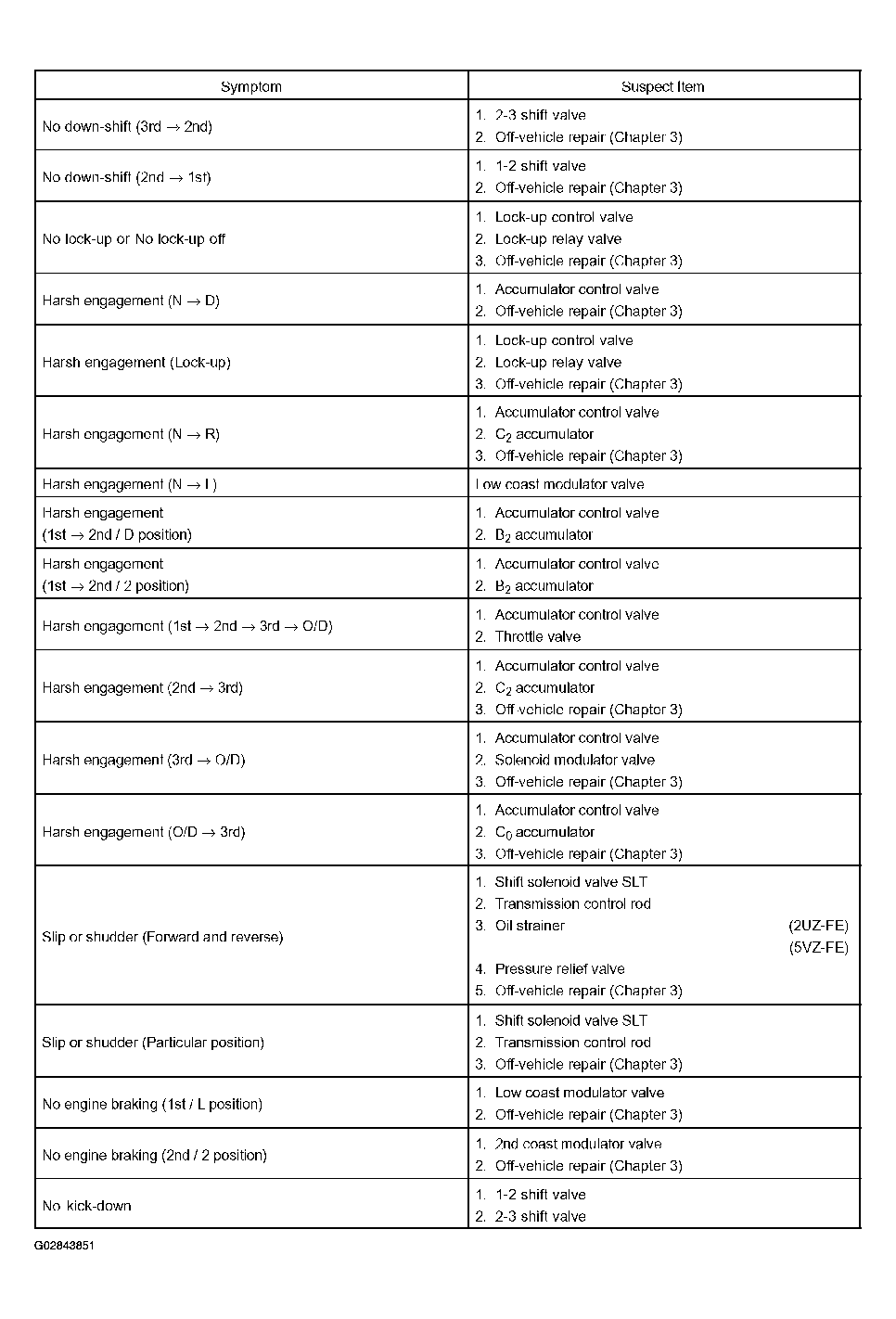

Fig 2: On-Vehicle Repair - Problem Symptoms Chart (2 Of 2)
G02843851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
