Inspection Procedure
- Inspect key unlock warning switch.
CHECK:
Check the continuity between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK:
SPECIFIED CONDITIONSwitch position Tester connection Specified condition Switch free (Key removed) 1 - 2 No continuity Switch pushed (Key inserted) 1 - 2 Continuity - NG : Replace key unlock warning switch.
- OK : Go to Next Step.

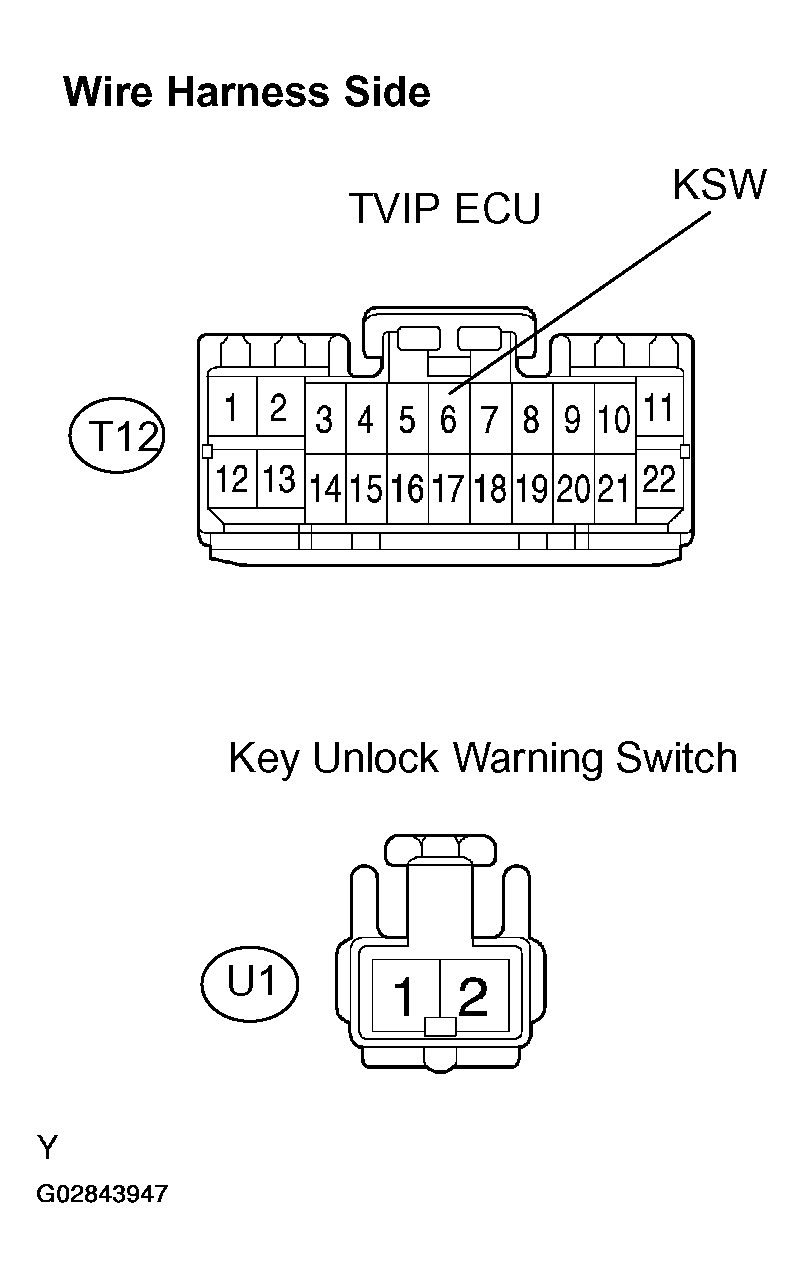

- Check harness and connector between TVIP ECU and key unlock warning switch.
PREPARATION:
- Disconnect the T12 TVIP ECU connector.
- Disconnect the U1 key unlock warning switch connector.
CHECK:
Check the continuity between the wire harness side connectors.
OK
SPECIFIED CONDITIONSymbols (Terminal No.) (TVIP ECU <--> Key Unlock Warning switch) Specified condition KSW (T12 - 6) <--> - (U1 - 2) Continuity - NG : Repair or replace harness and connector.
- OK : Go to Next Step.
- Check harness and connector between key unlock warning switch and body around.
PREPARATION:
Disconnect the U1 key unlock warning switch connector.
CHECK:
Check the continuity between the U1 key unlock warning switch wire harness side connector and body ground.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK:
SPECIFIED CONDITIONTerminal No. Specified condition U1 - 1 <--> Body ground Continuity - NG : Repair or replace harness and connector.
- OK : Check and replace TVIP ECU.
