Problem Symptoms Table

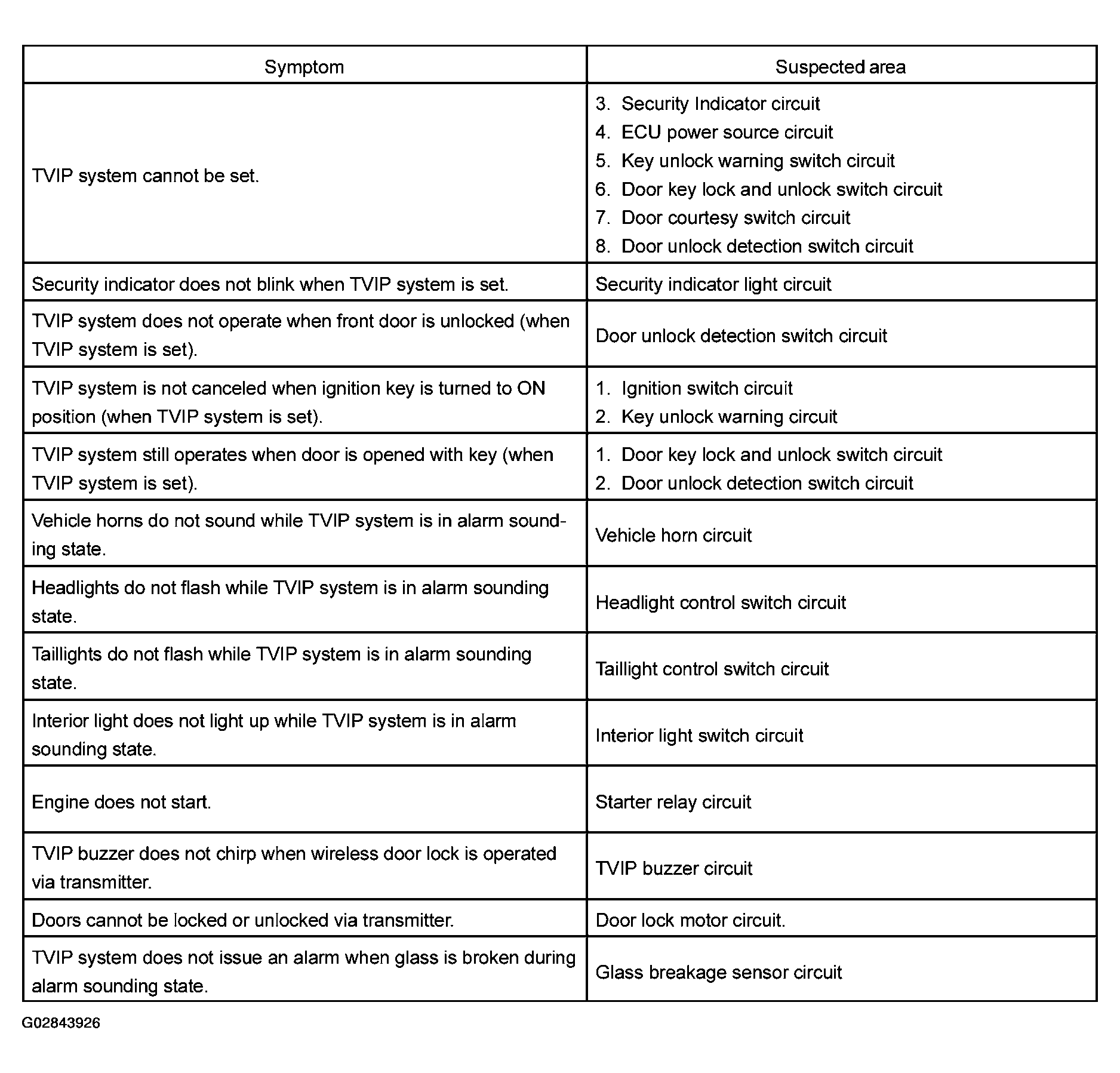

Proceed to the indicated procedure shown in Fig 1 for each malfunction symptom and troubleshoot the circuit.
NOTE:
Troubleshooting of the TVIP system is based on the premise that the power door lock control system is operating normally. Accordingly, before troubleshooting the TVIP system, first make certain that the power door lock control system is operating normally.
