Inspection Procedure

  1. Check taillights operation.

    CHECK:

    Check that the taillights light up when the light control switch is turned to TAIL.

    1. NG : Check headlight and taillight system (See  HEADLIGHT & TAILLIGHT SYSTEM  ).
    2. OK : Go to Next Step.
  2. Check harness and connector between TVIP ECU and light control switch.

    PREPARATION:

    1. Disconnect the T11 TVIP ECU connector.

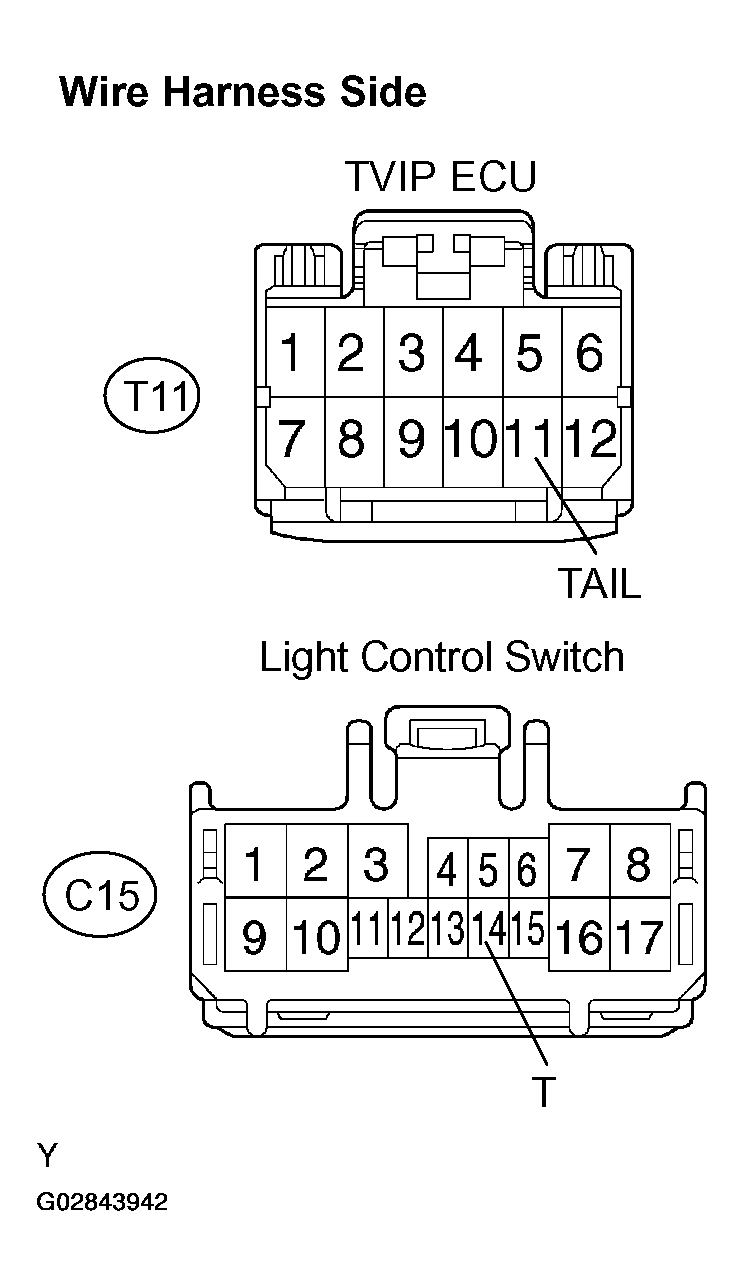

      Fig 1: Identifying T11 TVIP ECU And C15 Light Control Switch Connector
      G02843942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the C15 light control switch connector.

    CHECK:

    Check the continuity between the wire harness side connectors.

    OK:

    SPECIFIED CONDITION

    Symbols (Terminal No.) (TVIP ECU <--> Light control switch) Specified condition
    TAIL (T11-11) <--> T (C15 - 14) Continuity
    1. NG : Repair or replace harness and connector.
    2. OK : Check and replace TVIP ECU.
