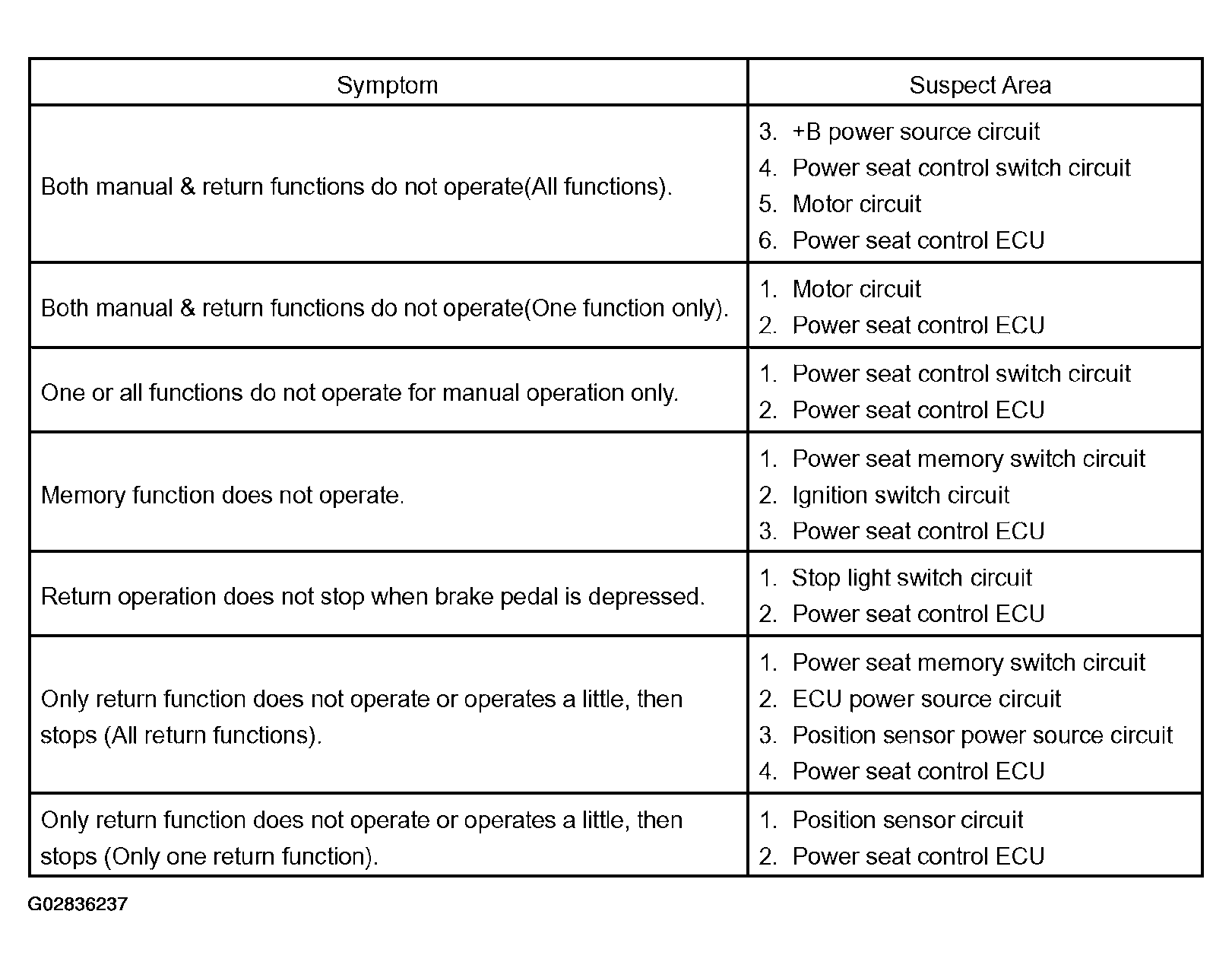

Problem Symptoms Table
Perform troubleshooting of the circuits for the applicable problem symptom in the order given in the chart below.
HINT:
- If the instruction "Proceed to next circuit inspection shown on problem symptom table" is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
- If the trouble still reappears even though there are no abnormalities in any of the other circuits, then check and replace the Seat Position Control ECU as the last step.
