Power Seat Control System (W/O Driving Position Memory: Location

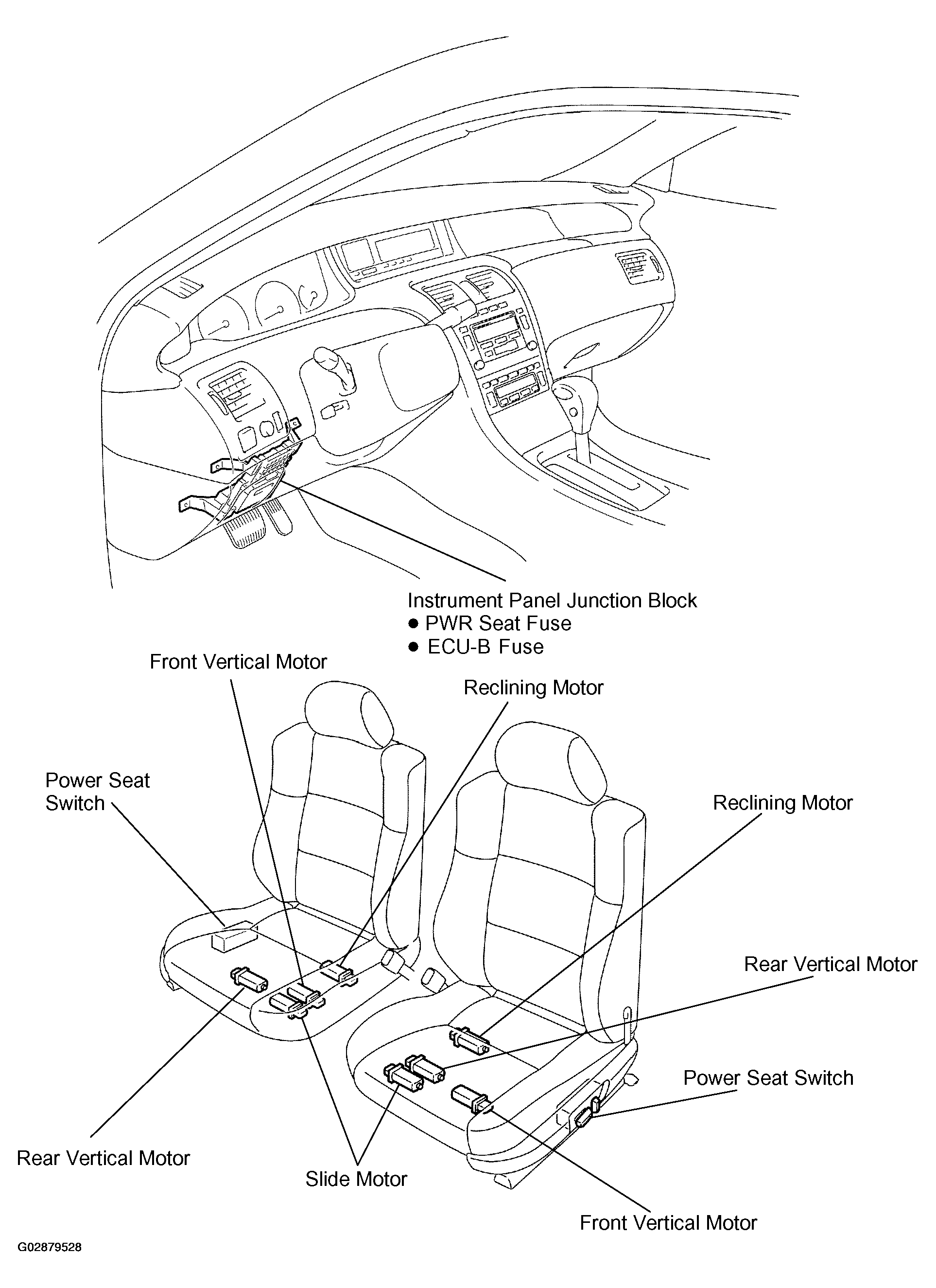

Fig 1: Locating Components
G02879528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
