Combination Meter: Circuit

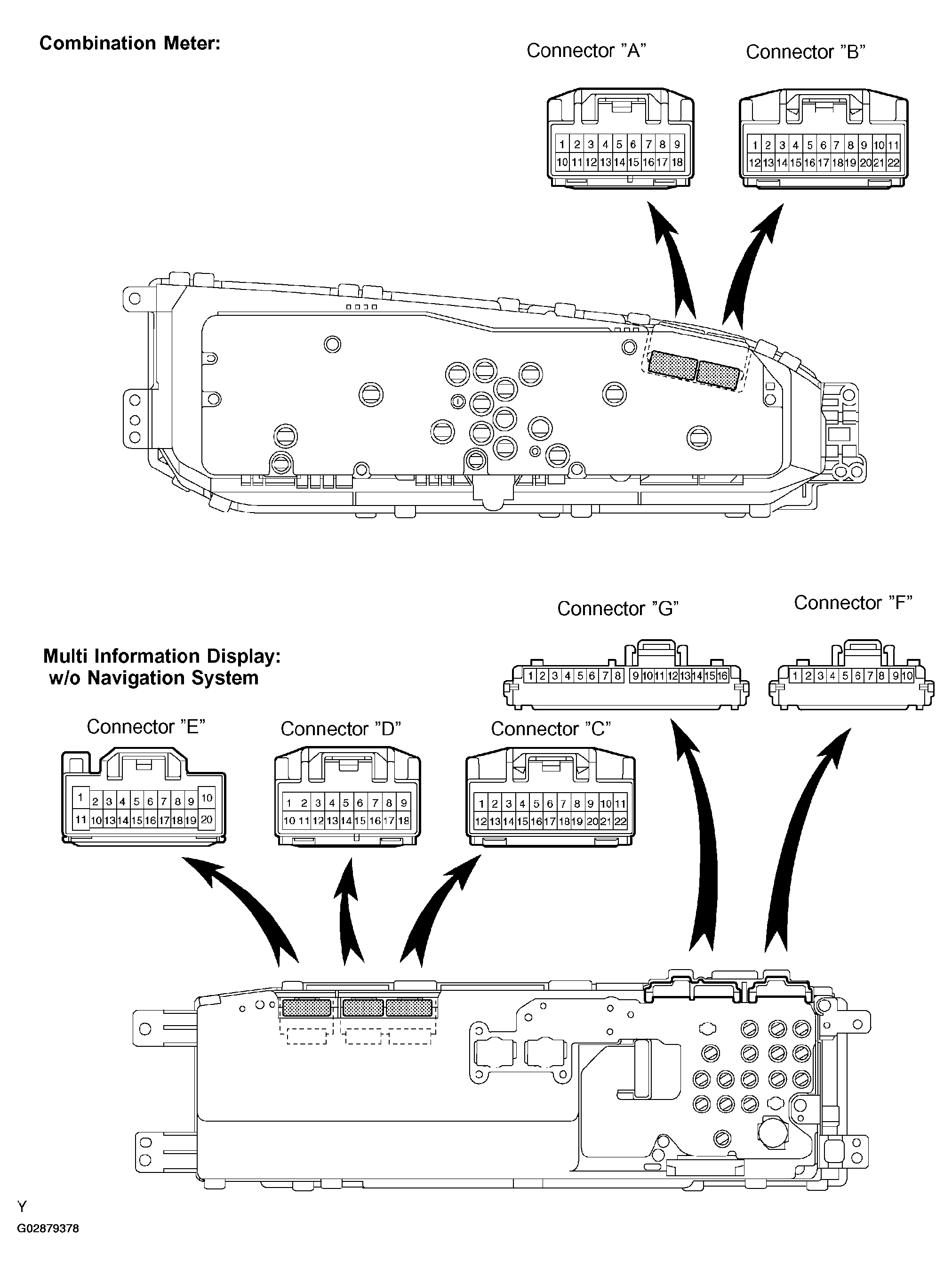

Fig 1: Identifying Connector (1 Of 2)
G02879378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

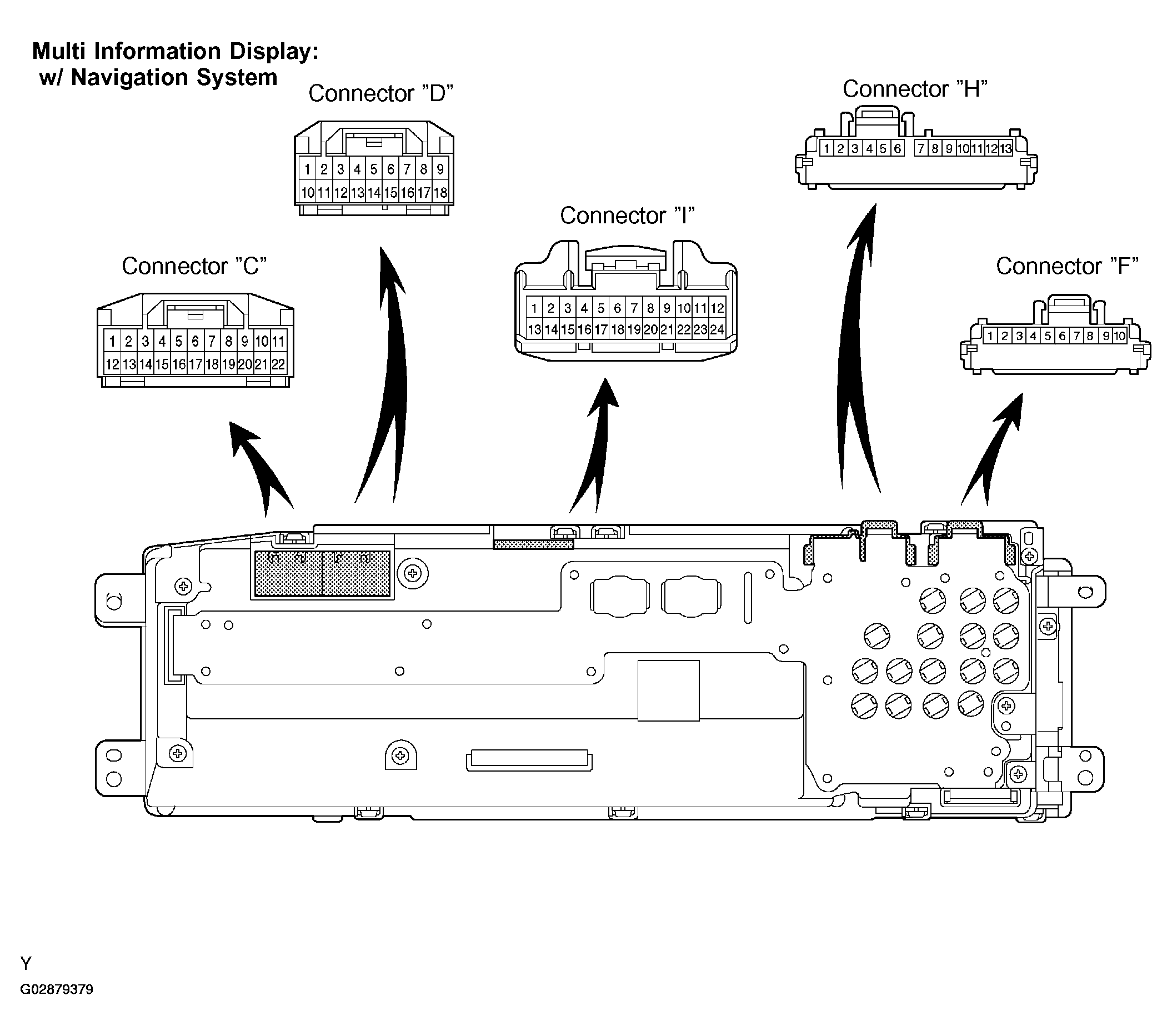

Fig 2: Identifying Connector (2 Of 2)
G02879379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

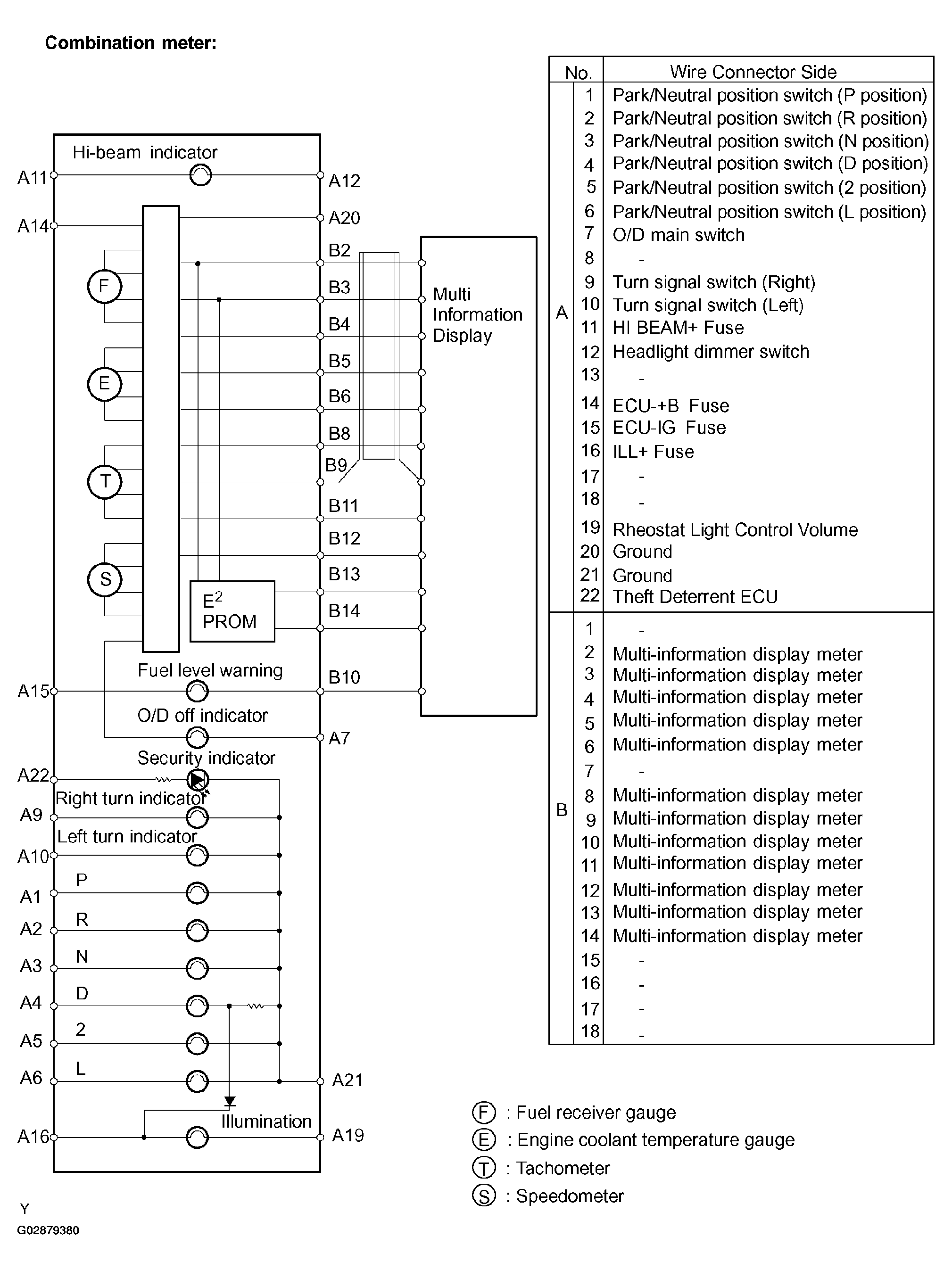

Fig 3: Combination Meter Circuit Diagram
G02879380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

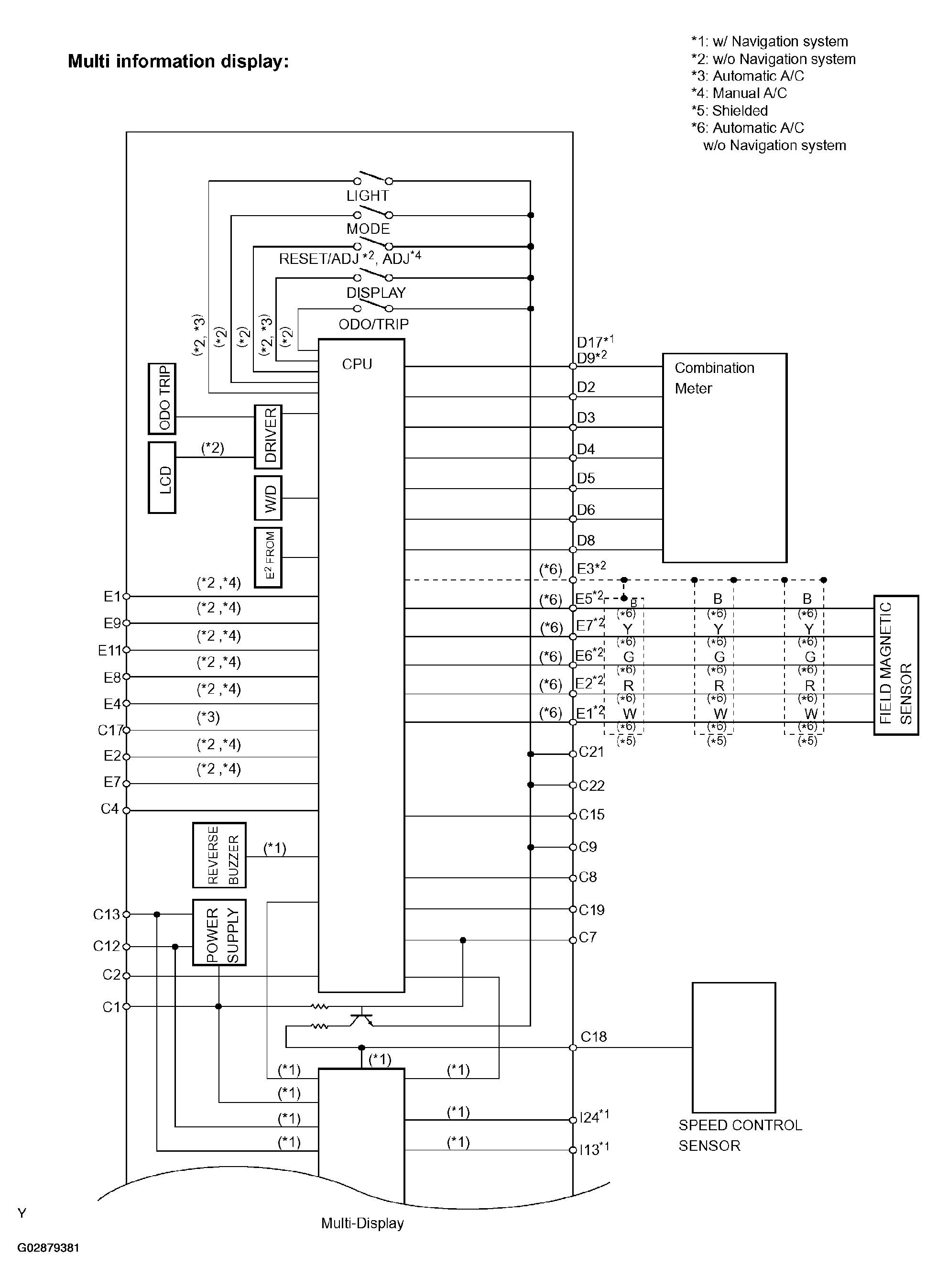

Fig 4: Multi Information System Circuit Diagram (1 Of 4)
G02879381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

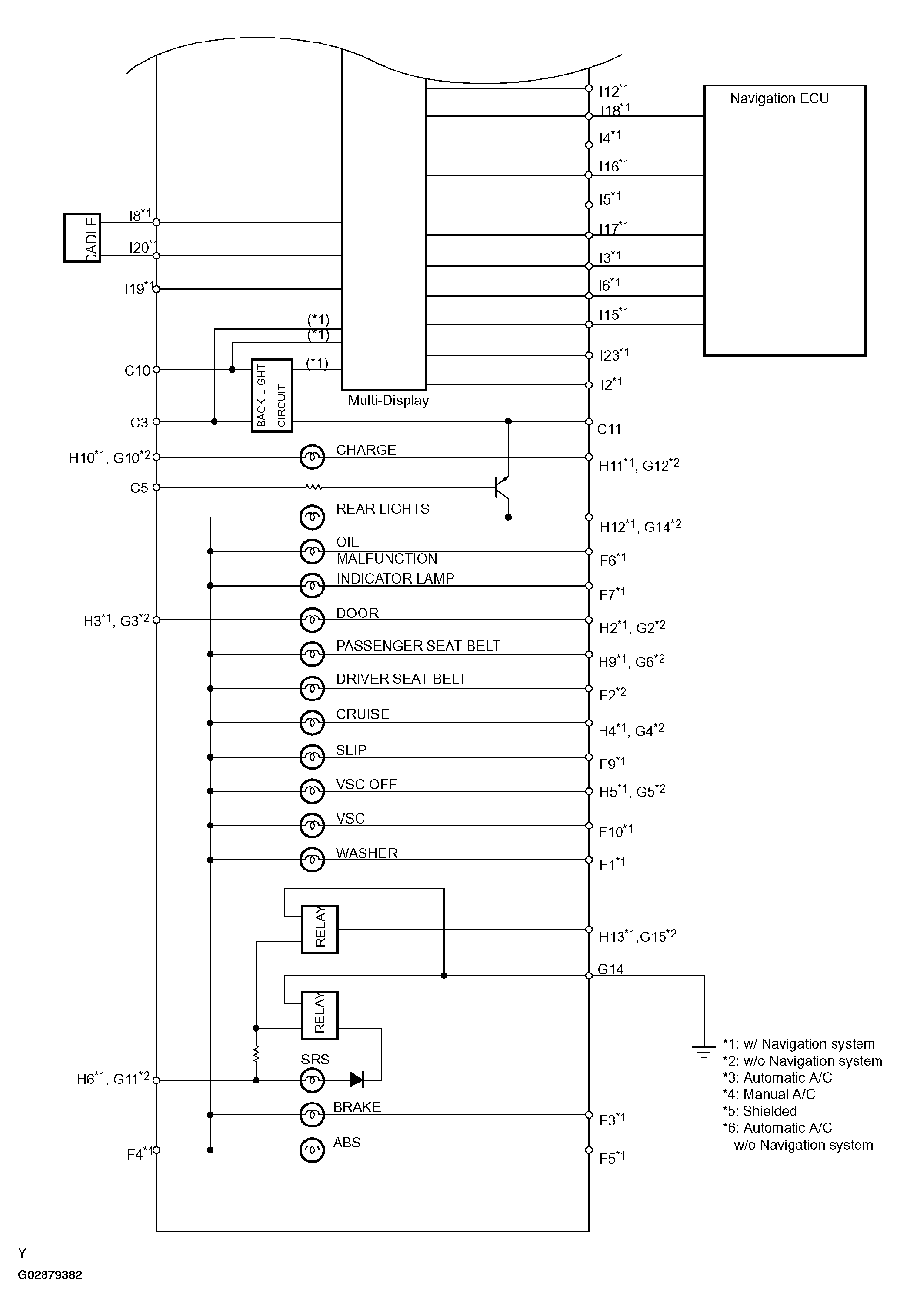

Fig 5: Multi Information System Circuit Diagram (2 Of 4)
G02879382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

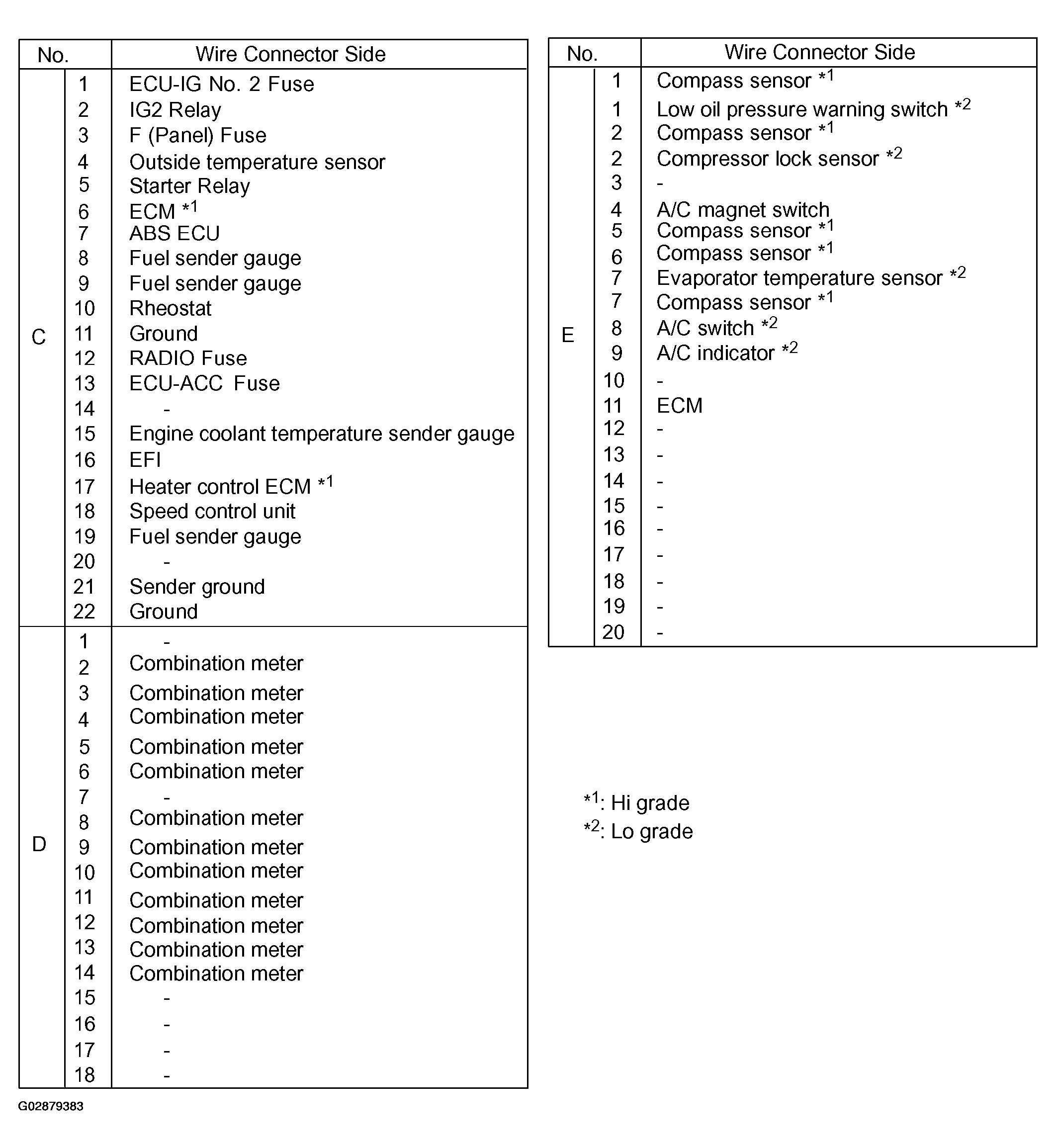

Fig 6: Multi Information System Circuit Diagram (3 Of 4)
G02879383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

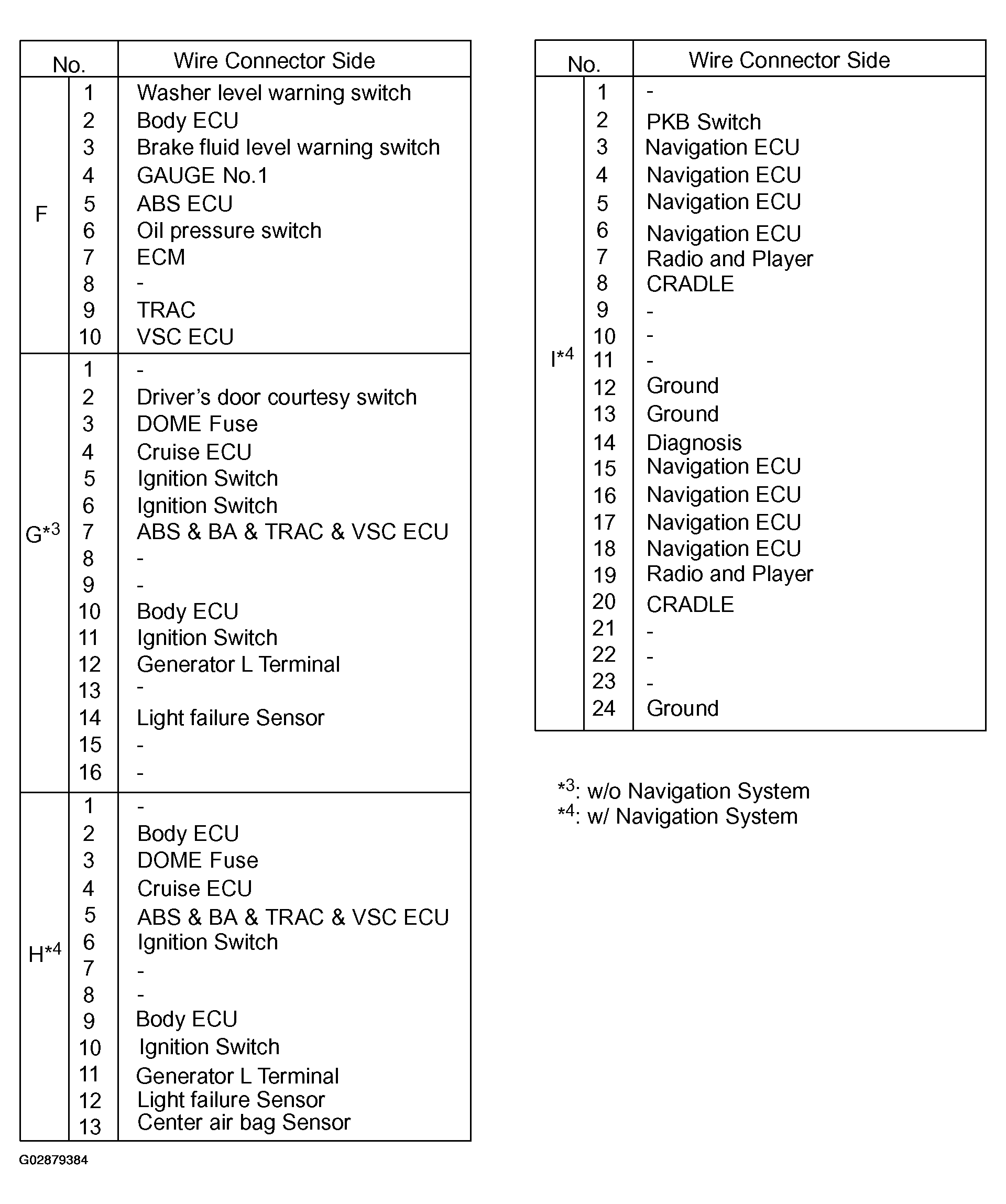

Fig 7: Multi Information System Circuit Diagram (4 Of 4)
G02879384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
