Engine Exhaust Assembly: Components

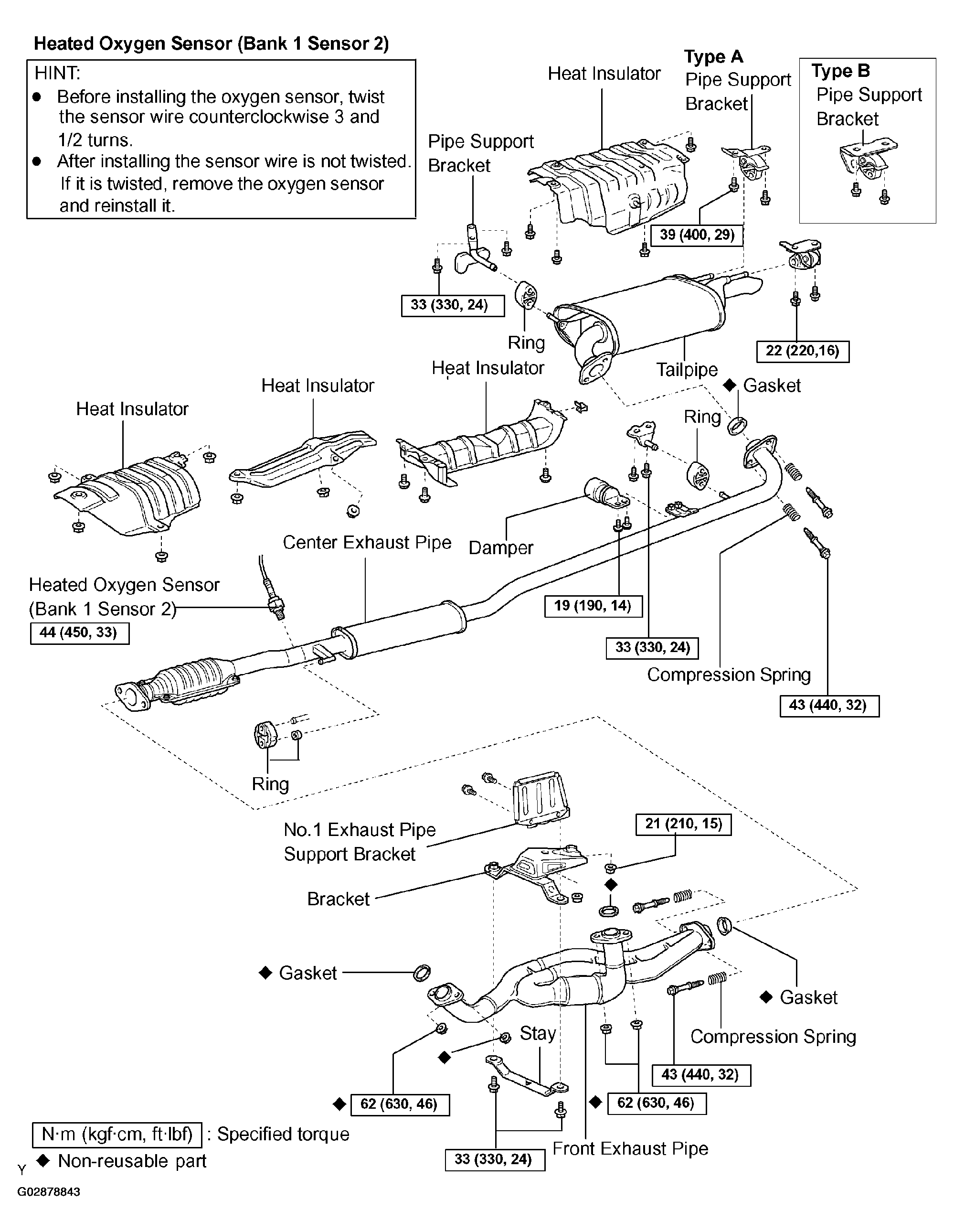

Fig 1: Exploded View Of Exhaust System Components And Torque Specifications
G02878843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
