Idle Air Control (IAC) Valve: Removal
- REMOVE THROTTLE BODY (See REMOVAL ).
- REMOVE IAC VALVE

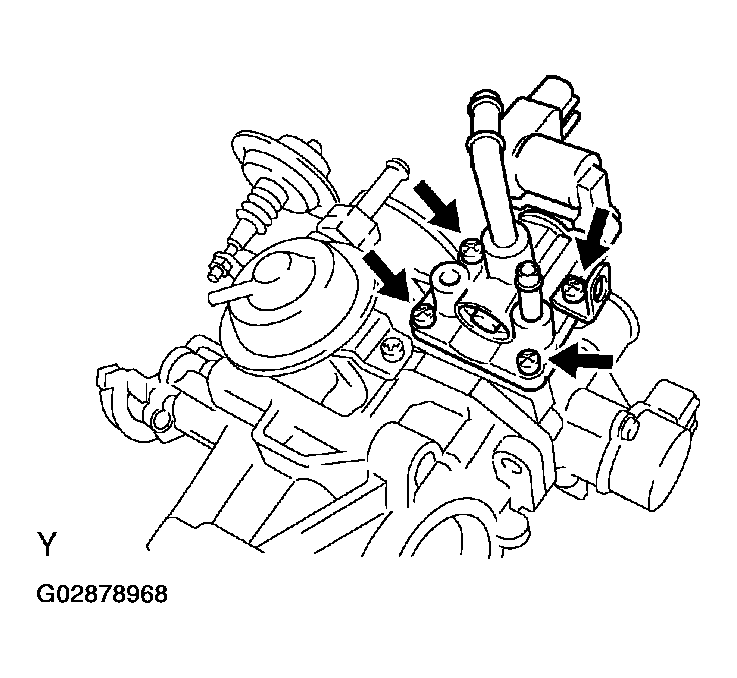

Remove the 4 screws, bracket, IAC valve and gasket.
HINT:
At the time of installation, please refer to the following items. Place a new gasket on the throttle body.
