IACV Control Circuit: Wiring Diagram

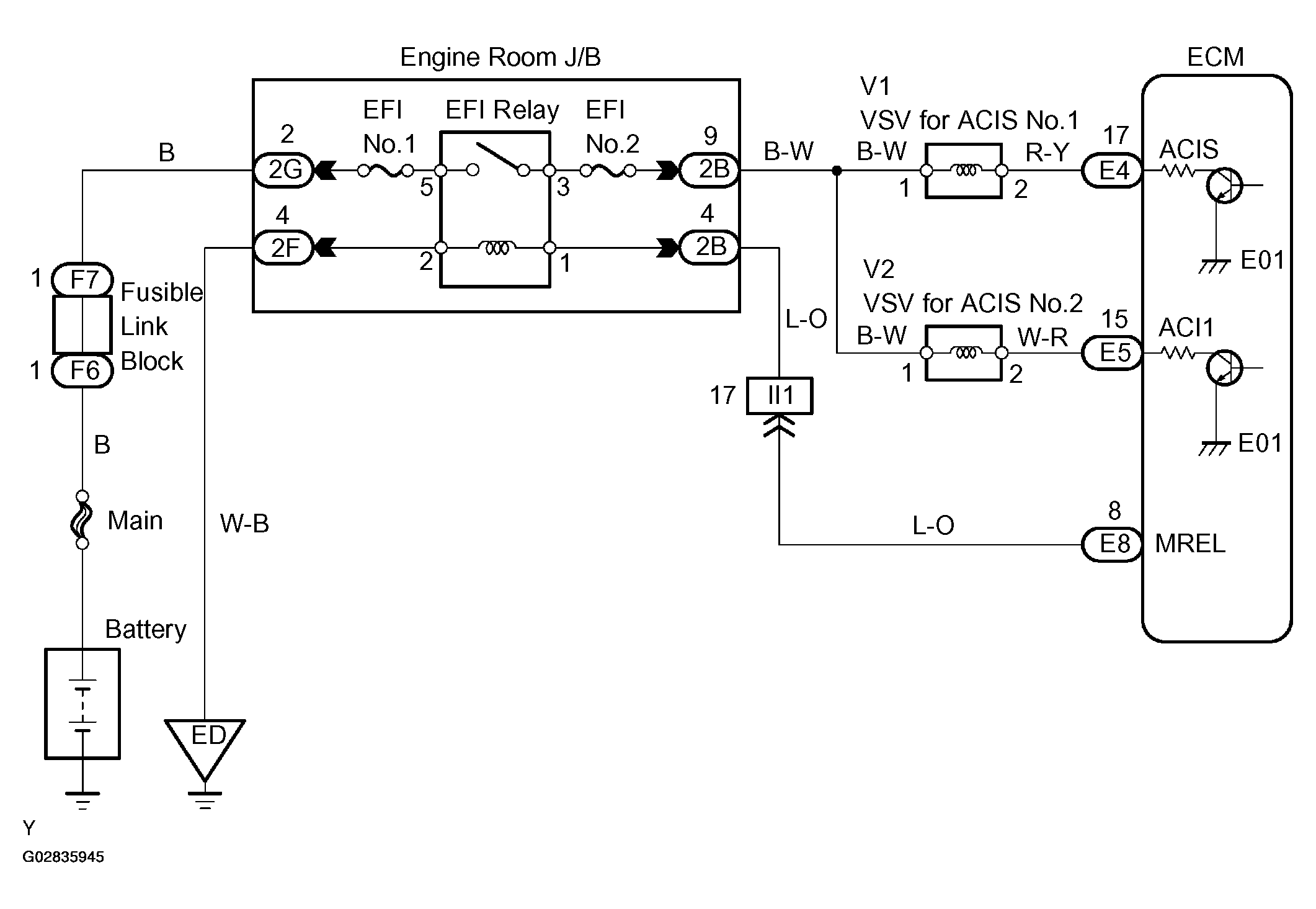

Fig 1: Identifying IACV Control Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
