Circuit Description

Refer to DTC P0115 on DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT  .

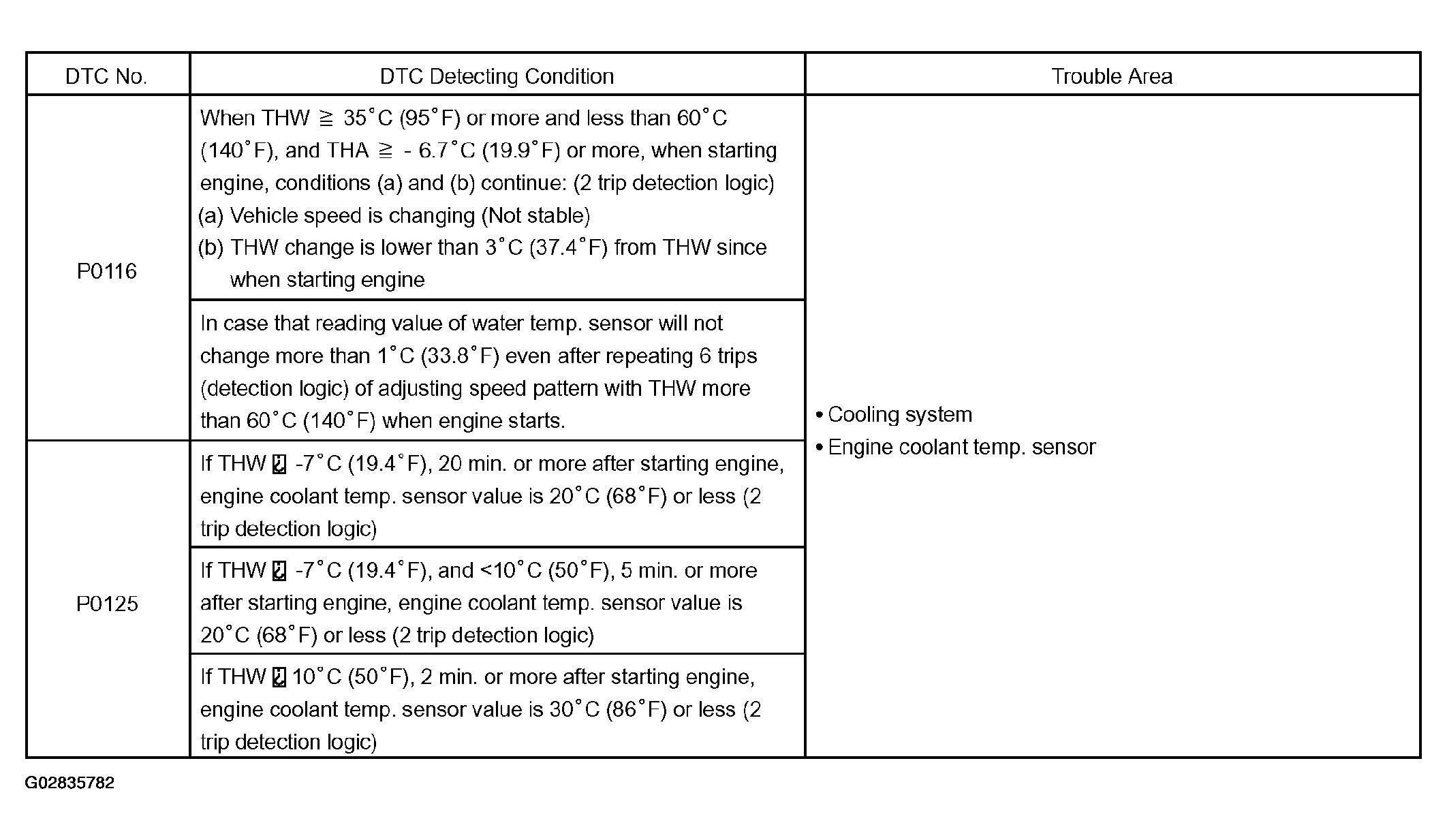

Fig 1: DTC Detecting Condition Chart
G02835782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
