Circuit Description

Refer to DTC P0134 and P0154, see DTC P0134 OXYGEN SENSOR CIRCUIT NO ACTIVITY DETECTED (BANK 1 SENSOR 1), DTC P0154: OXYGEN SENSOR CIRCUIT NO ACTIVITY DETECTED (BANK 2 SENSOR 1) .

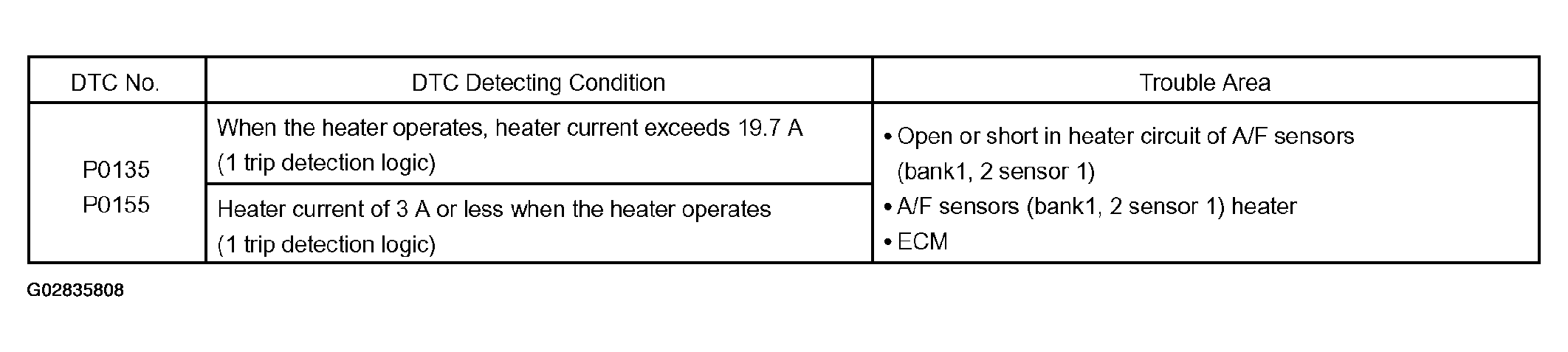

Fig 1: Identiying Circuit Description
G02835808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
