Floor Shift Assembly: Disassembly

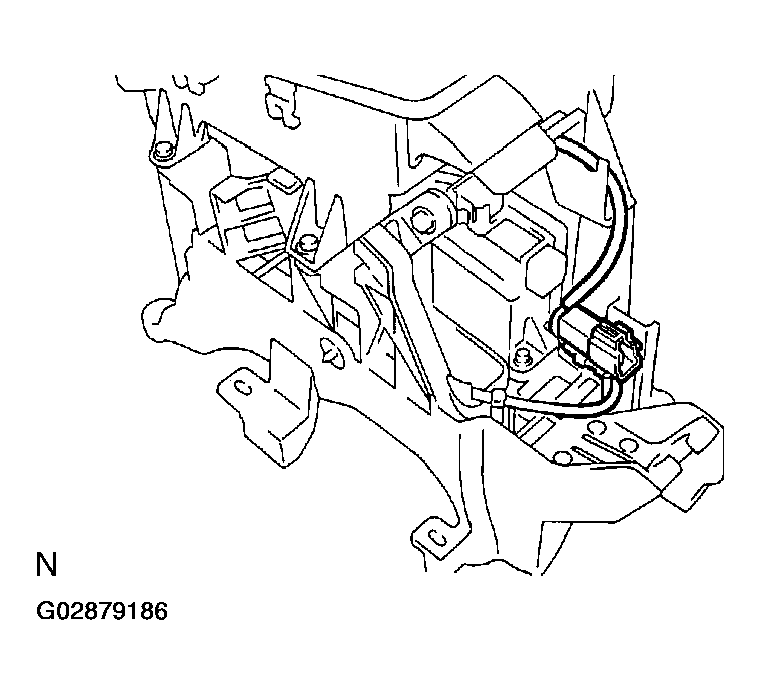

REMOVE O/D MAIN SWITCH TERMINAL
1. Remove the connector from the shift lever plate.

  Fig 1: Removing O/D Main Switch Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the secondary locking device.
3. Release the looking lug of the terminals 2 and 4, and pull the terminals out from the rear.

  Fig 2: Removing Secondary Locking Device
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

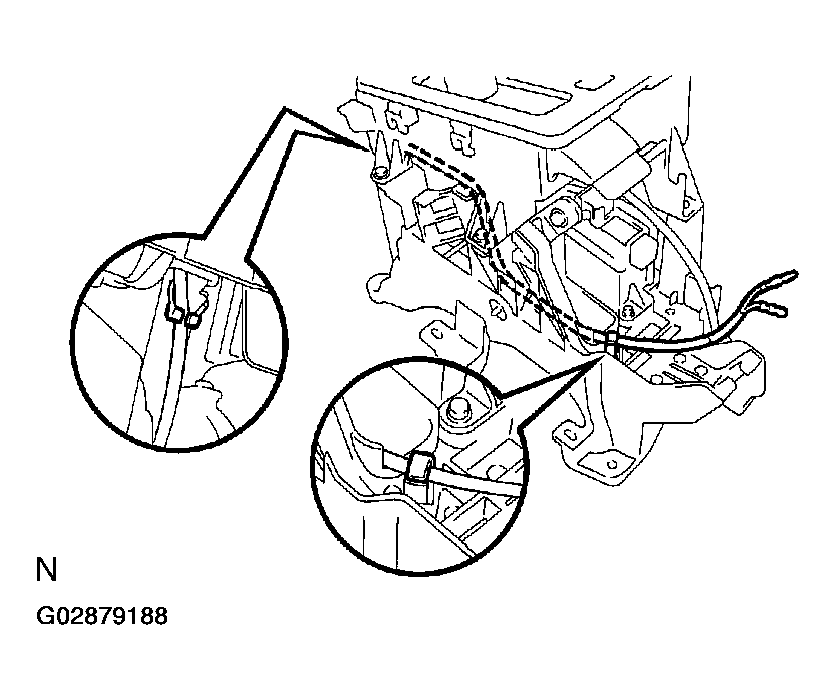

4. Separate the O/D main switch wire harness from the 2 clamps.
Fig 3: Disconnecting O/D Main Switch Wire Harness
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
1. Side the shift lever knob cover.
2. Remove the 2 screws and shift lever knob sub-assembly.
NOTE: Pay attention not to apply unnatural load onto O/D main switch wire harness.

Fig 4: Removing Shift Lever Knob Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISASSEMBLE SHIFT LEVER KNOB SUB-ASSEMBLY
1. Using a small screwdriver, remove the O/D main switch cover.
2. Using a small screwdriver, remove the O/D main switch from the shift lever knob.

  Fig 5: Disconnecting Shift Lever Knob Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Insert a small screwdriver into the position in Fig 6 and disengage the claw.
4. Remove the shift lever knob button and compression spring.
Fig 6: Removing Shift Lever Knob Button And Compression Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT
1. Remove the indicator light from the lower position indicator housing.
2. Remove the cap and bulb from the indicator light wire.
Fig 7: Removing Indicator Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER POSITION INDICATOR HOUSING
Remove the 4 screws and lower position indicator housing.

Fig 8: Removing Lower Position Indicator Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISASSEMBLE LOWER POSITION INDICATOR HOUSING
1. Remove the control position indicator plate.
2. Remove the shift lock release button and spring.
3. Remove the slide cover.
Fig 9: Removing Slide Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK CONTROL UNIT
Remove the 2 screws and shift lock control unit assembly.

Fig 10: Removing Shift Lock Control Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MANUAL DETENT SPRING
Remove the screw and manual detent spring.

Fig 11: Removing Manual Detent Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER KNOB SLEEVE

Fig 12: Removing Shift Lever Knob Sleeve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GROOVED PIN
Secure the room for the pin to be released by using the vice and etc. as shown in Fig 13 , and hit the grooved pin with a hammer and pull the grooved pin out.
NOTE:
- Hit and pull the pin out gradually.
- Do not damage the shift lever sub-assembly.
REMOVE DETENT ROD, COMPRESSION SPRING

Fig 13: Removing Detent Rod, Compression Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

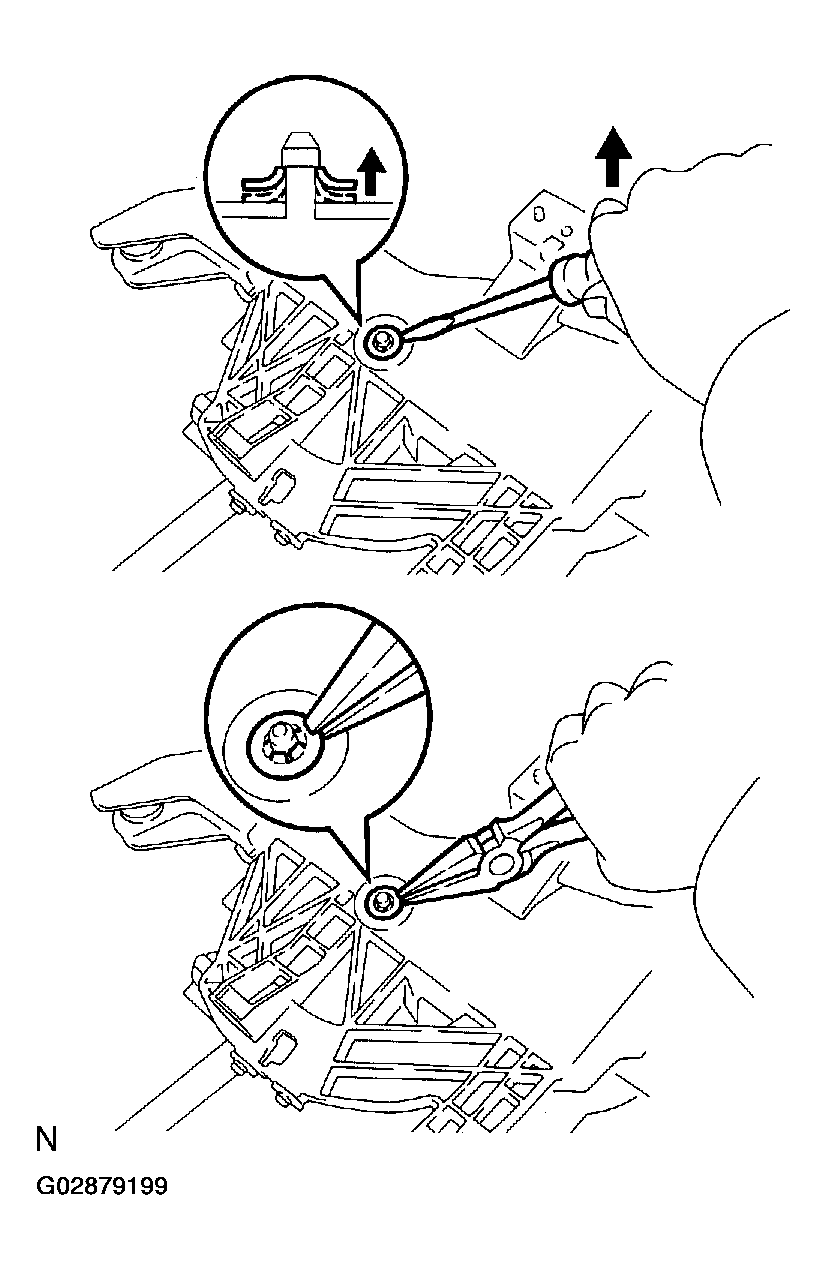

REMOVE SHIFT LEVER SUB-ASSEMBLY
1. Using a screwdriver, pry and push up the spring nut.
2. Using nippers, cut the spring nut off it.
3. Remove the control shaft and shift lever sub-assembly.
Fig 14: Removing Shift Lever Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CUSHION
Remove the 2 screws and 2 cushion.

Fig 15: Removing Cushion
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COLLAR
Using a screwdriver and hammer, remove the 4 collars.

Fig 16: Removing Collar
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
