VVT Sensor: Replacement

  1. REMOVE AIR CLEANER INLET ASSY
  2. REMOVE AIR CLEANER ASSY (See  REPLACEMENT  )
  3. REMOVE VVT SENSOR
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

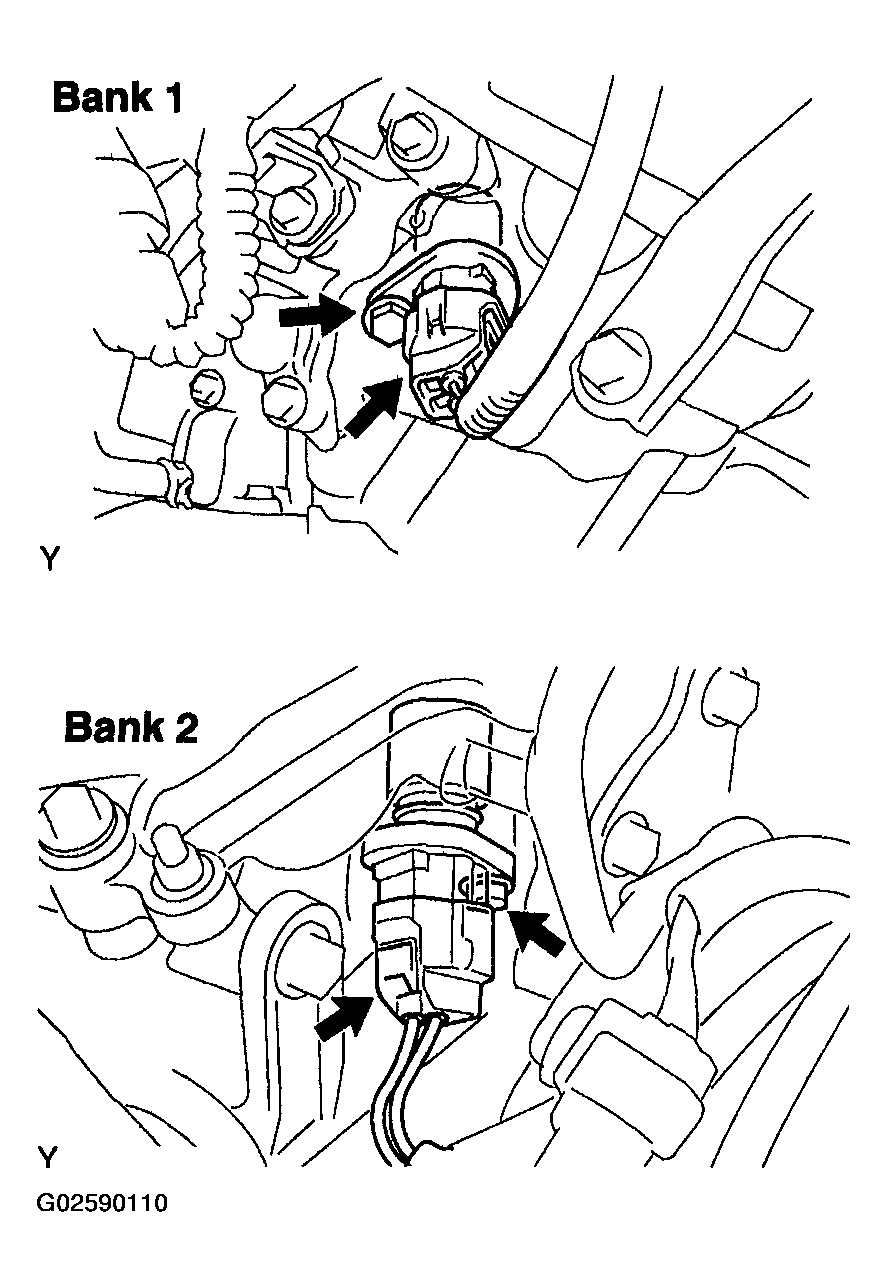

      Fig 1: Removing VVT Sensor
      G02590110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL VVT SENSOR
    1. Apply a light coat of engine oil to the O-ring on the sensor.
    2. Install the sensor with the bolt.

      Torque:  8.0 N.m (82 kgf.cm, 71 in.lbf)

    3. Connect the sensor connector.
  5. INSTALL AIR CLEANER ASSY (See  REPLACEMENT  )
  6. INSTALL AIR CLEANER INLET ASSY
  7. CHECK CONNECTION OF VACUUM HOSE
