Power Window Control System: Location

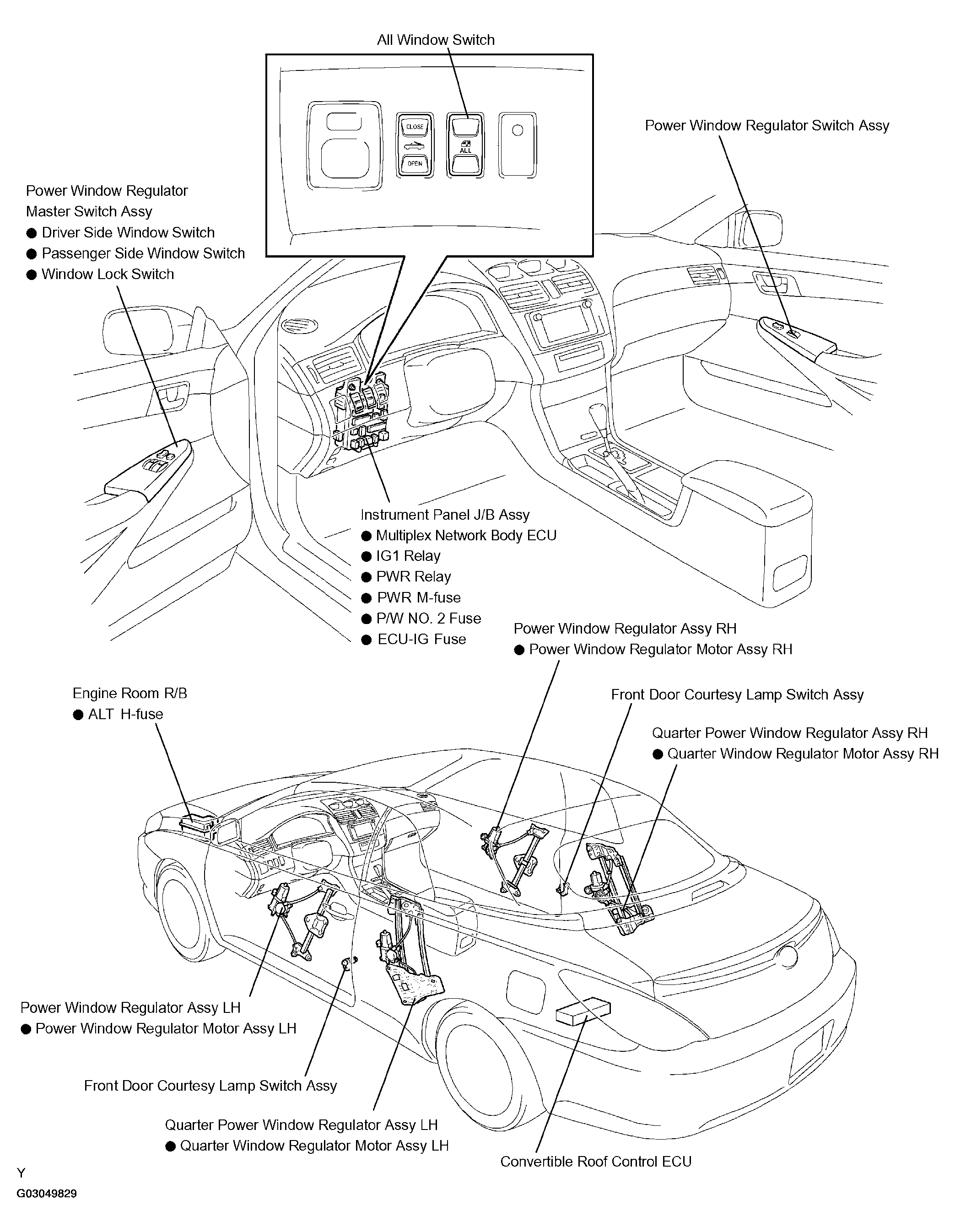

Fig 1: Locating Power Window Control System Components
G03049829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
