Power Windows Do Not Operate Using All Window Switch: Wiring Diagram

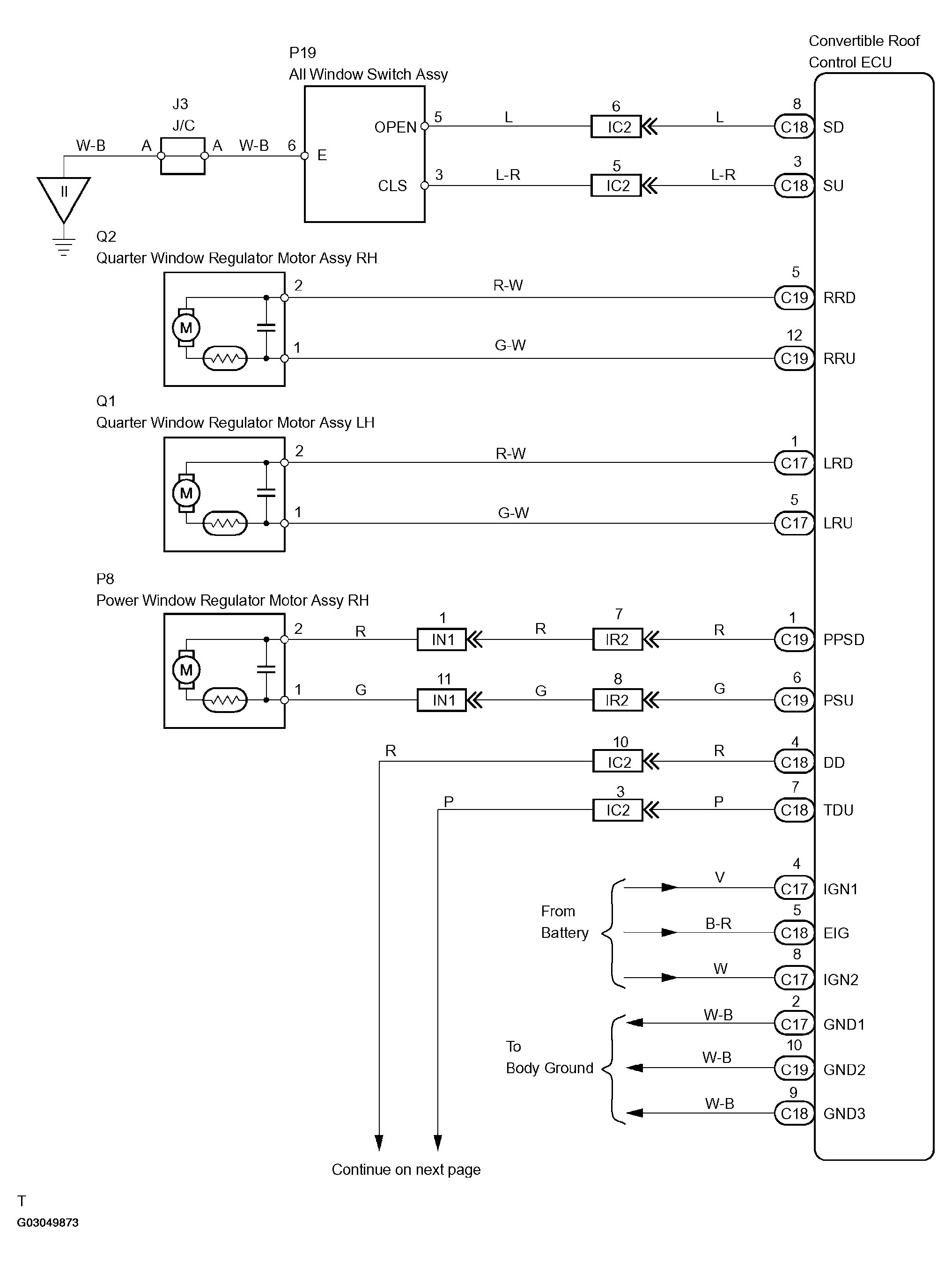

Fig 1: Wiring Diagram - Power Windows Do Not Operate Using All Window Switch (1 Of 2)
G03049873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

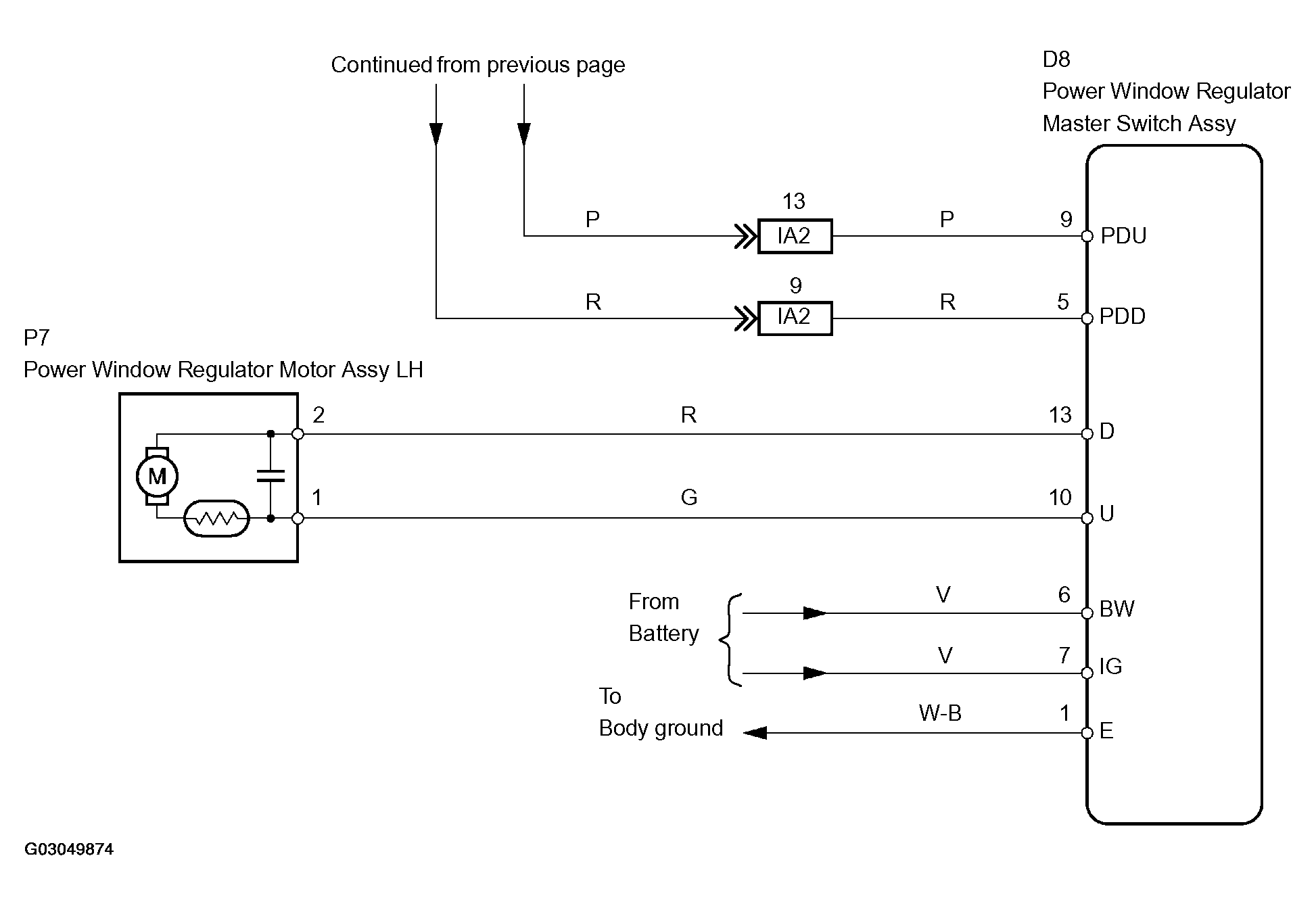

Fig 2: Wiring Diagram - Power Windows Do Not Operate Using All Window Switch (2 Of 2)
G03049874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
