Inspection Procedure

1. Turn the window lock switch OFF and operate the master switch passenger side switch. Check that the remote UP/DOWN function operates normally.
   Fig 1: Checking Remote UP/DOWN Function Operates Normally

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Remote UP/DOWN function operates normally.

1. NG: Go to step 2
2. OK: END

1. Check that the passenger side power window manual UP/DOWN function operates normally.

   OK: Manual UP/DOWN function operates normally.

1. NG: OTHER PROBLEM (See  PROBLEM SYMPTOMS TABLE  )
2. OK: Go to Next Step.

1. Disconnect the D8 master switch connector.
2. Measure the resistance of the switch when the switch is operated.

Fig 2: Measuring Passenger Side Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

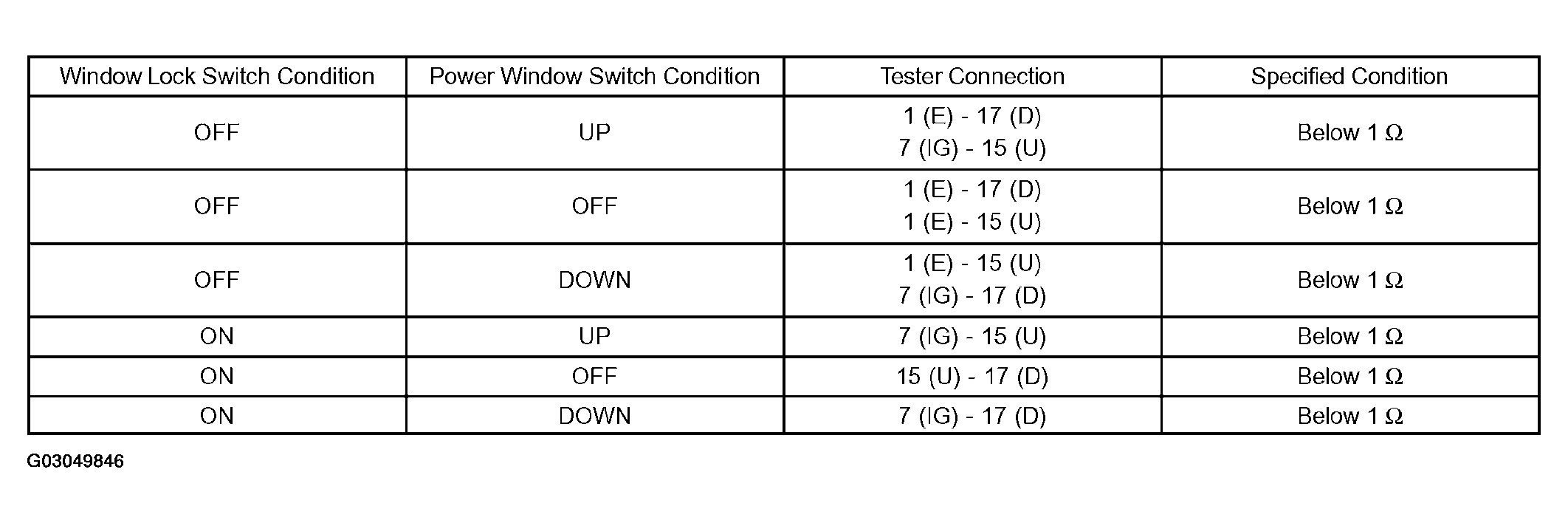

Fig 3: Window Lock Switch & Power Window Switch Specification Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
2. OK: Go to Next Step.

1. Disconnect the D8 master switch connector.
2. Disconnect the C18 ECU connector.
3. Measure the resistance of the wire harness side connectors.

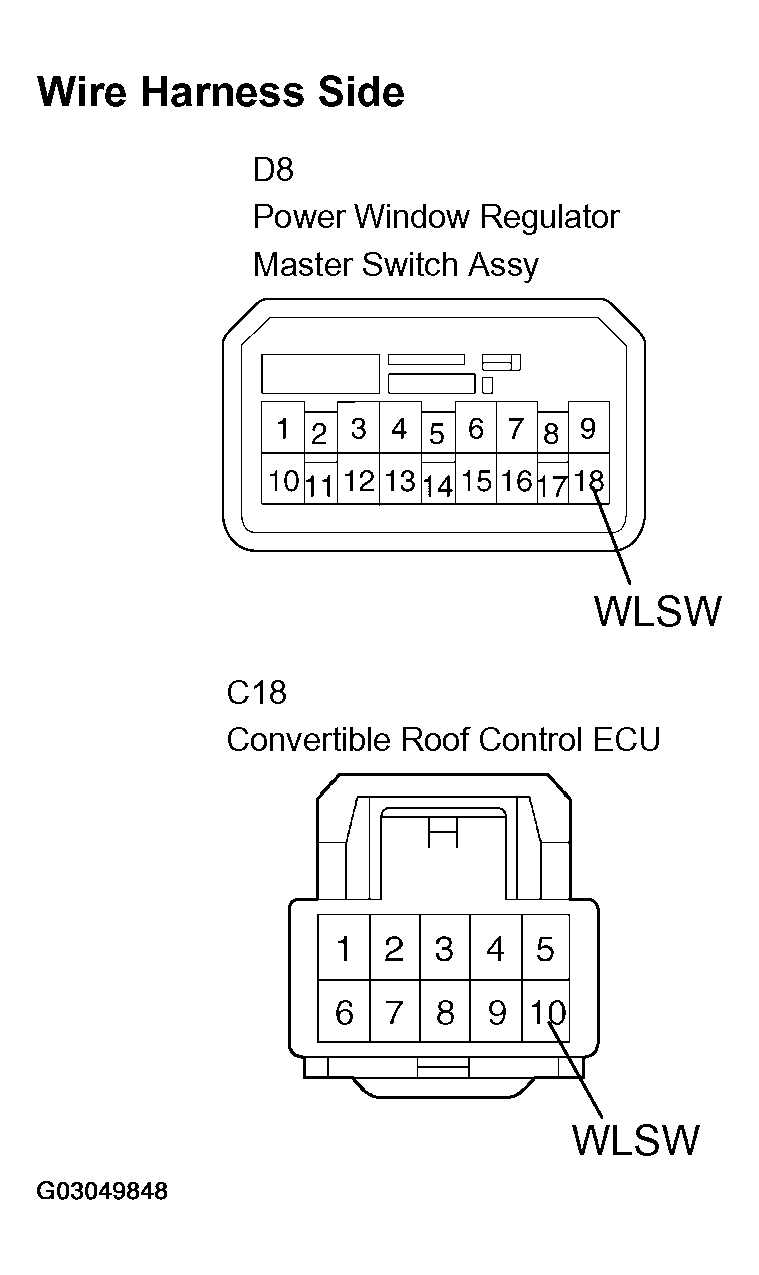

   Fig 4: Measuring Resistance Of Power Window Switch & Convertible Roof Control Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

Fig 5: Power Window Regulator Master Switch - Convertible Roof ECU Connector Resistance Specification Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: REPLACE CONVERTIBLE ROOF CONTROL ECU
