Remote Up/Down Function Does Not Operate: Wiring Diagram

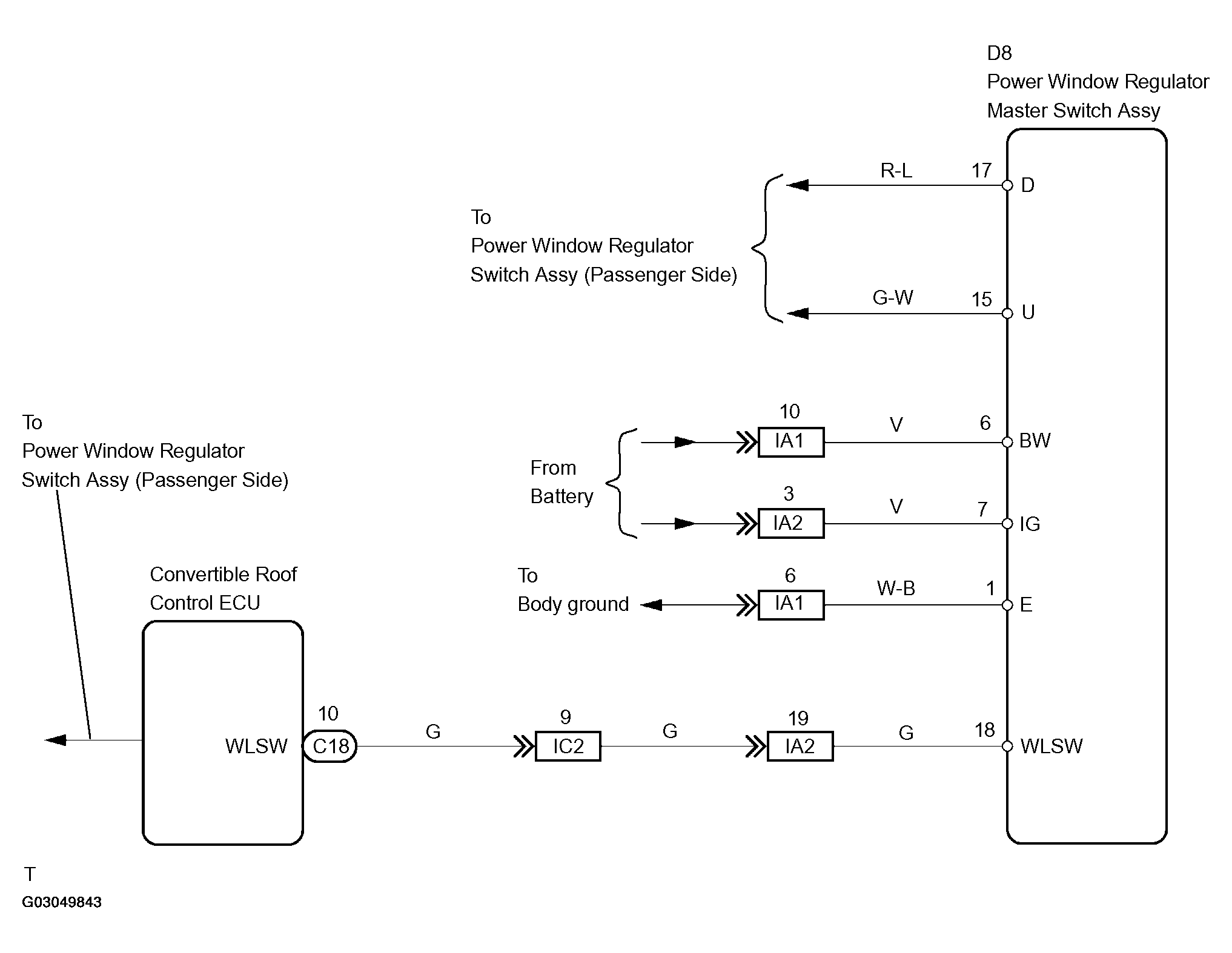

Fig 1: Wiring Diagram - Remote Up/Down Function Does Not Operate
G03049843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
