Quarter Window Assembly: Components

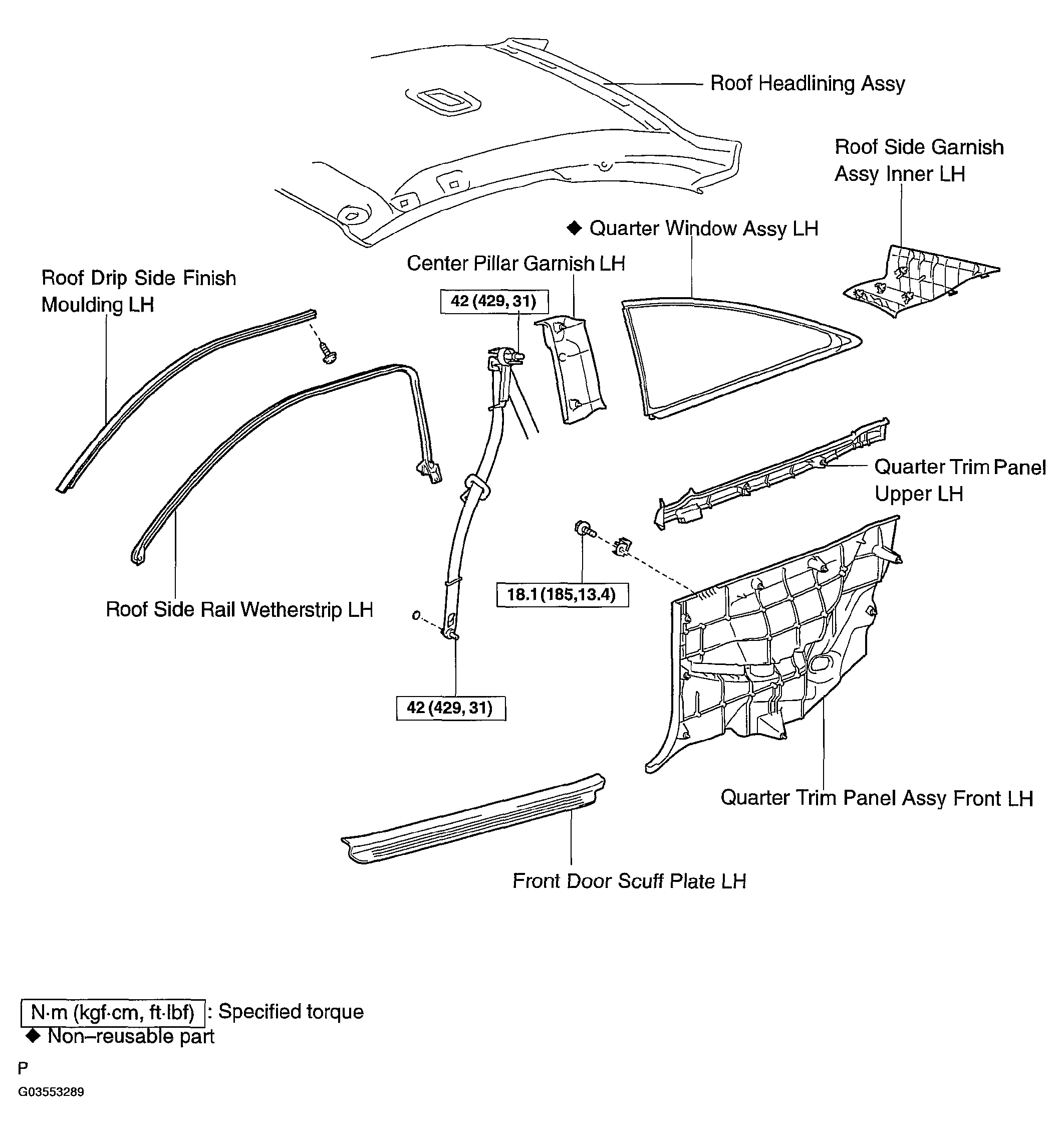

Fig 1: Exploded View Of Quarter Window Assy
G03553289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
