Charging System (Service Specifications)
>>
Service Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Service Data

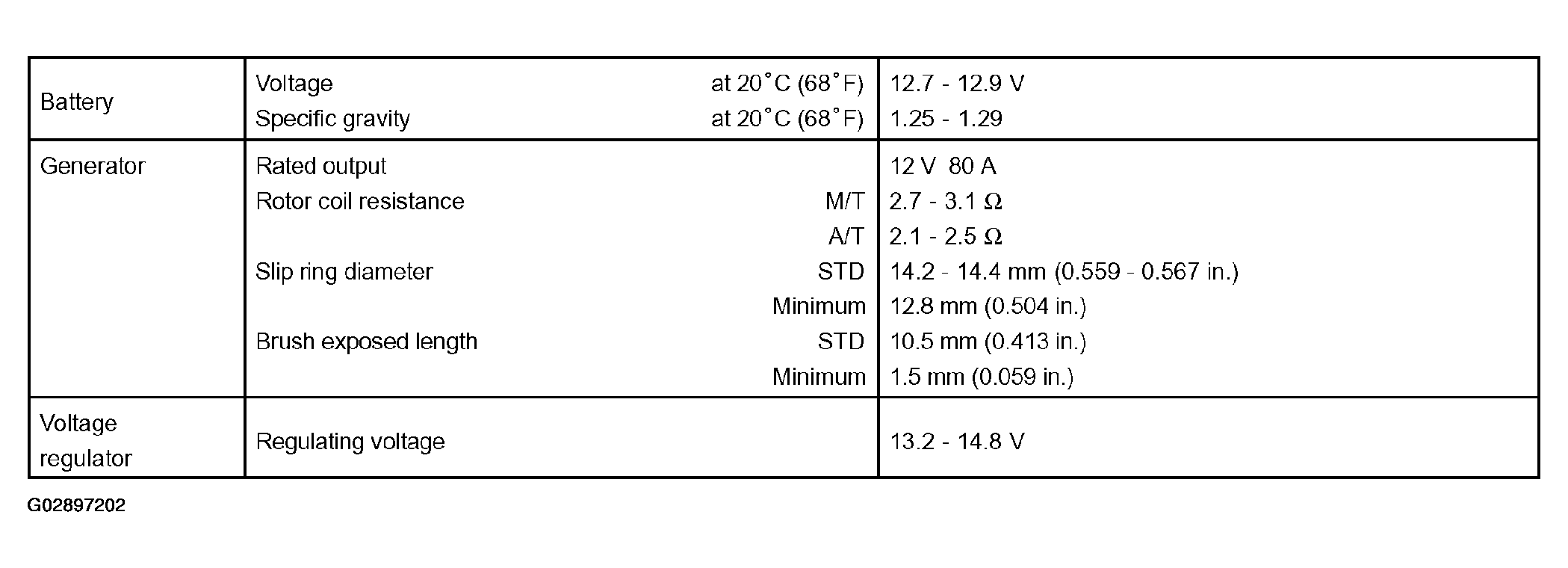

Fig 1: Charging Service Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
