Fuel Pressure Regulator: Installation

INSTALL FUEL PRESSURE REGULATOR
1. Install the O-ring to the pressure regulator.
  HINT:

  Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.

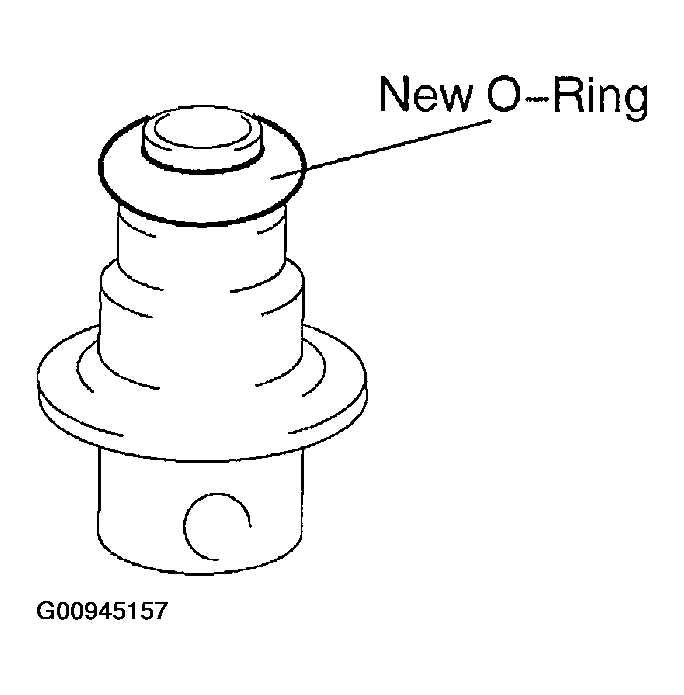

  Fig 1: Installing O-Ring To Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the pressure regulator from the fuel filter.
INSTALL NO. 1 FUEL SUCTION SUPPORT (See REASSEMBLY )
INSTALL FUEL PUMP ASSEMBLY TO FUEL TANK (See INSTALLATION )
