Fuel Tank And Line: Components

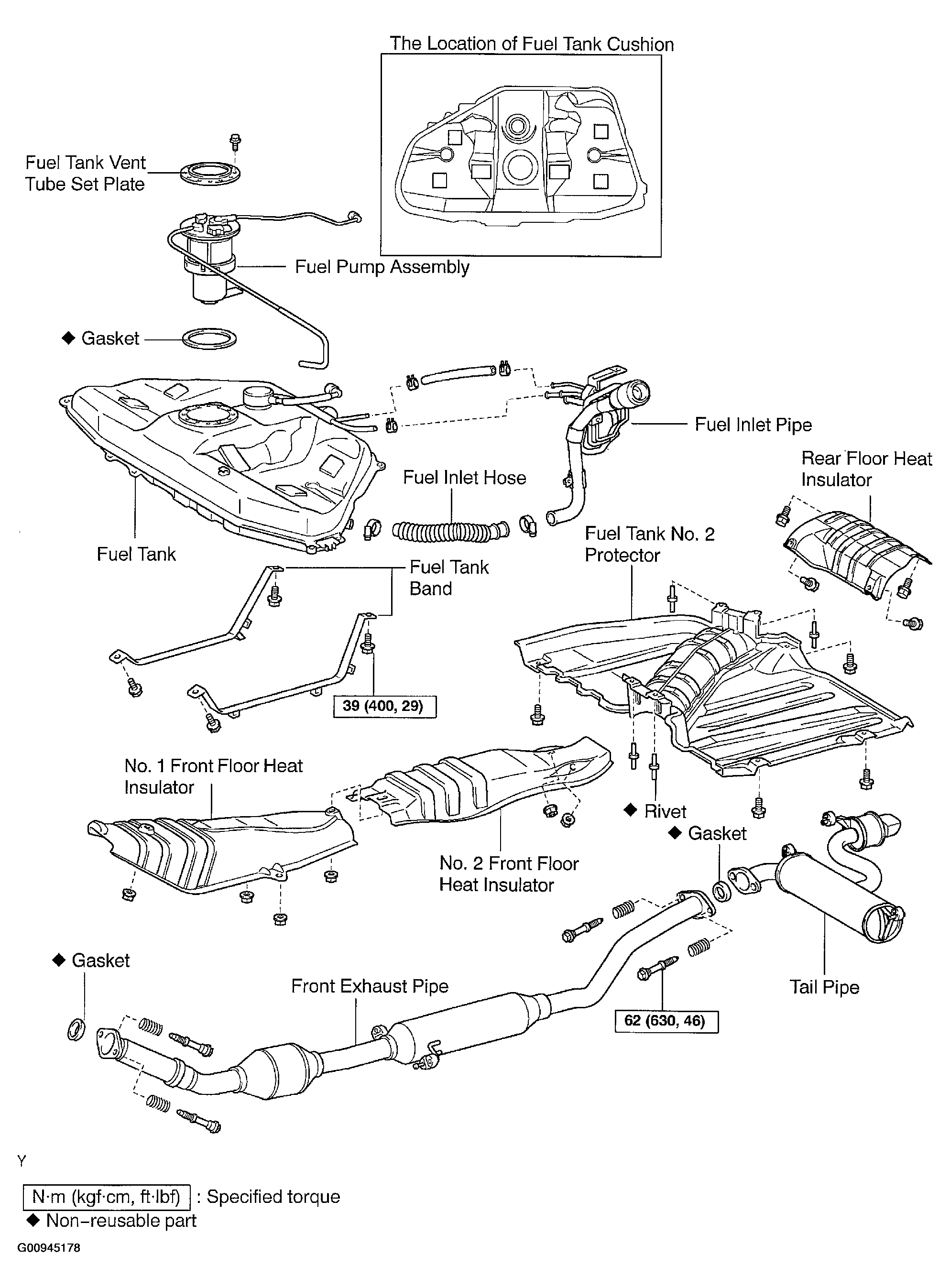

Fig 1: Fuel Tank & Line Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
