Light Control Switch Circuit: Wiring Diagram

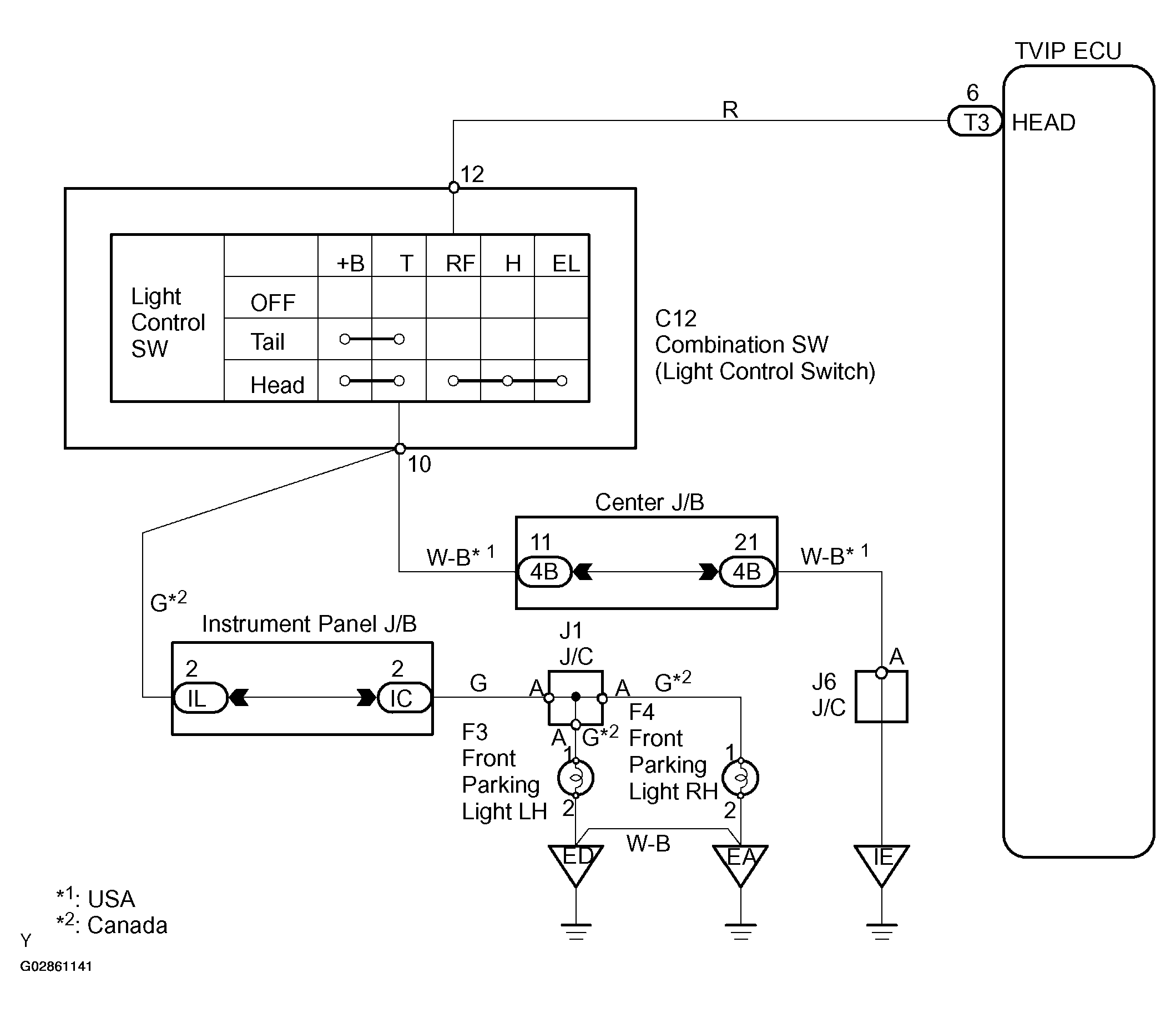

Fig 1: Light Control Switch Circuit Wiring Diagram
G02861141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
