Seats

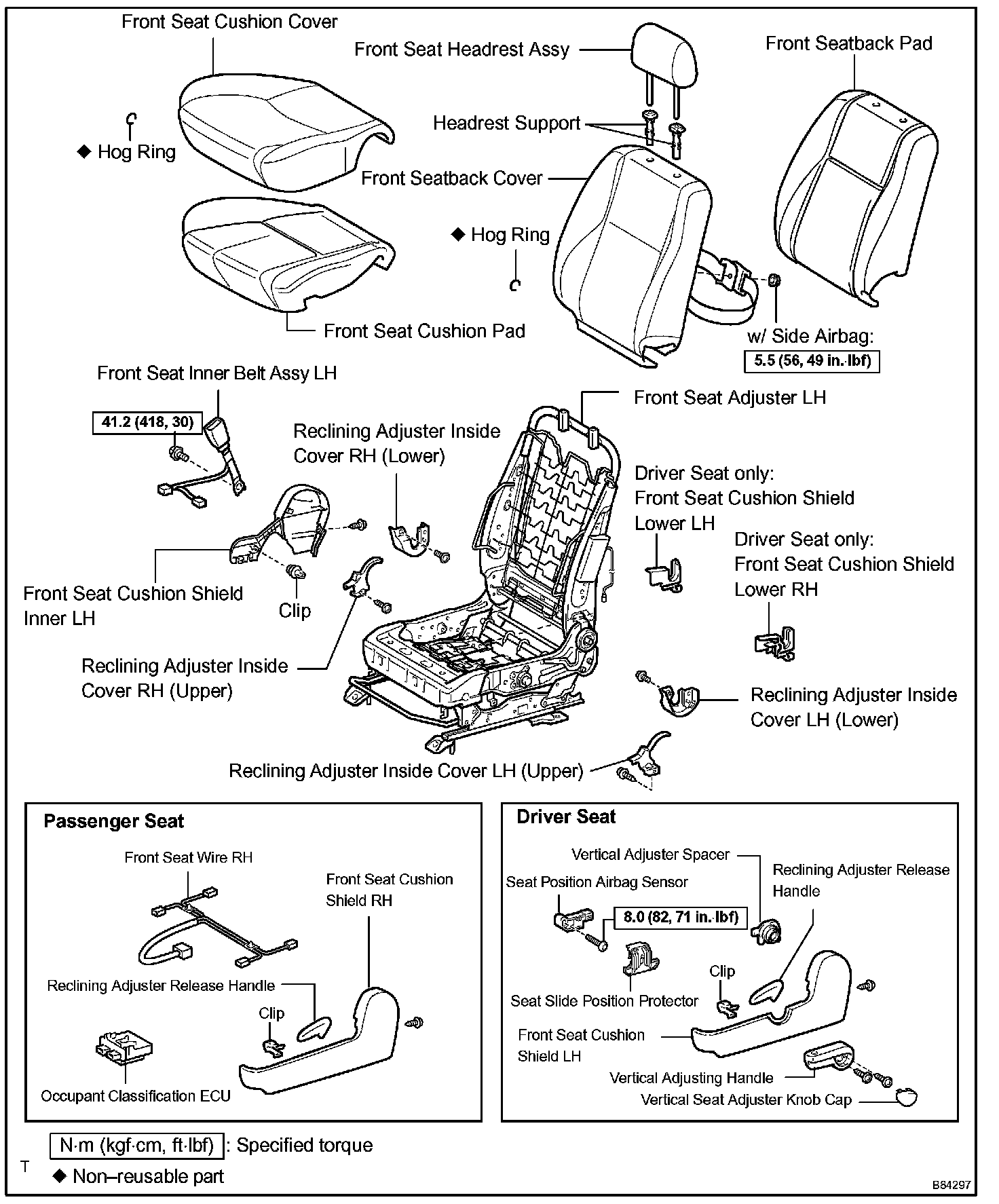

Front Seat:
Front Seat:

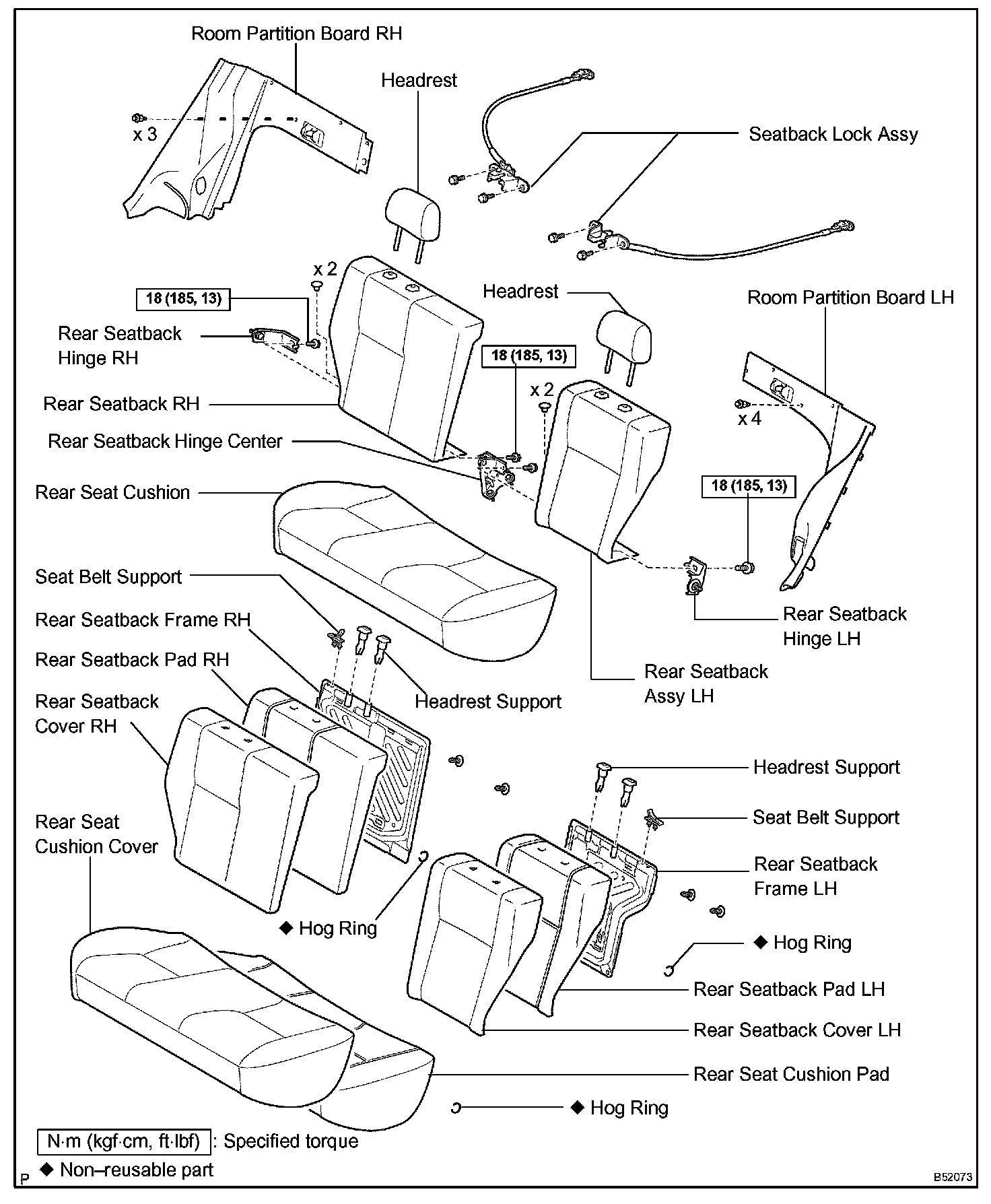

Rear Seat (Sedan With Separate Type):

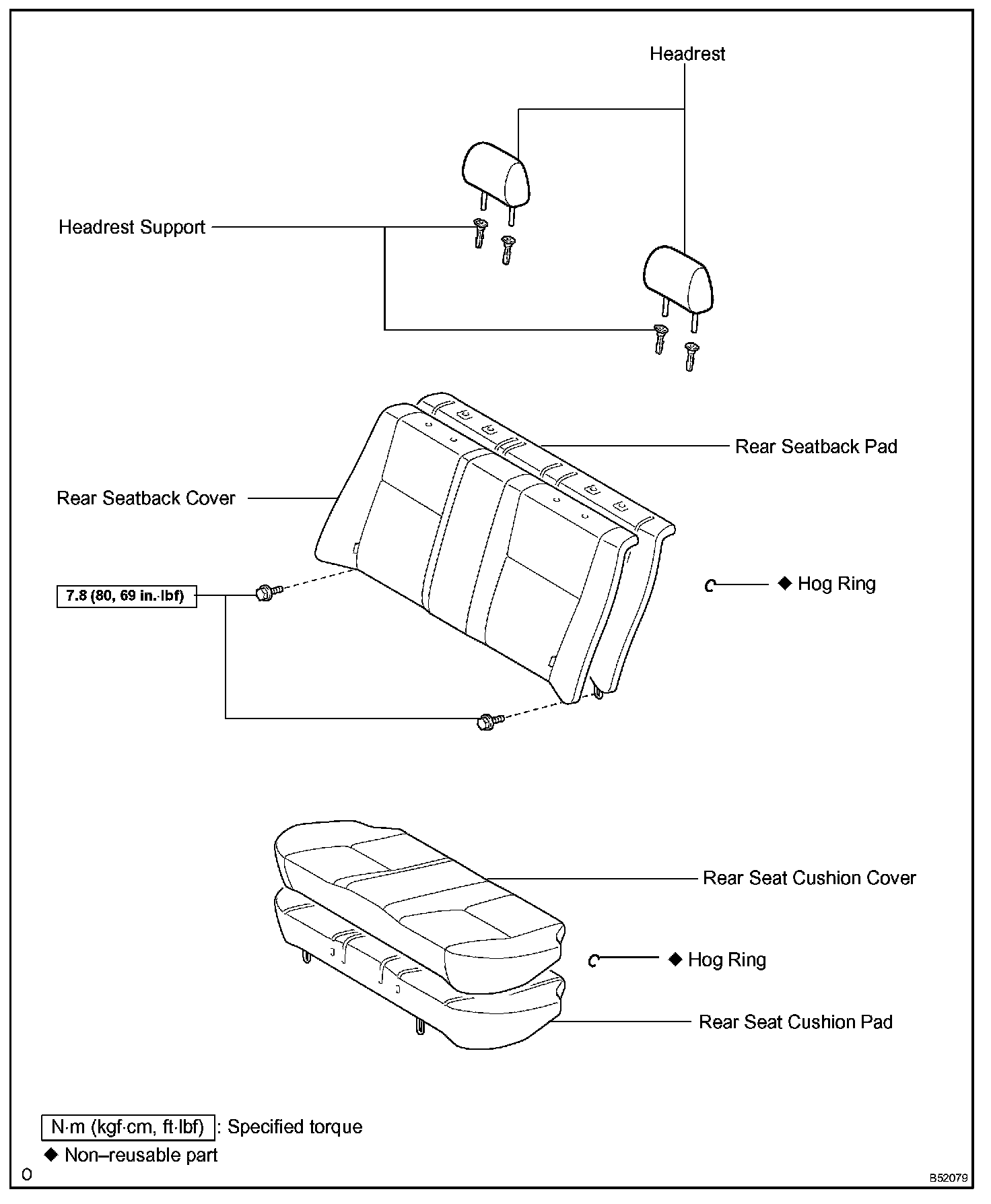

Rear Seat (Sedan With Bench Type):
