Instrument Panel Sub-ASSY Lower: Replacement
HINT:
COMPONENTS: See COMPONENTS
- TABLE OF BOLT, SCREW AND NUT NOTE: Be sure to tape the tip of the screwdriver when using it to disengage the meshing of the clips and claws.
HINT:
Indicate the bolts, screws and nuts, which are necessary for installation and removal of the instrument panel, in the illustration and the text with alphabets.
- PRECAUTION
- SEPARATE BATTERY NEGATIVE TERMINAL (See AIR BAG SAFETY PRECAUTIONS )
- PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- REMOVE HORN BUTTON ASSY (See HORN SYSTEM )
- REMOVE STEERING WHEEL ASSY (See
OVERHAUL
)
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

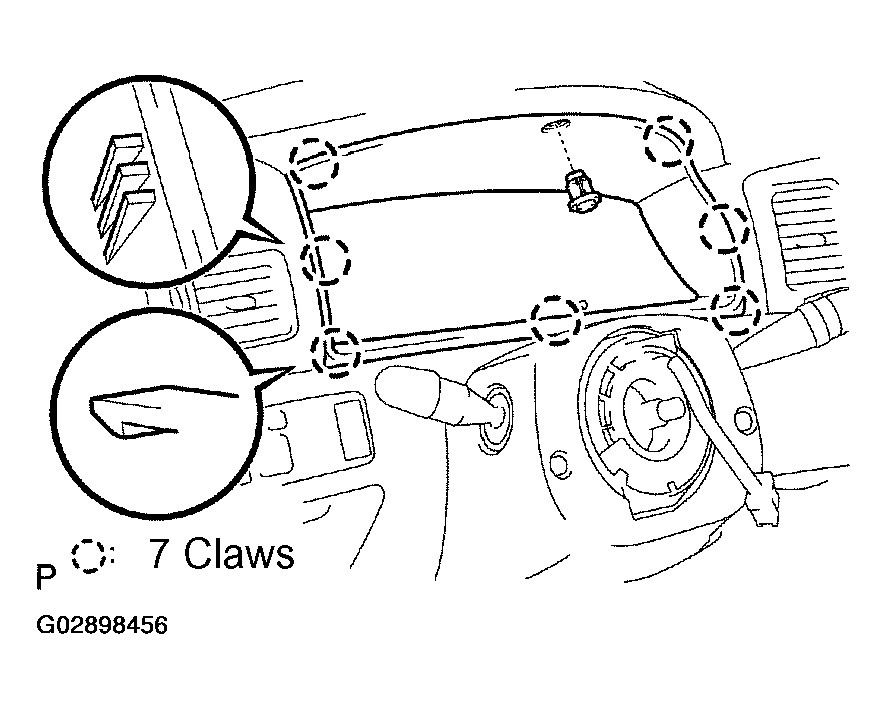

- REMOVE METER HOOD SUB-ASSY
- Remove the clip.
- Using a screwdriver, disengage the 7 claws, then remove the meter hood sub-assy.
HINT:
Tape the screwdriver tip before use.
- REMOVE COMBINATION METER ASSY
- Remove the screw < L >.

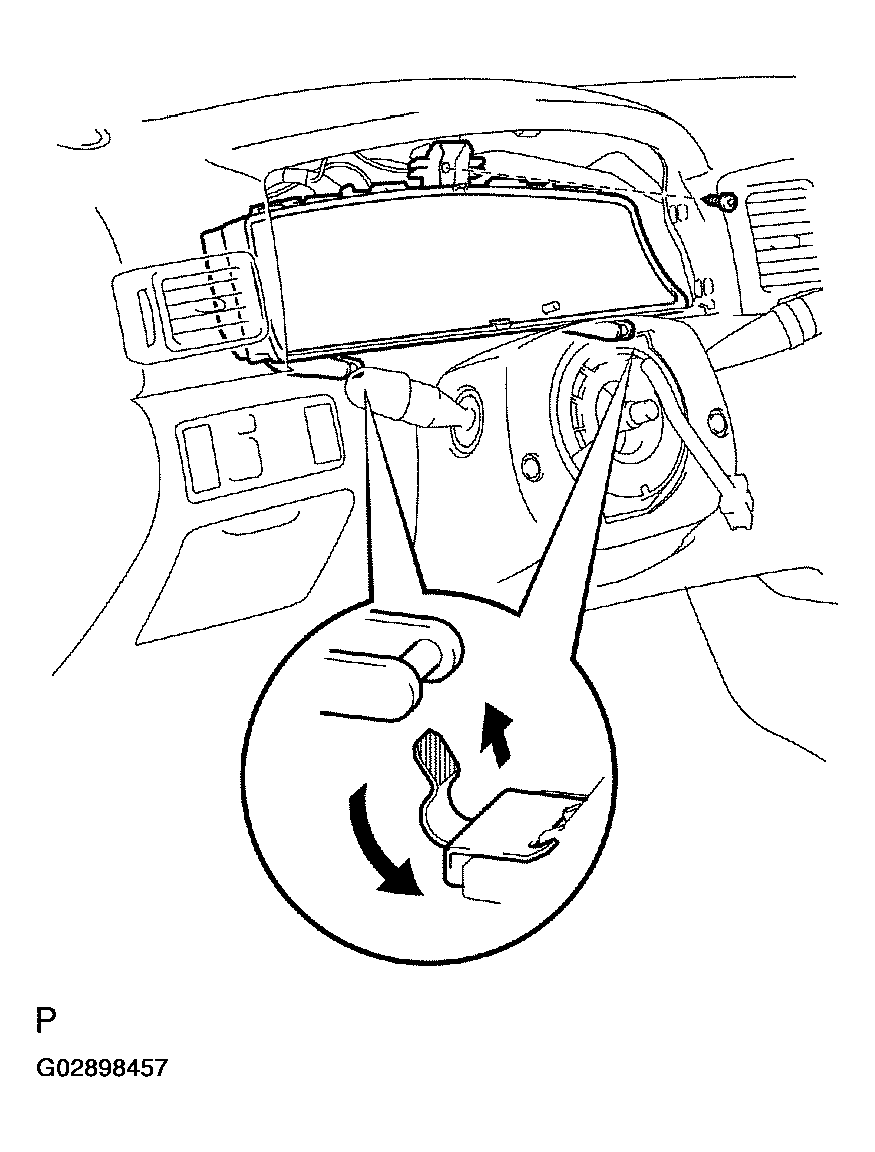

- Disengage the 2 claws as shown in the illustration.
- Disconnect the connector, then remove the combination meter assy.
- REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1

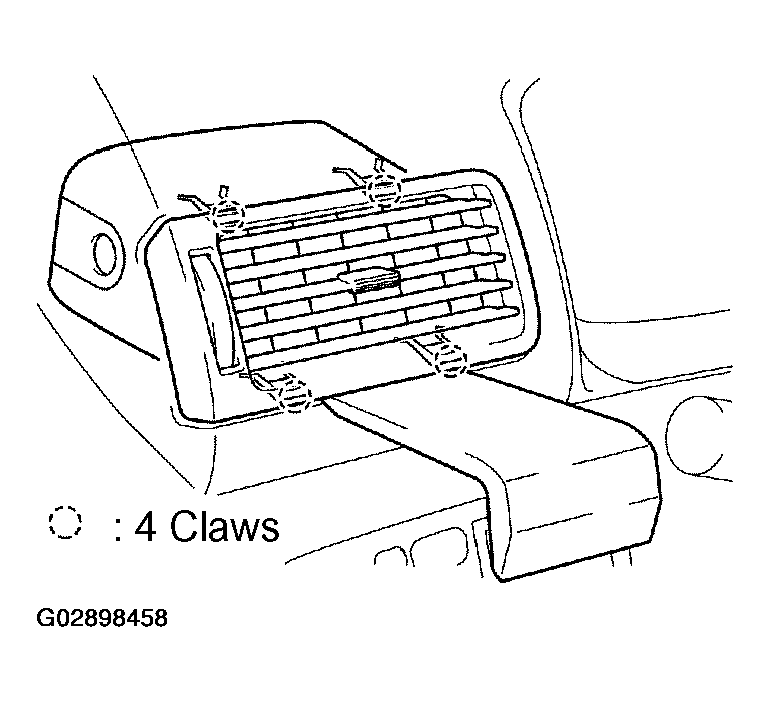

- Using a moulding remover, disengage the 4 claws, then remove the instrument panel register assy No.1.
- REMOVE INSTRUMENT PANEL REGISTER ASSY NO.3
- REMOVE FLOOR SHIFT, SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE)

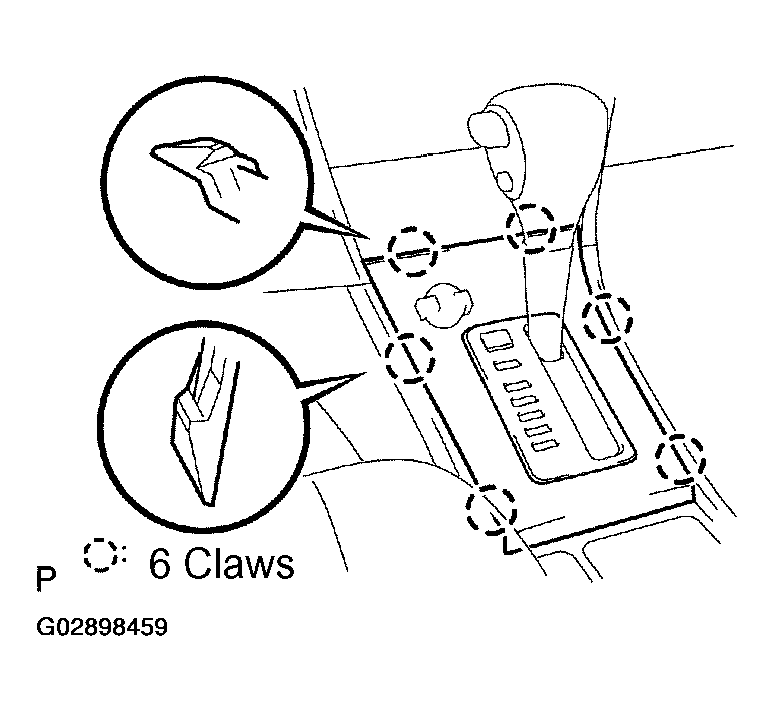

- REMOVE CONSOLE PANEL UPPER
- Using a screwdriver, disengage the 6 claws.
HINT:
Tape the screwdriver tip before use.
- Disconnect the connector, then remove the console panel upper.
- Using a screwdriver, disengage the 6 claws.
- REMOVE HEATER CONTROL KNOB
- REMOVE INSTRUMENT CLUSTER FINISH PANEL
- Remove the screw < J >.

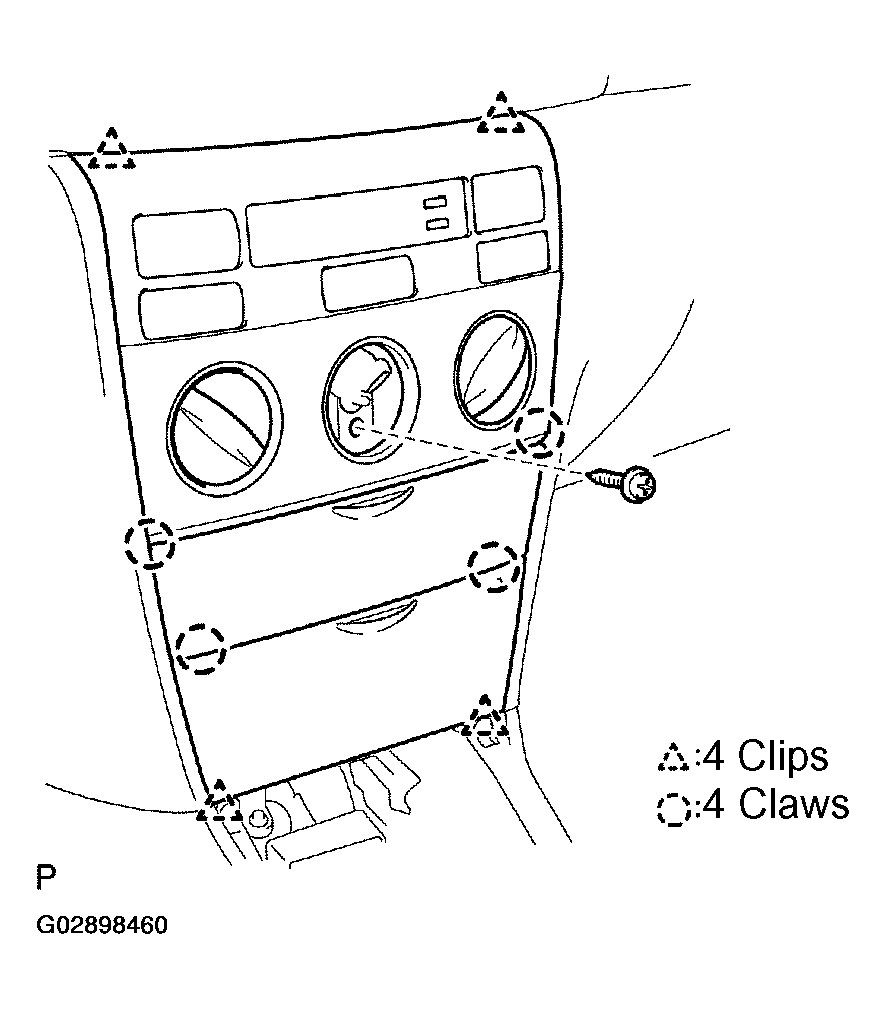

- Using a screwdriver, disengage the 4 clips and 4 claws, then remove the instrument cluster finish panel.
HINT:
Tape the screwdriver tip before use.
- Disconnect the connectors.
NOTE: Do not pull the lid of auxiliary box. - REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
- Remove the 4 screws < K >.

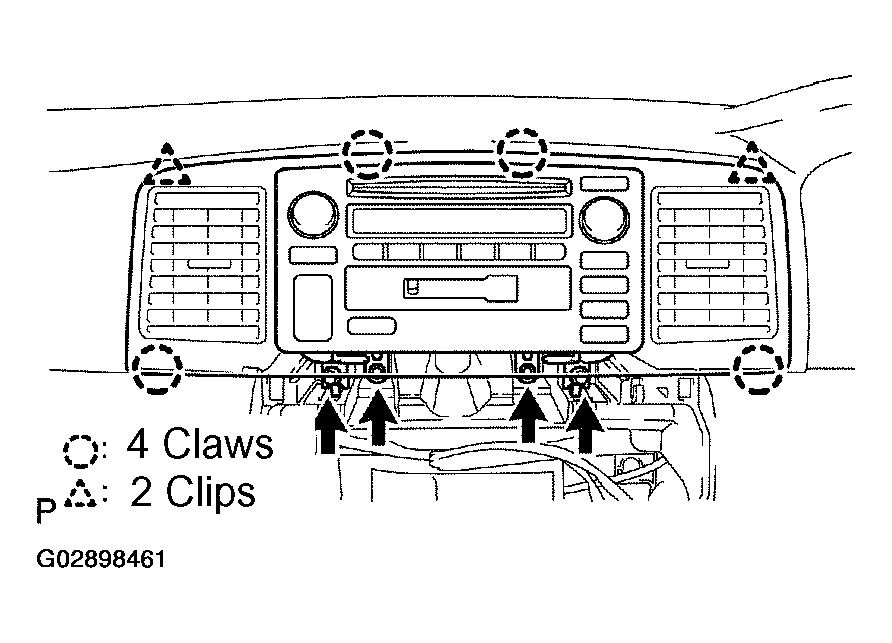

- Using a screwdriver, disengage the 2 clips and 4 claws, then remove the instrument cluster finish panel sub-assy center with radio receiver assy.
HINT:
Tape the screwdriver tip before use.
- Disconnect the connectors.
- REMOVE GLOVE COMPARTMENT DOOR ASSY
- Remove the screw < I > from the glove compartment door stopper sub-assy.
- Deform the upper part of the glove compartment door assy to release the stoppers.
- Pull the glove compartment door assy upward to remove it.
- REMOVE FRONT PILLAR GARNISH LH
- Disengage the clip.
- Pull the front pillar garnish LH upward and disengage the 2 claws, then remove the front pillar garnish LH.
- REMOVE FRONT PILLAR GARNISH RH
- SEPARATE PASSENGER AIRBAG CONNECTOR (See REMOVAL & INSTALLATION )

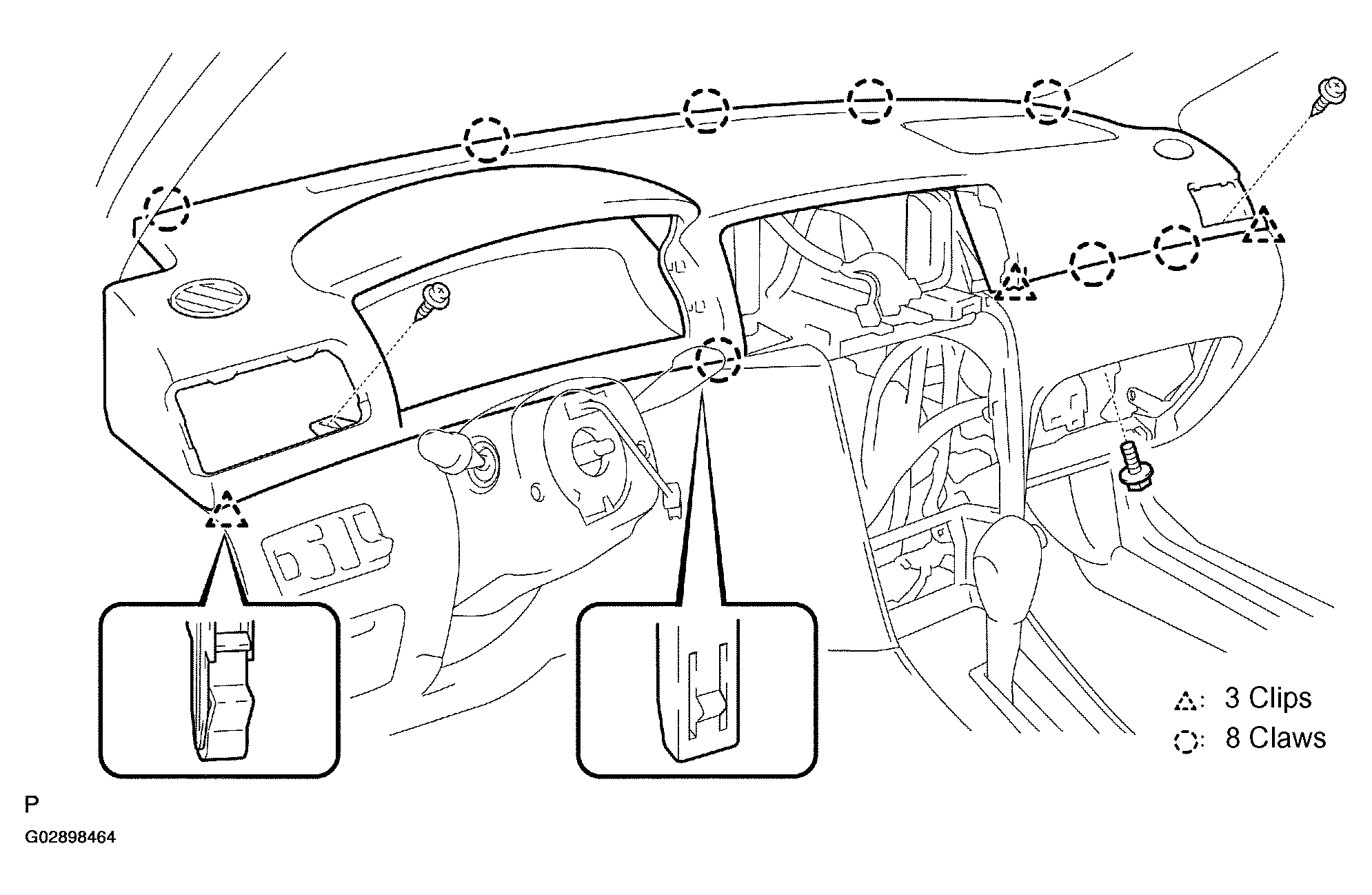

- REMOVE INSTRUMENT PANEL SUB-ASSY UPPER
- Remove the bolt < D > and 2 screws < J >.
- Using a moulding remover, disengage the 3 clips and 8 claws.
- Remove the instrument panel sub-assy upper.
- REMOVE HEATER CONTROL & ACCESSORY ASSY (See REPLACEMENT )
- REMOVE STEERING COLUMN COVER (See OVERHAUL )
- REMOVE HEADLAMP DIMMER SWITCH ASSY (See REPLACEMENT )
- REMOVE WINDSHIELD WIPER SWITCH ASSY (See REPLACEMENT )
- REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY
- Disengage the clip, then remove the glove compartment door stopper sub-assy.
- REMOVE PARKING BRAKE HOLE COVER SUB-ASSY
- Using a screwdriver, disengage the 4 claws, then remove the parking brake hole cover sub-assy.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, disengage the 4 claws, then remove the parking brake hole cover sub-assy.
- REMOVE CONSOLE BOX CARPET
- REMOVE CONSOLE BOX SUB-ASSY REAR (M/T TRANSAXLE)
- REMOVE CONSOLE BOX SUB-ASSY REAR
- A/T Transaxle:

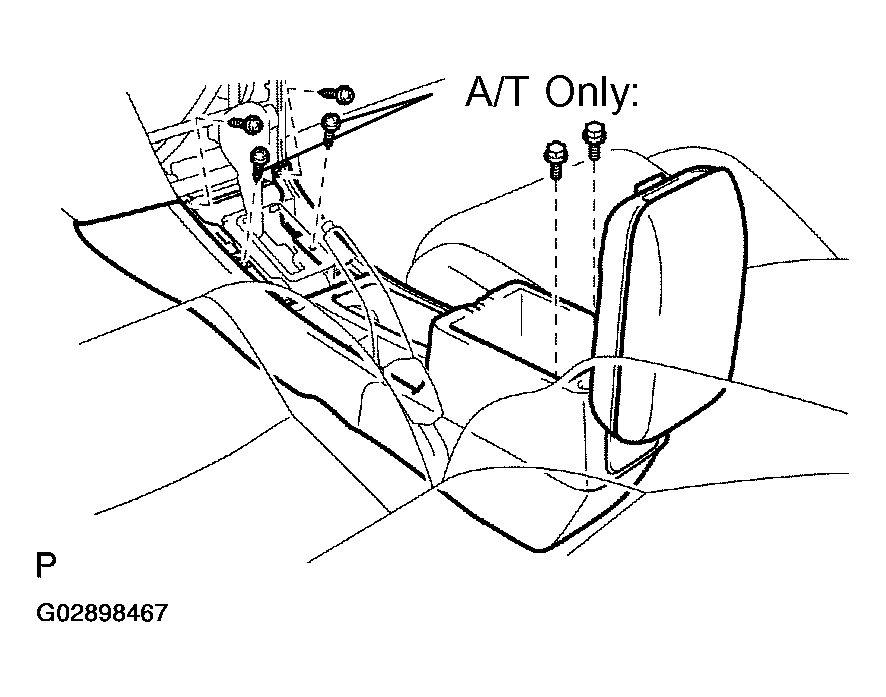

Remove the 2 bolts < F >, 4 screws < J > and console box sub-assy rear.
- M/T Transaxle:
Remove the 2 bolts < F >, 2 screws < J > and console box sub-assy rear.
- A/T Transaxle:
- REMOVE FRONT DOOR SCUFF PLATE LH

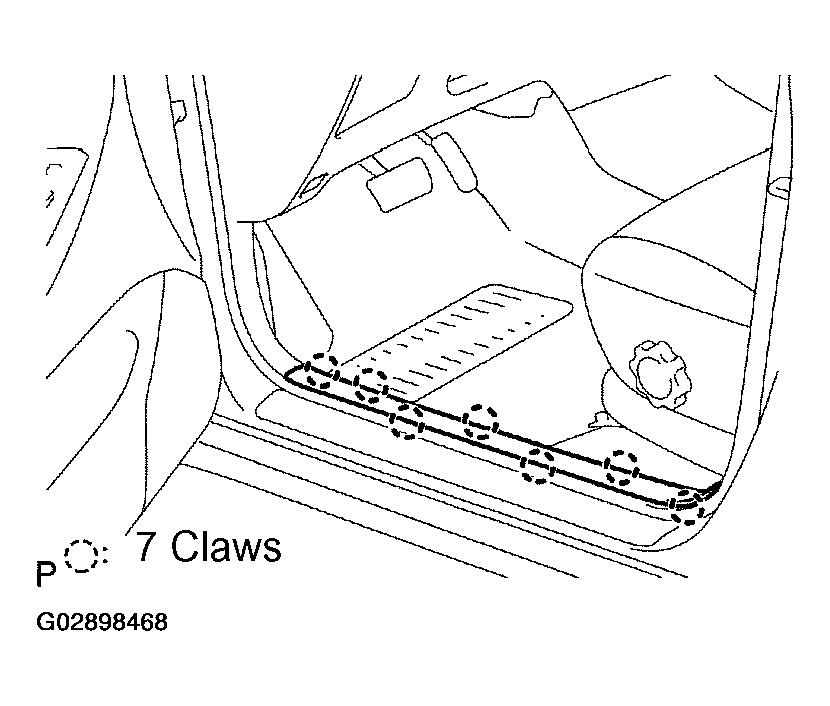

- Using a screwdriver, disengage the 7 claws, then remove the front door scuff plate LH.
HINT:
Tape the screwdriver tip before use.
- REMOVE FRONT DOOR SCUFF PLATE RH
- REMOVE COWL SIDE TRIM BOARD LH

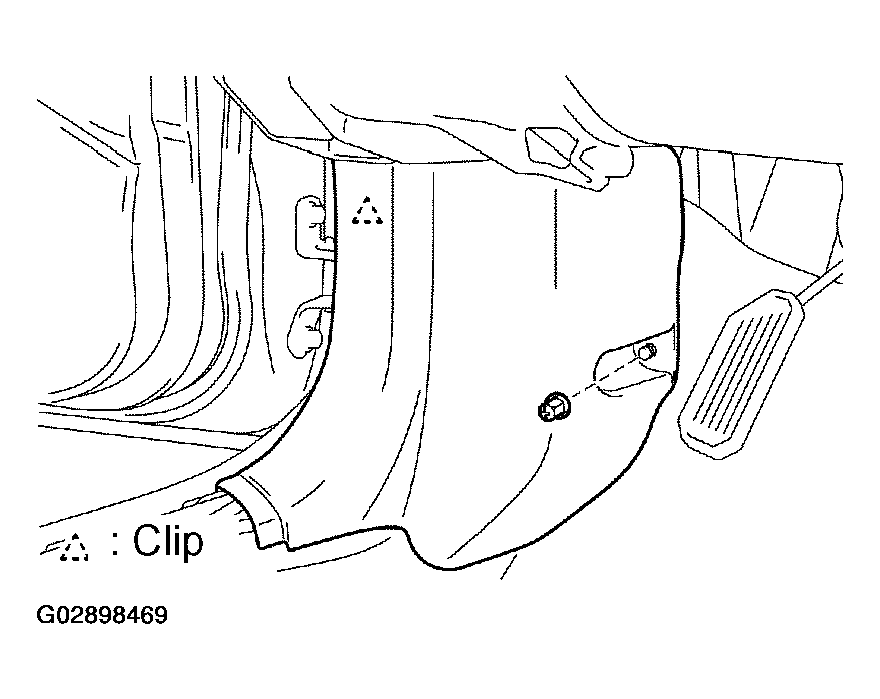

- Remove the clip.
- Disengage the clip, then remove the cowl side trim board LH.
- REMOVE COWL SIDE TRIM BOARD RH

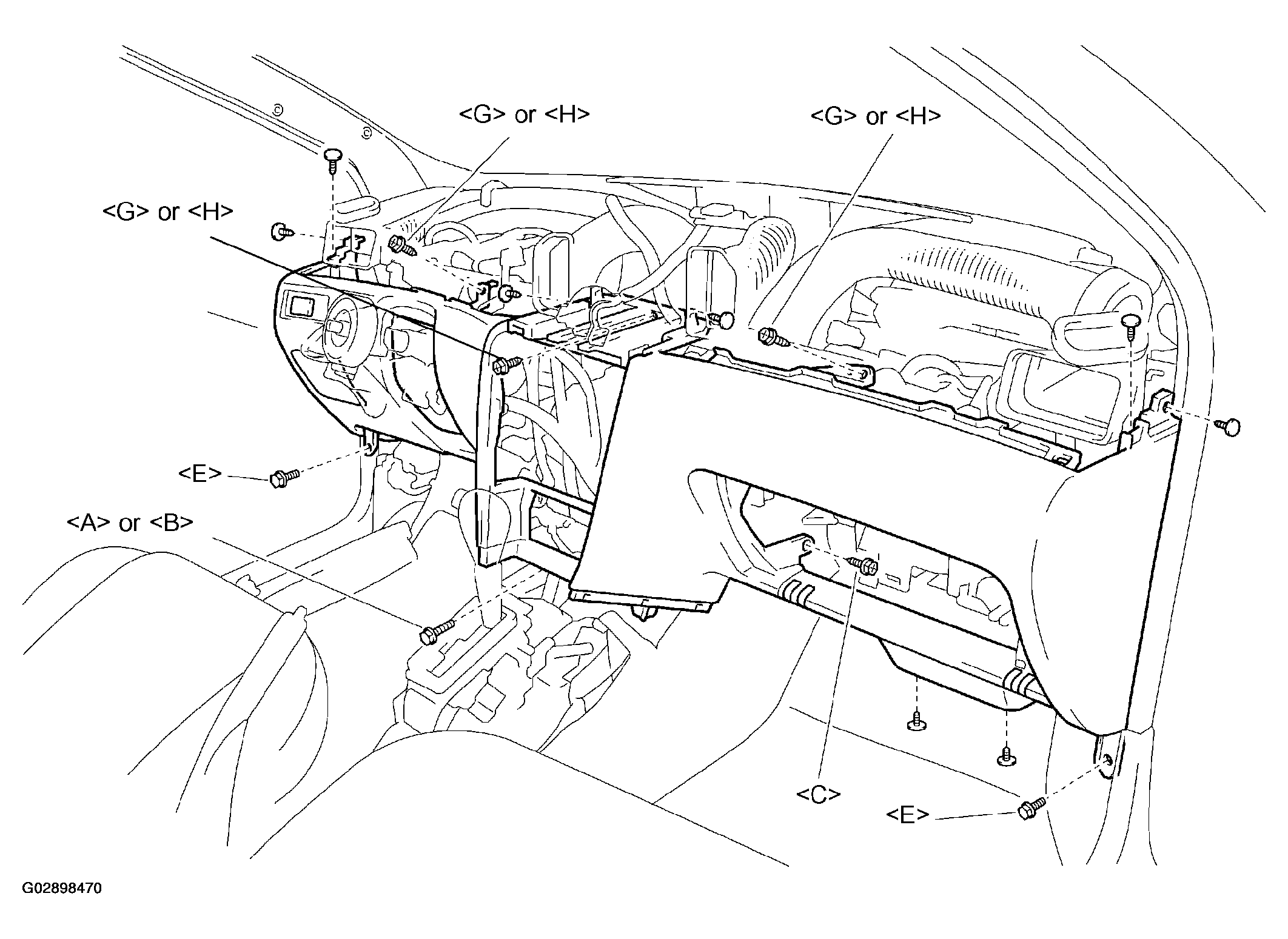

- REMOVE INSTRUMENT PANEL SUB-ASSY LOWER
- Disconnect the DLC3 connector.

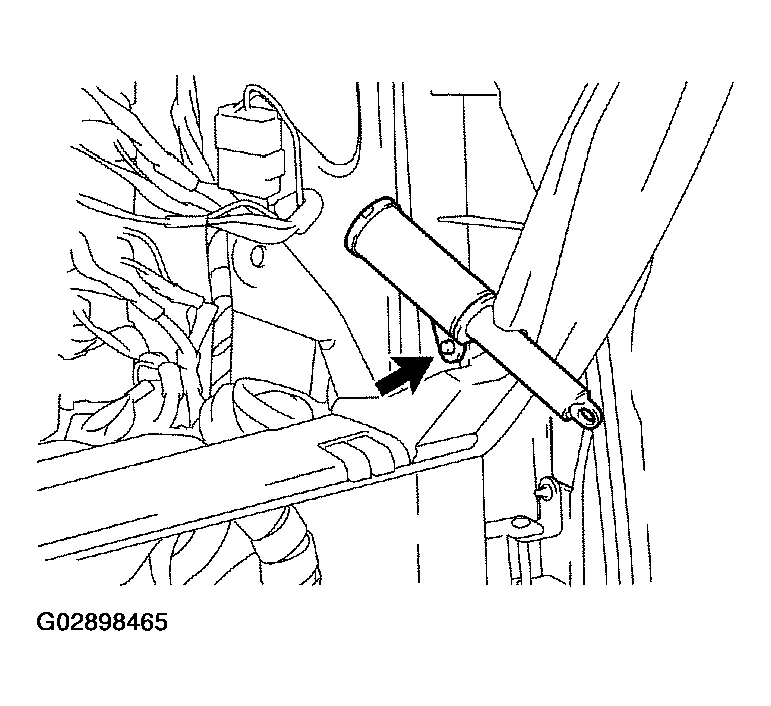

- Remove the hood lock control lever.
- Remove the 3 screws < G > or < H >.
- Remove the 2 bolts < E >.
- Remove the bolt < A > or < B >.
- Remove the bolt < C >.
- Remove the 8 clips and instrument panel sub-assy lower.
- REMOVE INSTRUMENT PANEL BOX
- REMOVE INSTRUMENT PANEL BOX SPRING
- INSTALL HEATER CONTROL & ACCESSORY ASSY (See REPLACEMENT )
- INSTALL INSTRUMENT PANEL SUB-ASSY UPPER
- Install the instrument panel sub-assy upper.
- Install the bolt < D > and 2 screws < J >.
Torque:
Bolt < D >: 20 N.m (204 kgf.cm, 15 ft.Ibf)
- INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
- CENTER SPIRAL CABLE (See SPIRAL CABLE )
- INSTALL STEERING WHEEL ASSY (See OVERHAUL )
- INSPECT STEERING WHEEL CENTER POINT
- INSPECT HORN BUTTON ASSY (See HORN SYSTEM )
- INSTALL HORN BUTTON ASSY (See HORN SYSTEM )
- INSPECT SRS WARNING LIGHT
