Throttle Body ASSY: Components

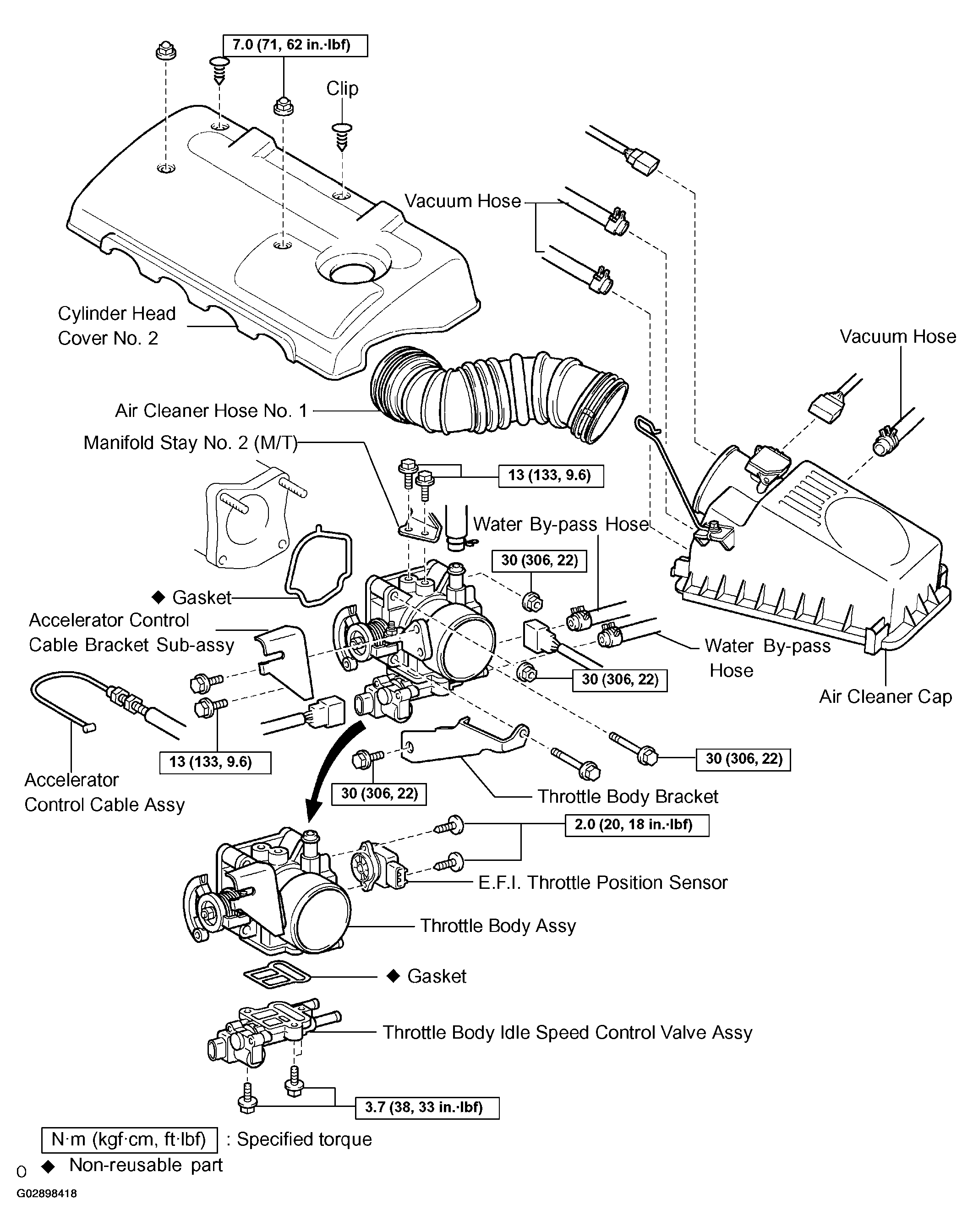

Fig 1: Exploded View Of Throttle Body Assy Components
G02898418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
