Engine Assembly: Inspection

  1. INSPECT COOLANT (See  ON-VEHICLE INSPECTION  )
  2. INSPECT ENGINE OIL (See  ON-VEHICLE INSPECTION  )
  3. INSPECT BATTERY (See  REMOVAL & INSTALLATION  )
  4. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSY
  5. INSPECT SPARK PLUG (See  IGNITION SYSTEM  )
  6. INSPECT FAN AND GENERATOR V BELT

    HINT:

    You don't need to check the belt deflection because auto tensioner is adopted.

  7. INSPECT IGNITION TIMING
    1. Warm up engine.
    2. When using hand held tester or OBDII scan tool.
      1. Connect the hand held tester or OBDII scan tool to the DLC3.

      HINT:

      Please refer to the hand held tester or OBDII scan tool operator's manual for further details.

    3. When not using hand held tester or OBDII scan tool.
      1. Using SST, connect terminal 13 (TC) and 4 (CG) of the DLC3.

        SST 09843-18040

        NOTE:
        • Be sure not to connect incorrectly. It causes breakage of the engine.
        • Turn OFF all electrical systems.
        • Operate the inspection when the cooling fan motor is turned OFF
        Fig 1: Connecting Terminal TC And CG Of DLC3
        G02898795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 nuts, 2 clips and cylinder head cover.
      3. Pull out the wire harness as shown in the illustration.
      4. Connect the clip of the timing light to the engine.
        NOTE:
        • Use a timing light which can detect the first signal.
        • After checking, be sure to tape the wire harness.

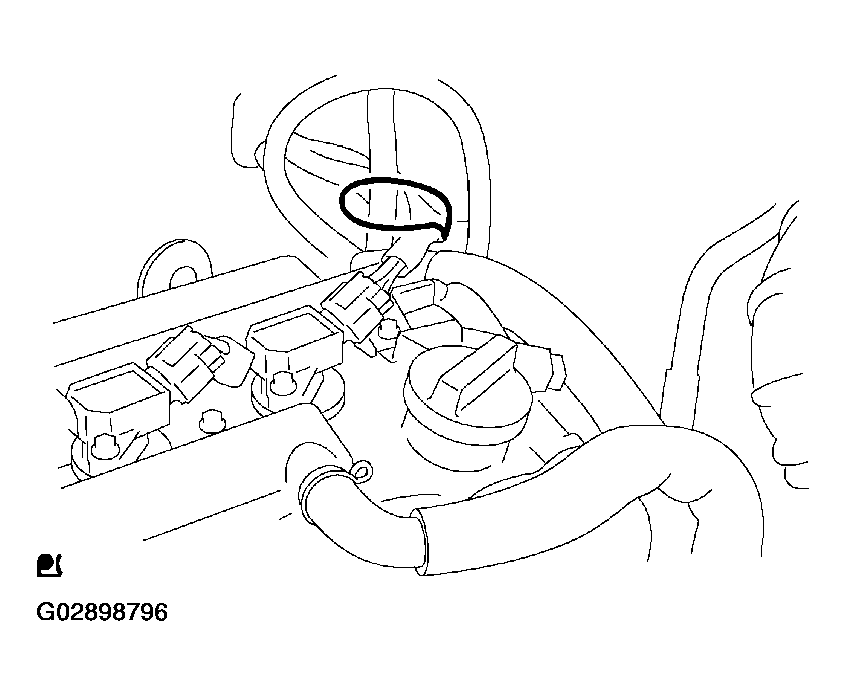

        Fig 2: Pulling Out Wire Harness
        G02898796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Inspect ignition timing at idle.

        Ignition timing: 8 - 12°BTDC

        NOTE: When checking the ignition timing, the transmission is at neutral position.

        HINT:

        After engine RPM is kept at 1,000 - 1,300 RPM for 5 seconds, check that it returns idle speed.

      6. Disconnect the terminal 13 (TC) and 4 (CG) of the DLC3.
      7. Inspect ignition timing at idle.

        Ignition timing: 10 -18 °BTDC

      8. Confirm that ignition timing moves to advanced angle side when the engine RPM is increased.
      9. Remove the timing light.
      10. Install cylinder head cover No.2 with the 2 nuts and 2 clips.

        Torque: 7.0 N.m (71 kgf.cm, 62 in..lbf)

  8. INSPECT ENGINE IDLE SPEED
    1. Warm up engine.
    2. When using hand-held tester or OBDII scan tool.
      1. Connect the hand-held tester or OBDII scan tool to the DLC3.

      HINT:

      Please refer to the hand held tester or OBDII scan tool operator's manual for further details.

    3. Check the idle speed.

      Idle speed: 650 - 750 RPM

    NOTE:
    • Check idle speed with cooling fan OFF.
    • Switch off all accessories and air conditioning.
  9. INSPECT COMPRESSION
    1. Warm up and stop engine.
    2. Remove ignition coil.
    3. Remove spark plugs.
    4. Inspect cylinder compression pressure.

      SST 09992-00500

      1. Insert a compression gauge into the spark plug hole.
      2. Fully open the throttle.
      3. While cranking the engine, measure the compression pressure.

        Compression pressure iquest

        1,300 kPa (13.3 kgf.cm 2  , 189 psi)

        Minimum pressure: 1,000 kPa (10.2 kgf.cm 2  , 145 psi)

        Difference between each cylinder:

        100 kPa (1.0 kgf.cm 2  , 15 psi)

        NOTE:
        • Always use a fully charged battery to obtain engine speed of 250 RPM or more.
        • Check other cylinder's compression pressure in the same way.
        • This measurement must be done in as short a time as possible.

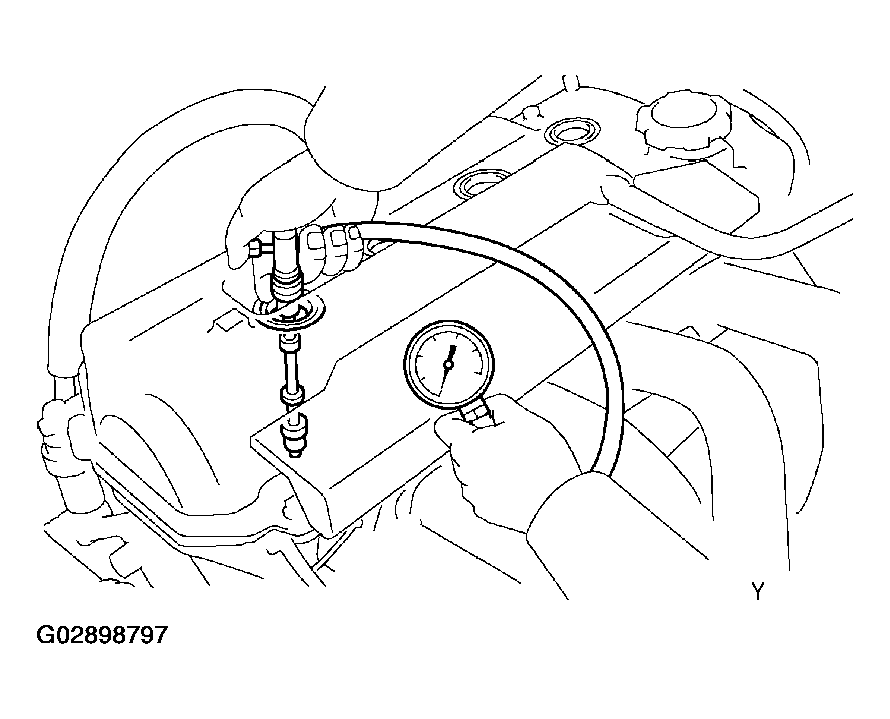

        Fig 3: Inspecting Cylinder Compression Pressure
        G02898797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. If the cylinder compression in one more cylinders is low, pour a small amount of engine oil into the cylinder through the spark plug hole and repeat steps (1) through (3) for cylinders with low compression.

    HINT:

    • If adding oil helps the compression, it is likely that the piston rings and/or cylinder bore are worn or damaged.
    • If pressure stays low, a valve may be sticking or seating is improper, or there may be leakage past the gasket.
  10. INSPECT CO/HC
    1. Start the engine.
    2. Race engine at 2,500 RPM for approx. 180 seconds.
    3. Insert CO/HC meter testing probe at least 40 cm (1.3 ft) into tailpipe during idling.
    4. Immediately check CO/HC concentration at idle and/or 2,500 RPM.

      HINT:

      • Complete the measuring within 3 minutes.
      • When doing the 2 mode (idle and 2,500 RPM) test, these measuring orders are prescribed by the applicable local regulations.
    5. If the CO/HC concentration does not comply with regulations, troubleshoot in the order given below.
      1. Check heated oxygen sensor operation. (See INSPECTION )
      2. See the table below for possible causes, and then inspect and correct the applicable causes if necessary.

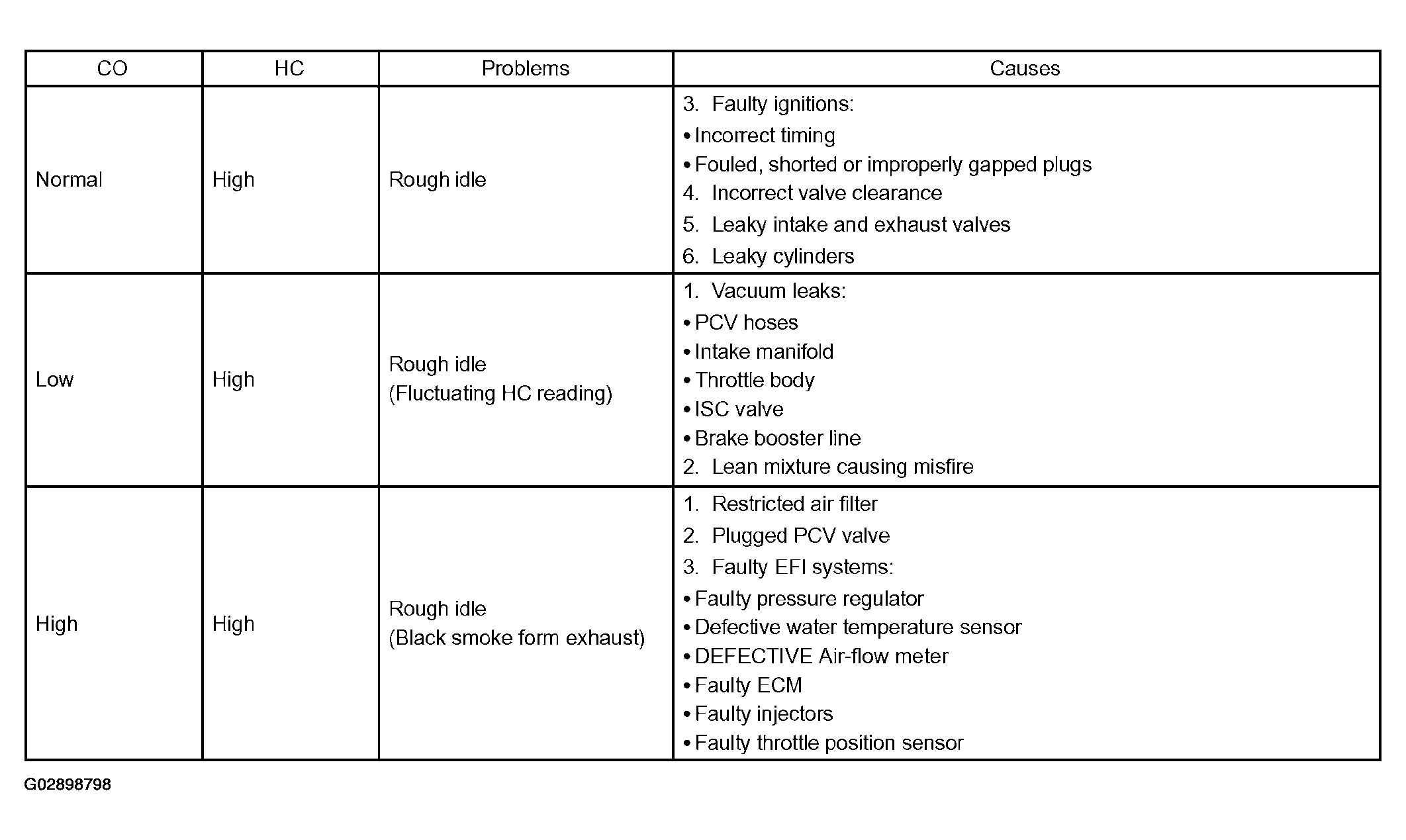

    Fig 4: CO And HC Problems And Causes Chart
    G02898798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
