Mil Circuit: Wiring Diagram

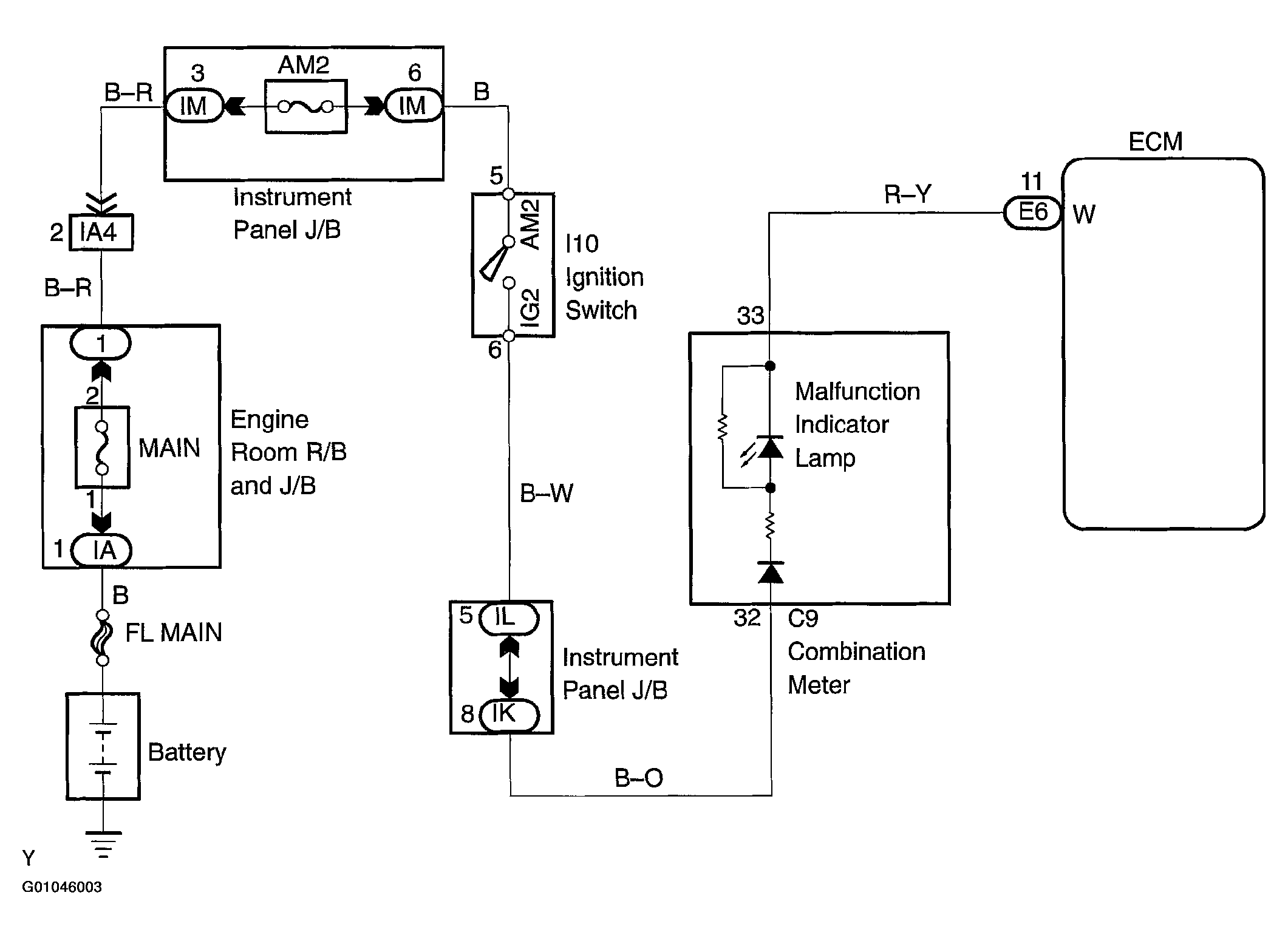

Fig 1: MIL Circuit Wiring Diagram
G01046003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
