Cruise Control Switch

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

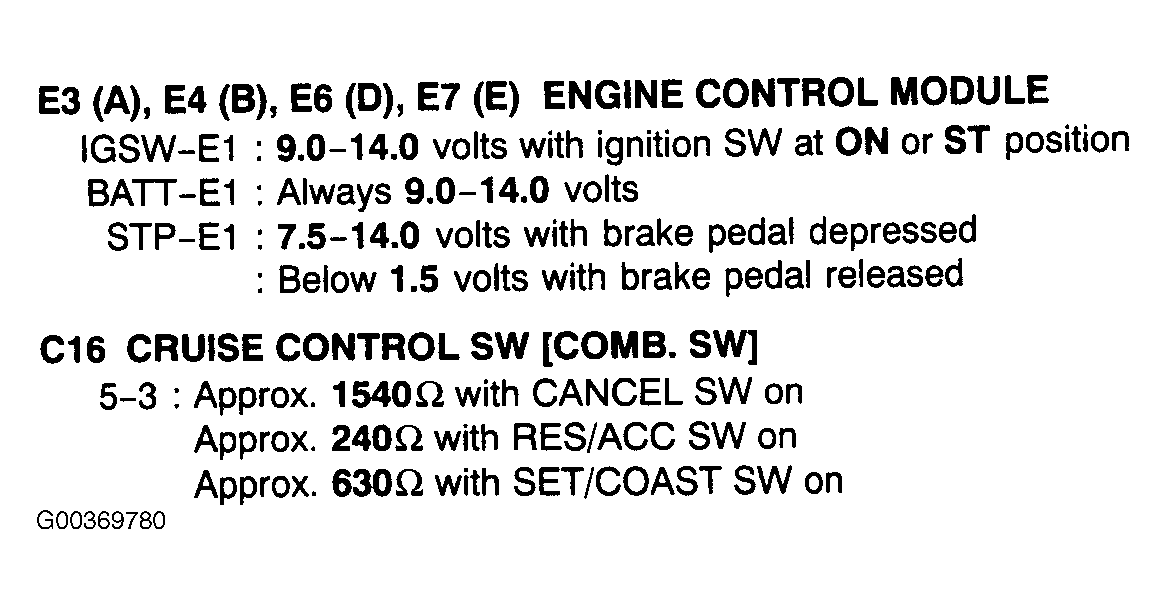

For cruise control switch resistance values, see Figure.
