Section 391 (Stop Light System): Inspection
WARNING: This page is about a different car, the 2004 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

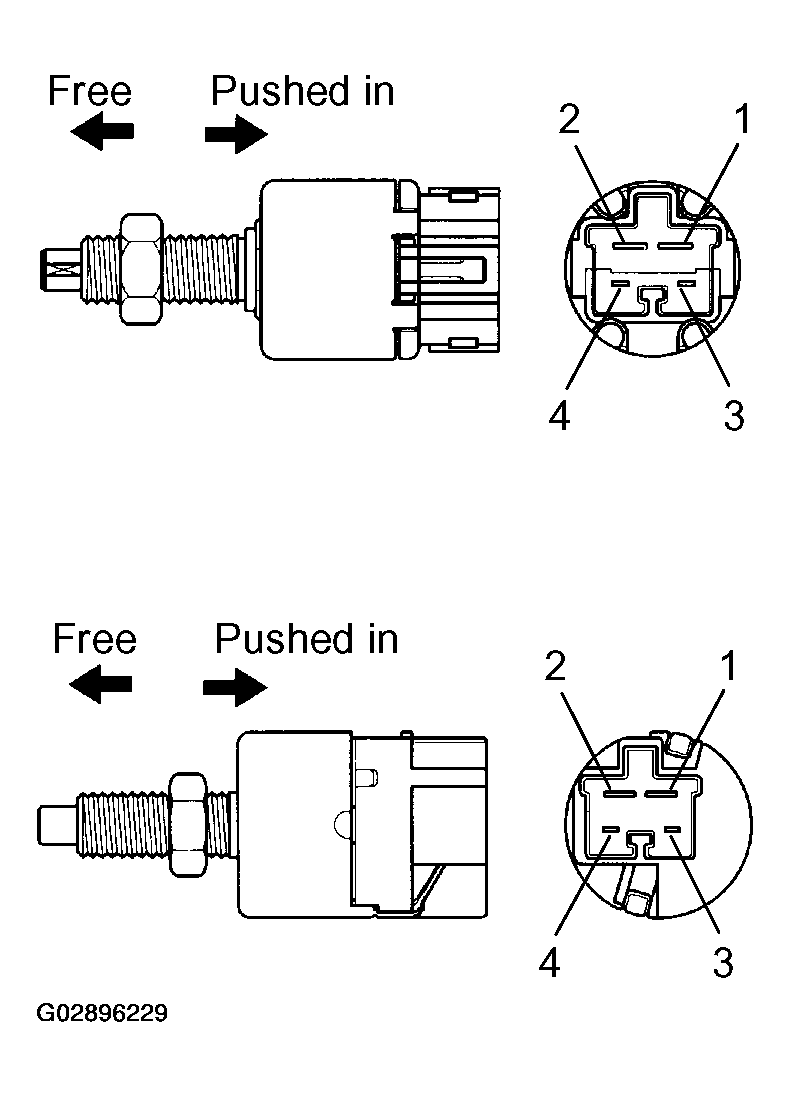

INSPECT STOP LIGHT SWITCH CONTINUITY
SPECIFICATION CONDITION CHART
| Switch position | Tester connection | Specified condition |
|---|---|---|
| Switch pin pushed in (Pedal released) | - | No continuity |
| Switch pin free (Pedal depressed) | 1 - 2 | Continuity |
If continuity is not as specified, replace the switch.

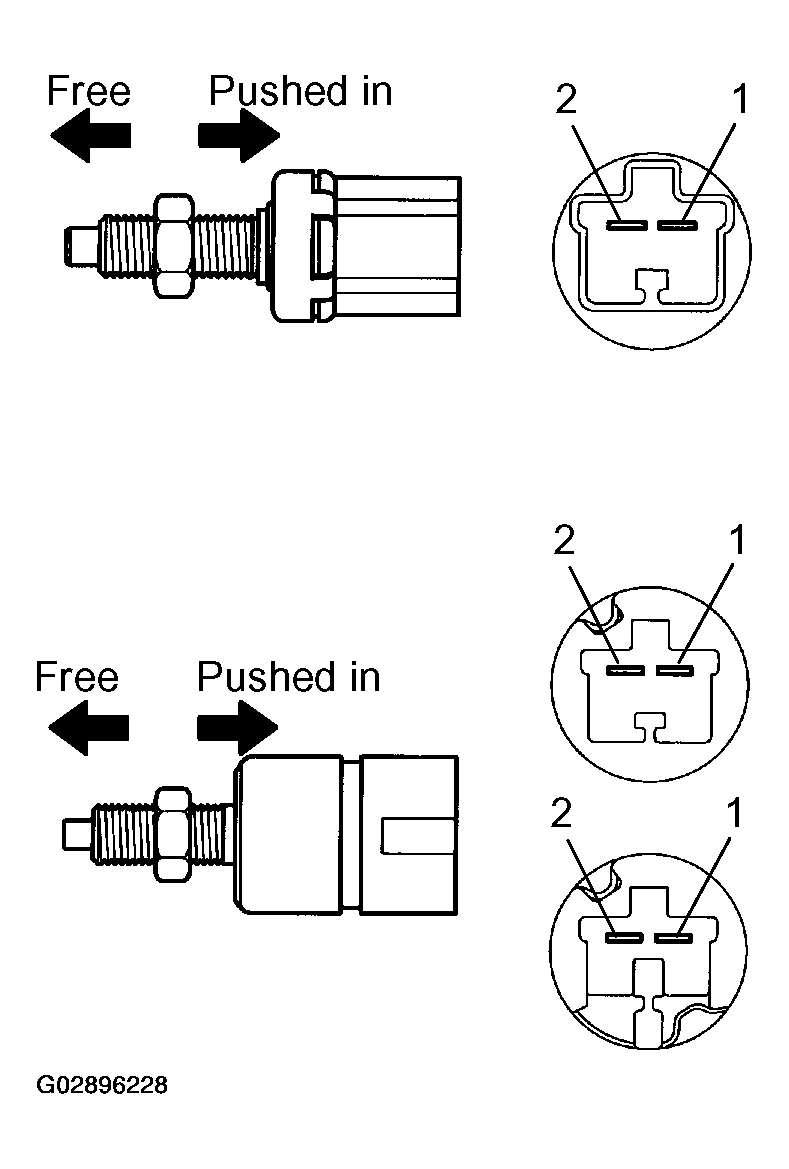

SPECIFICATION CONDITION CHART
| Switch position | Tester connection | Specified condition |
|---|---|---|
| Switch pin pushed in (Pedal released) | - | No continuity |
| Switch pin free (Pedal depressed) | 1 - 2 | Continuity |
If continuity is not as specified, replace the switch.
