Glossary Of Sae And TOYOTA Terms

This glossary lists all SAE-J1930 terms and abbreviation used in this information in compliance with SAE recommendations as well as their TOYOTA equivalents.

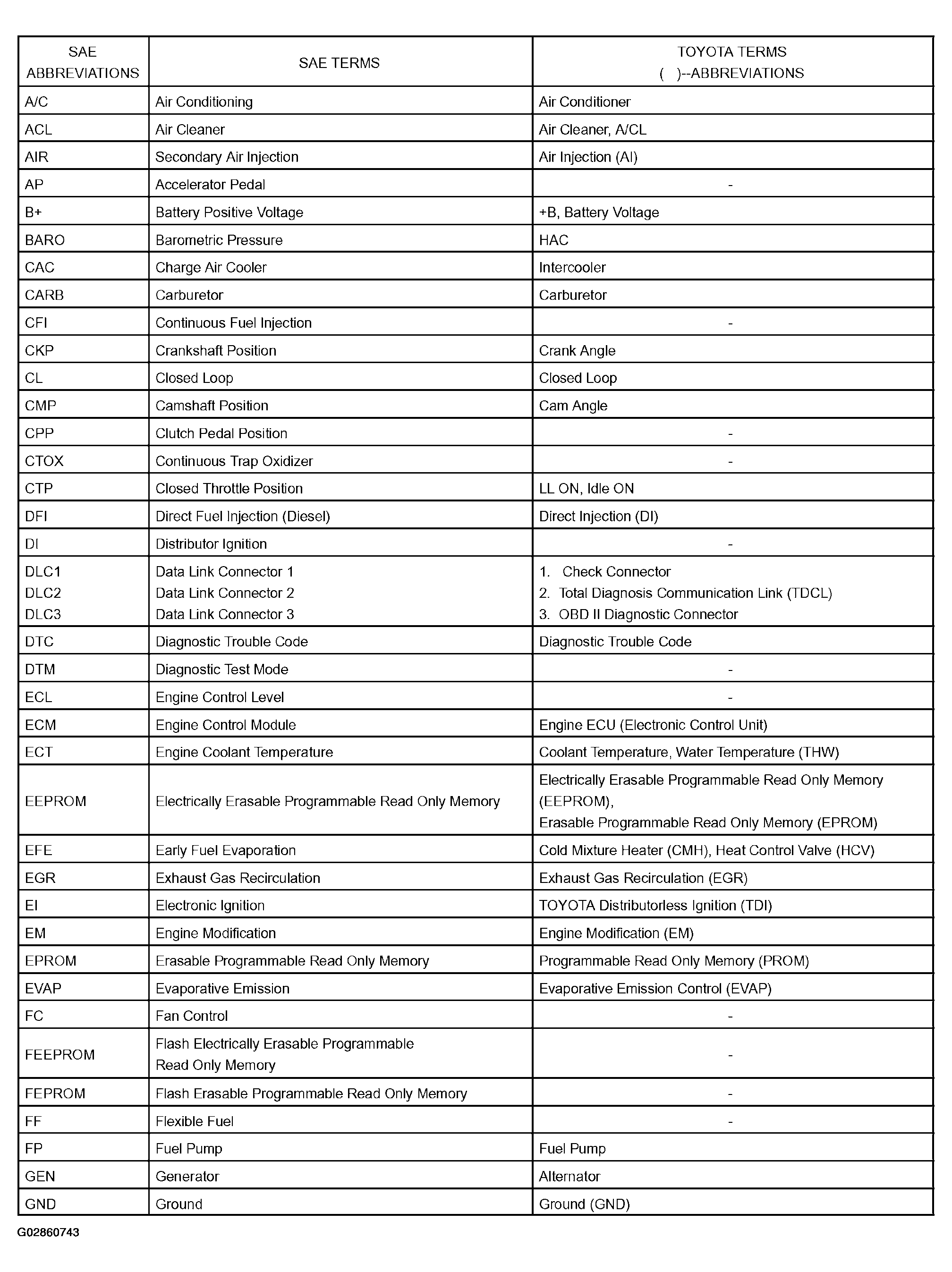

Fig 1: Glossary Of SAE And Toyota Terms Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

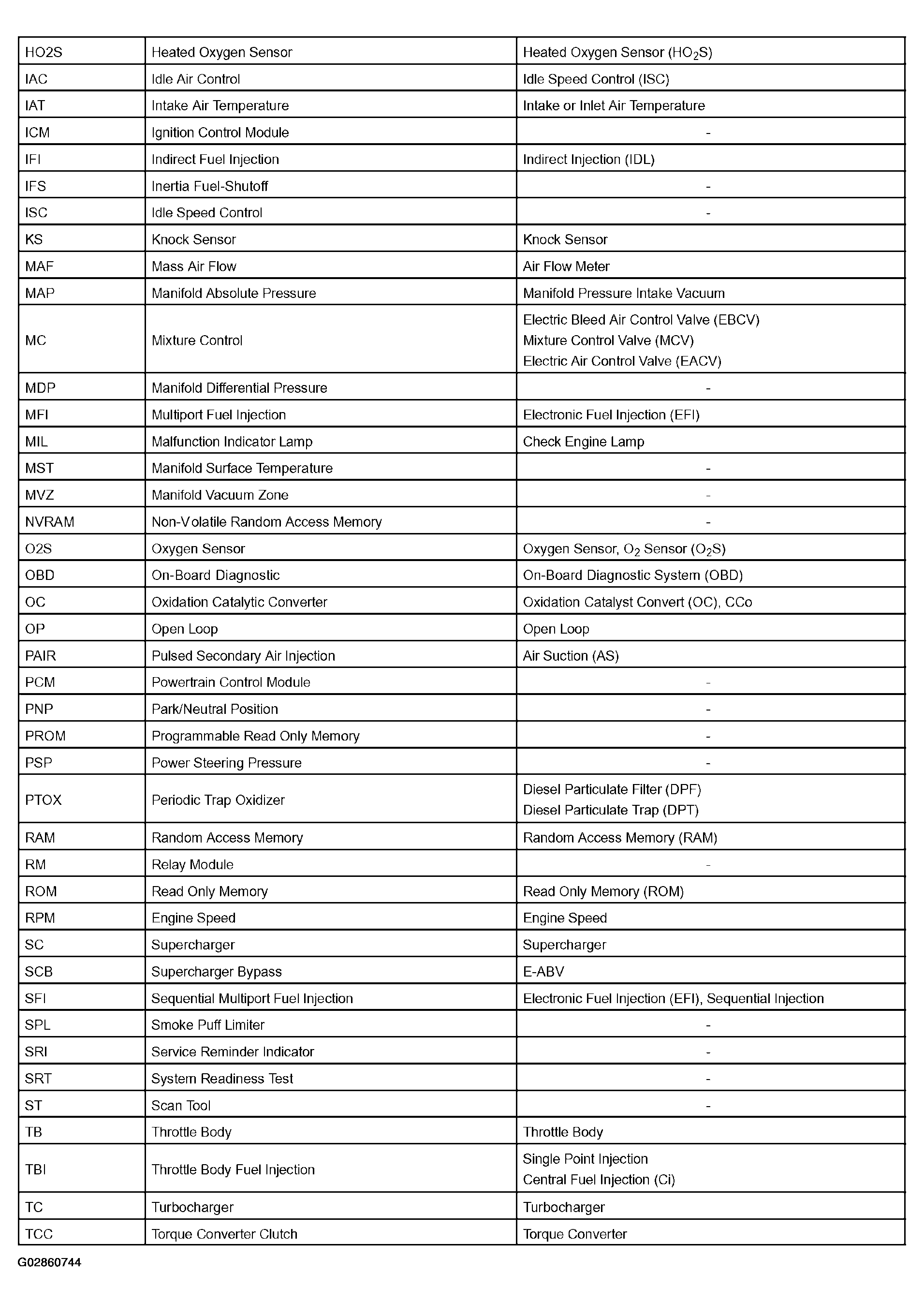

Fig 2: Glossary Of SAE And Toyota Terms Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

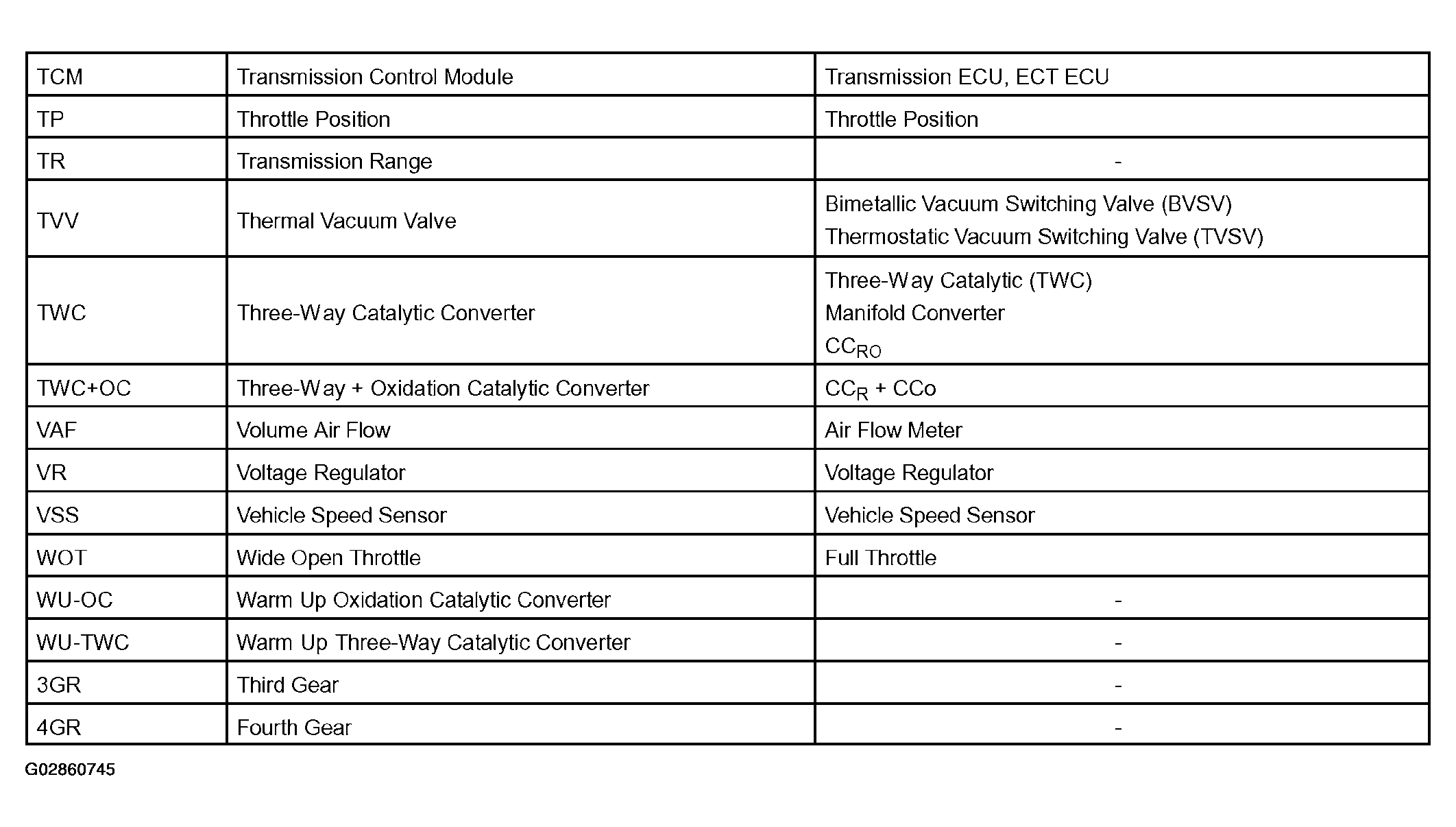

Fig 3: Glossary Of SAE And Toyota Terms Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
