On-Vehicle Inspection

CHECK PLAY OF ACCELERATOR AUTO DRIVE CABLE ASSY
1. Push the wire into the cable so as not to move the throttle link and put a mark on the position shown in the illustration.

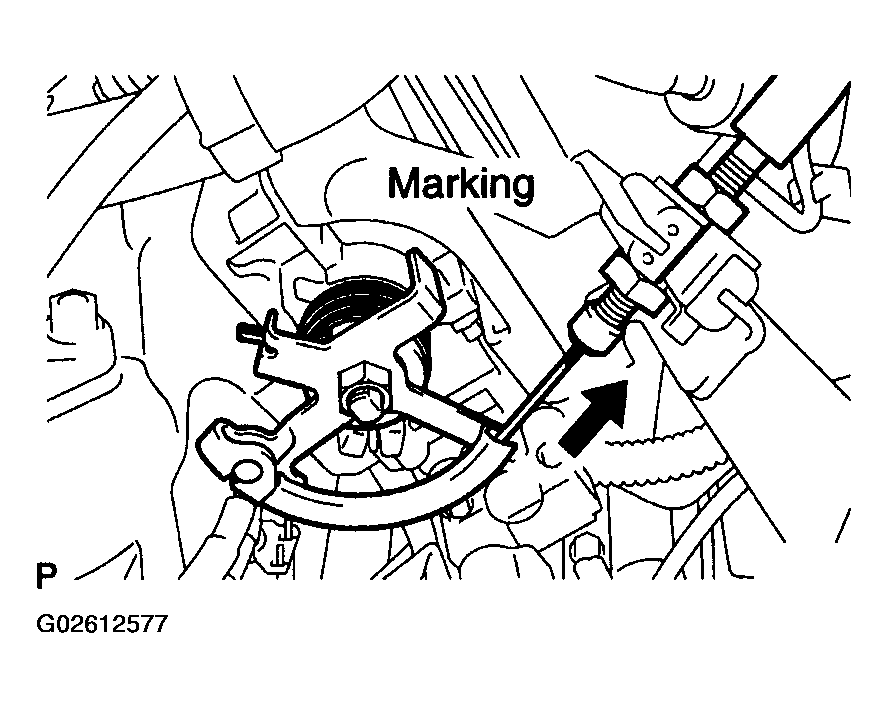

  Fig 1: Pushing Wire Into The Cable So As Not To Move The Throttle Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the wire and check the moved distance of the mark.
  Standard: 2 to 4 mm (0.079 to 0.158 in.)

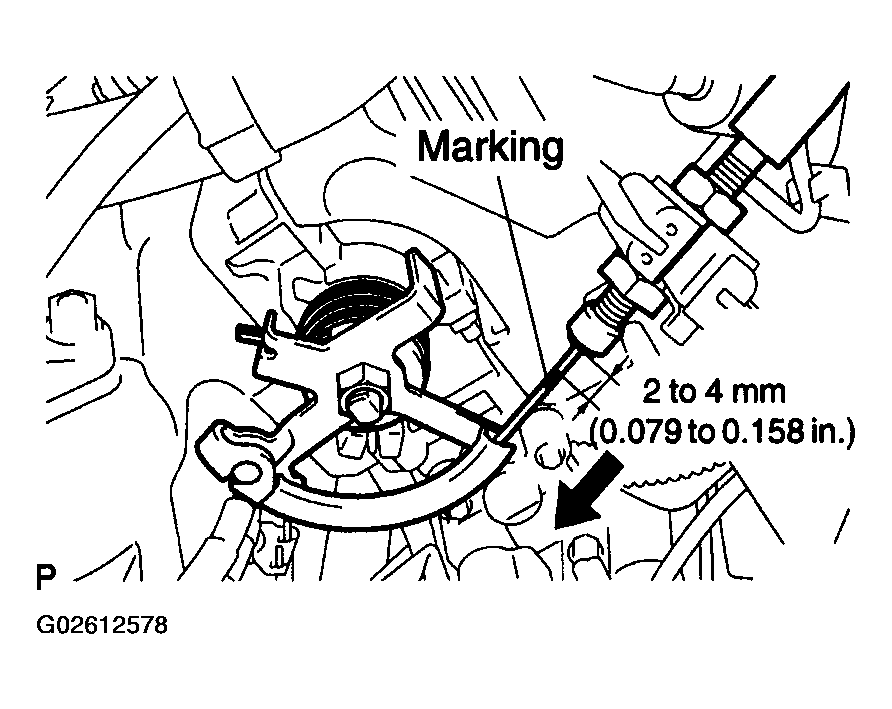

Fig 2: Pulling Wire And Checking Moved Distance Of Mark
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR AUTO DRIVE CABLE ASSY
1. Loosen the 2 nuts.
2. Adjust the play to the standard value.
  Standard: 2 to 4 mm (0.079 to 0.158 in.)

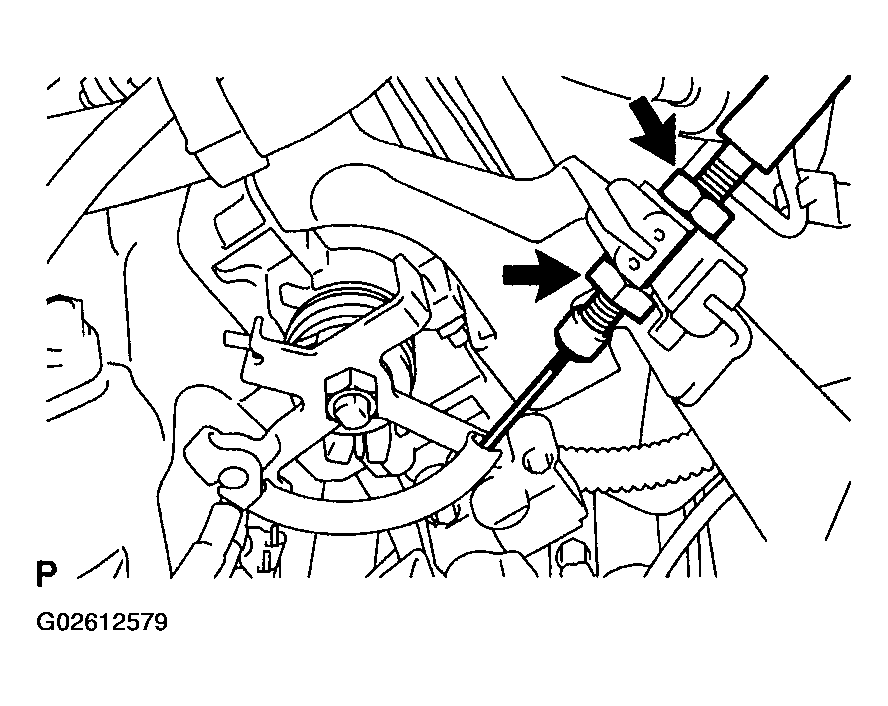

Fig 3: Loosening The 2 Cable Locks Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR CONTROL CABLE ASSY
1. Remove the cruise control actuator cover.
2. Adjust the play in the accelerator control cable assy by changing the 2 nuts position.

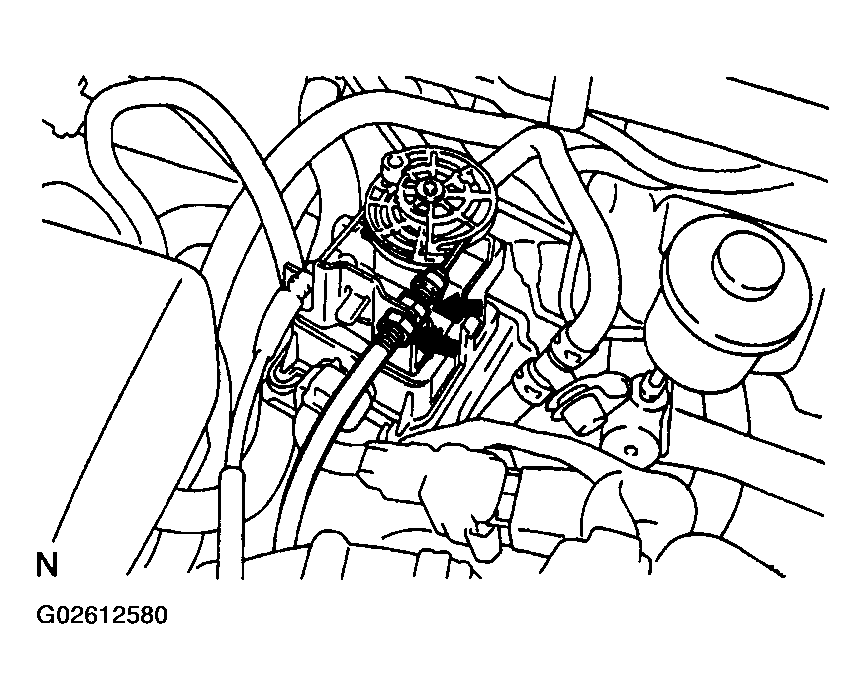

Fig 4: Removing Cruise Control Actuator Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
