SFI System: Injector: Installation

1. Install a new grommet to each injector.
2. Apply a light coat of spindle oil or gasoline to new O-ring and install them to each injector.

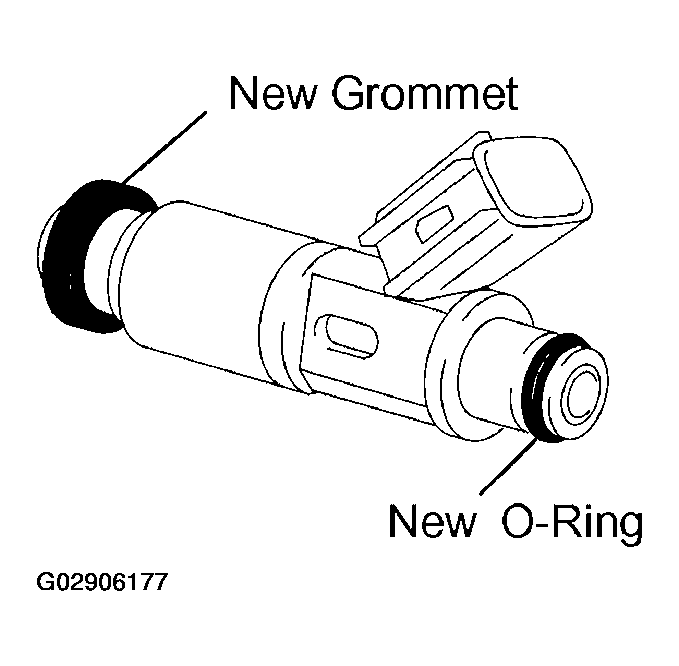

   Fig 1: Installing Grommet To Injector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply a light coat of spindle oil or gasoline on the area where the delivery pipe touches the O-ring.
4. While turning the injector clockwise and counterclockwise, push it into the delivery pipes. Install the 4 injectors.
5. Position the injector connector outward.
6. Place the 2 spacers in position on the cylinder head.

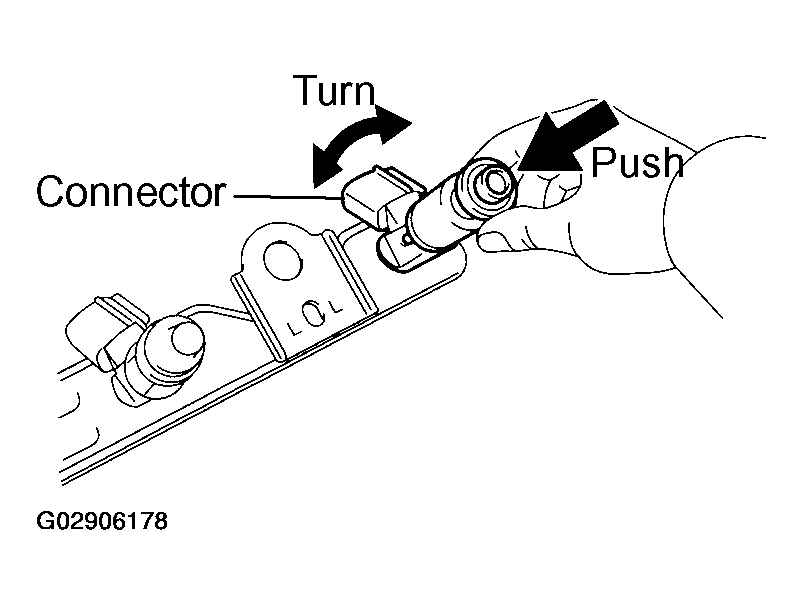

   Fig 2: Installing Injectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Apply a light coat of spindle oil or gasoline on the area where the cylinder head touches the injector grommet.
8. Place the delivery pipe and fuel pipe together with the 4 injectors in position on the cylinder head.
9. Temporarily install the 2 bolts holding the delivery pipe to the cylinder head.
10. Temporarily install the bolt holding the fuel pipe to the cylinder head.

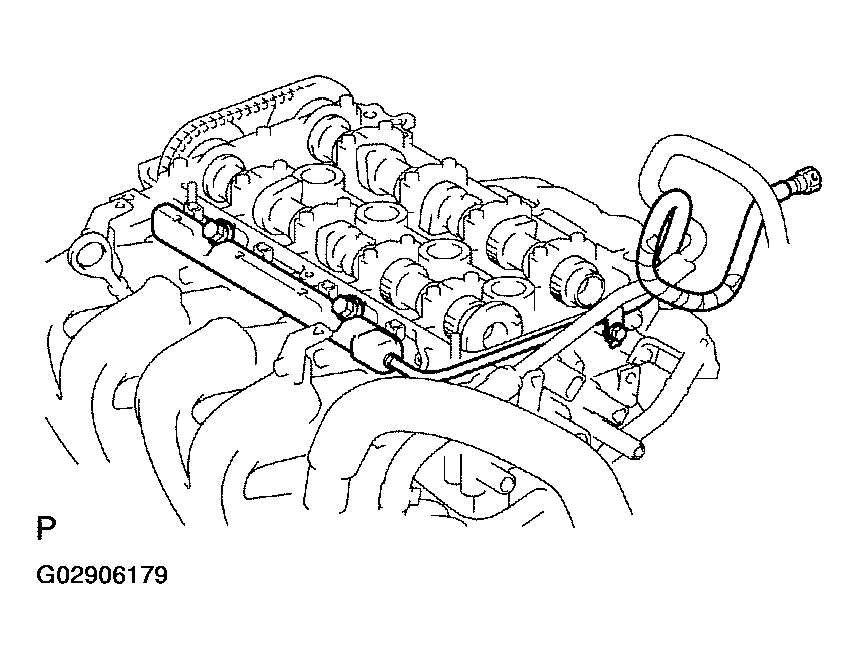

    Fig 3: Placing Delivery Pipe And Fuel Pipe

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. Check that the injectors rotate smoothly.

    HINT:

    If the injectors do not rotate smoothly, the probable cause is incorrect installation of the O-ring. Replace the O-ring.

12. Position the injector connector outward.

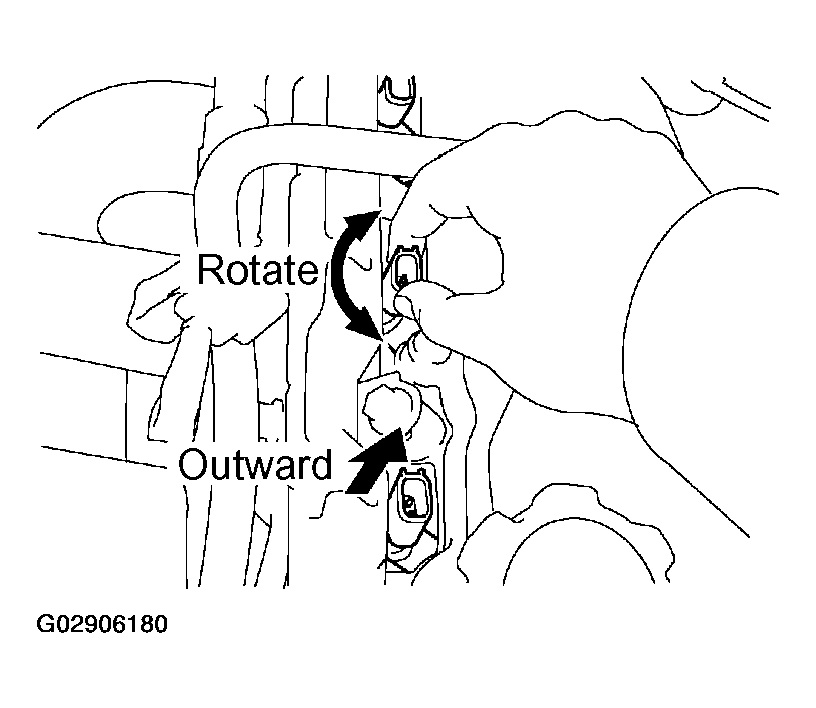

    Fig 4: Checking Injectors

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. Tighten the 2 bolts holding the delivery pipe to the cylinder head.

    Torque: 19 N.m (190 kgf.cm, 14 ft.lbf)

14. Tighten the bolt holding the fuel pipe to the cylinder head.

    Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)

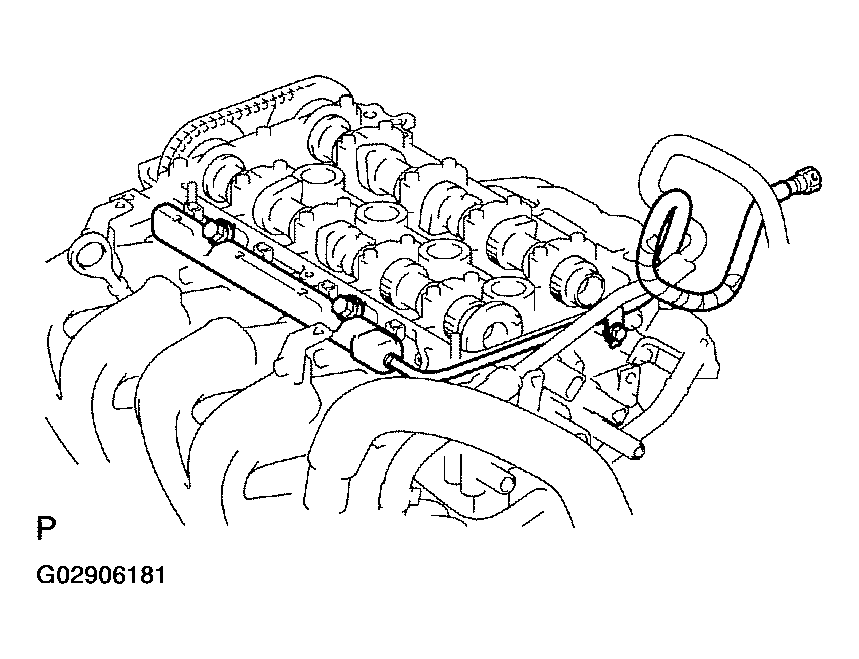

    Fig 5: Installing Delivery Pipe To Cylinder Head

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the fuel tube (fuel tube connector) to the fuel pipe.
   CAUTION: Perform connecting operations of the connector (quick type) after observing the precautions.
2. Install the fuel pipe clamp.

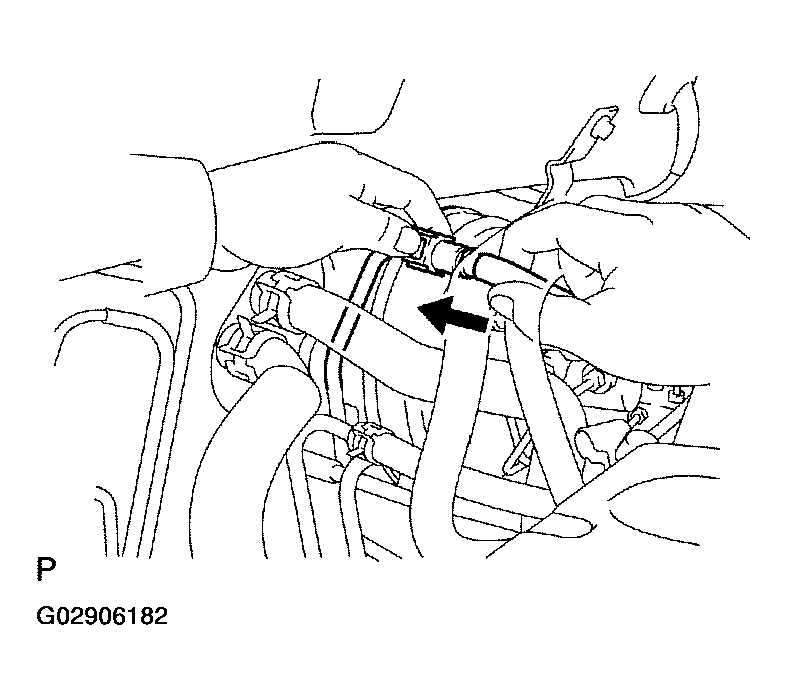

   Fig 6: Connecting Fuel Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the wire harness protector cover with the bolt and the 2 nuts.
2. Connect the PCV hose to the cylinder head cover.

Connect high-tension cords to ignition coils.
